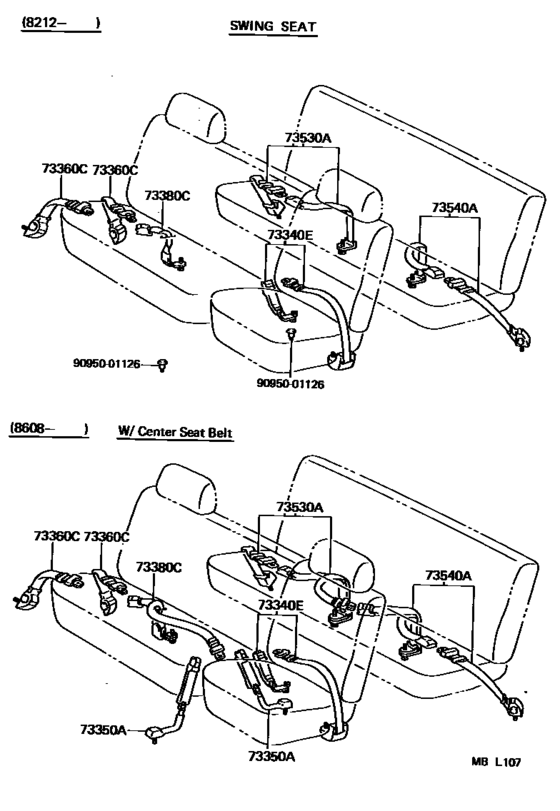

Seat Belt ([12.1982 - ] (8212- )CTM,SCM) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73340E
|
73340E
73340-95J03-04
Belt Assy, Rear No.1 Seat Lap Type, Lh
[01.1984 - 08.1985] LH51,YH51..CTM,SCM SWING SEAT,BLUE GRAY,BLUE |
73340-95J03-04 |
— | ||
|
73340E
|
73340E
73340-95J03-06
Belt Assy, Rear No.1 Seat Lap Type, Lh
[01.1984 - 08.1985] LH51,YH51..CTM,SCM SWING SEAT,BROWN,BROWN |
73340-95J03-06 |
— | ||
|
73340E
|
73340E
73340-95J06-04 Belt Assy, Rear No.1 Seat Lap Type, Lh[08.1985 - 08.1987] LH51,YH51..CTM,SCM BLUE,BLUE |
73340-95J06-04 |
US $243.15 |
||
|
73340E
|
73340E
73340-95J06-06 Belt Assy, Rear No.1 Seat Lap Type, Lh[08.1985 - 08.1987] LH51,YH51..08S BROWN,BROWN |
73340-95J06-06 |
US $243.15 |
||
|
73340E
|
73340E
73340-95J08-06 Belt Assy, Rear No.1 Seat Lap Type, Lh[08.1986 - 08.1987] LH51,YH51..WG..(DLX,SCM) W/CENTER SEAT BELT,BROWN,BROWN |
73340-95J08-06 |
US $208.21 |
||
|
73350A
|
73350A
73350-95J02-04 Belt Assy, Rear No.1 Seat Lap Type, Center[08.1986 - 08.1987] LH51,YH51..CTM,SCM LH,BLUE,BLUE |
73350-95J02-04 |
US $88.82 |
||
|
73350A
|
73350A
73350-95J02-06 Belt Assy, Rear No.1 Seat Lap Type, Center[08.1986 - 08.1987] LH51,YH51..08S LH,BROWN,BROWN |
73350-95J02-06 |
US $88.82 |
||
|
73350A
|
73350A
73350-95J03-04 Belt Assy, Rear No.1 Seat Lap Type, Center[08.1986 - 08.1987] LH51,YH51..CTM,SCM RH,BLUE,BLUE |
73350-95J03-04 |
US $88.82 |
||
|
73350A
|
73350A
73350-95J03-06 Belt Assy, Rear No.1 Seat Lap Type, Center[08.1986 - 08.1987] LH51,YH51..08S RH,BROWN,BROWN |
73350-95J03-06 |
US $88.82 |
||
|
73350A
|
73350A
73350-95J04-06 Belt Assy, Rear No.1 Seat Lap Type, Center[08.1986 - 08.1987] LH51,YH61..WG BROWN,BROWN |
73350-95J04-06 |
US $51.40 |
||
|
73360C
|
73360C
73301-95J04-04
Belt Assy, Rear No.1 Seat, Outer Rh
[01.1984 - 08.1985] LH51,YH51..08S RR,BLUE GRAY,BLUE |
73301-95J04-04 |
— | ||
|
73360C
|
73360C
73301-95J04-06
Belt Assy, Rear No.1 Seat, Outer Rh
[01.1984 - 08.1985] LH51,YH51..08S RR,BROWN,BROWN |
73301-95J04-06 |
— | ||
|
73360C
|
73360C
73301-95J05-04
Belt Assy, Rear No.1 Seat, Outer Rh
[01.1984 - 08.1985] LH51,YH51..08S FR,BLUE GRAY,BLUE |
73301-95J05-04 |
— | ||
|
73360C
|
73360C
73301-95J05-06
Belt Assy, Rear No.1 Seat, Outer Rh
[01.1984 - 08.1985] LH51,YH51..08S FR,BROWN,BROWN |
73301-95J05-06 |
— | ||
|
73360C
|
73360C
73360-95J03-04 Belt Assy, Rear No.1 Seat, Outer Rh[08.1985 - 08.1987] LH51,YH51..08S RR,BLUE,BLUE |
73360-95J03-04 |
US $180.54 |
||
|
73360C
|
73360C
73360-95J03-06 Belt Assy, Rear No.1 Seat, Outer Rh[08.1985 - 08.1987] LH51,YH51..08S RR,BROWN,BROWN |
73360-95J03-06 |
US $180.54 |
||
|
73360C
|
73360C
73360-95J04-04 Belt Assy, Rear No.1 Seat, Outer Rh[08.1985 - 08.1987] LH51,YH51..08S FR,BLUE,BLUE |
73360-95J04-04 |
US $180.54 |
||
|
73360C
|
73360C
73360-95J04-06 Belt Assy, Rear No.1 Seat, Outer Rh[08.1985 - 08.1987] LH51,YH51..08S FR,BROWN,BROWN |
73360-95J04-06 |
US $180.54 |
||
|
73380C
|
73380C
73302-95J01-04
Belt Assy, Rear No.1 Seat, Inner Rh
[01.1984 - 08.1985] LH51,YH51..CTM,SCM SWING SEAT,BLUE GRAY,BLUE |
73302-95J01-04 |
— | ||
|
73380C
|
73380C
73302-95J01-06
Belt Assy, Rear No.1 Seat, Inner Rh
[01.1984 - 08.1985] LH51,YH51..CTM,SCM SWING SEAT,BROWN,BROWN |
73302-95J01-06 |
— | ||
|
73380C
|
73380C
73380-95J02-04 Belt Assy, Rear No.1 Seat, Inner Rh[08.1985 - 08.1987] LH51,YH51..CTM,SCM BLUE,BLUE |
73380-95J02-04 |
US $74.26 |
||
|
73380C
|
73380C
73380-95J02-06
Belt Assy, Rear No.1 Seat, Inner Rh
[08.1985 - 08.1987] LH51,YH51..08S BROWN,BROWN |
73380-95J02-06 |
— | ||
|
73380C
|
73380C
73380-95J05-04 Belt Assy, Rear No.1 Seat, Inner Rh[08.1986 - 08.1987] LH51,YH51..CTM,SCM W/CENTER SEAT BELT,BLUE,BLUE |
73380-95J05-04 |
US $136.86 |
||
|
73380C
|
73380C
73380-95J05-06 Belt Assy, Rear No.1 Seat, Inner Rh[08.1986 - 08.1987] LH51,YH51..08S W/CENTER SEAT BELT,BROWN,BROWN |
73380-95J05-06 |
US $136.86 |
||
|
73530A
|
73530A
73430-95J01-04 Belt Assy, Rear No.2 Seat Lap Type, Rh[01.1984 - 08.1985] LH51,YH51..WG BLUE GRAY,BLUE |
73430-95J01-04 |
US $250.43 |
||
|
73530A
|
73530A
73430-95J01-06
Belt Assy, Rear No.2 Seat Lap Type, Rh
[01.1984 - 08.1985] LH51,YH51..CTM,SCM BROWN,BROWN |
73430-95J01-06 |
— | ||
|
73530A
|
73530A
73530-95J03-04
Belt Assy, Rear No.2 Seat Lap Type, Rh
[08.1985 - 08.1987] LH51,YH51..CTM,SCM BLUE,BLUE |
73530-95J03-04 |
— | ||
|
73530A
|
73530A
73530-95J03-06
Belt Assy, Rear No.2 Seat Lap Type, Rh
[08.1985 - 08.1987] LH51,YH51..WG..(DLX,SCM) BROWN,BROWN |
73530-95J03-06 |
— | ||
|
73530A
|
73530A
73530-95J07-04 Belt Assy, Rear No.2 Seat Lap Type, Rh[08.1986 - 08.1987] LH51,YH51..CTM,SCM W/CENTER SEAT BELT,BLUE,BLUE |
73530-95J07-04 |
US $168.90 |
||
|
73530A
|
73530A
73530-95J07-06 Belt Assy, Rear No.2 Seat Lap Type, Rh[08.1986 - 08.1987] LH51,YH51..WG..(DLX,SCM) W/CENTER SEAT BELT,BROWN,BROWN |
73530-95J07-06 |
US $168.90 |
||
|
73530A
|
73530A
73530-95J09-06 Belt Assy, Rear No.2 Seat Lap Type, Rh[08.1986 - 08.1987] LH51,YH61..WG W/CENTER SEAT BELT,BROWN,BROWN |
73530-95J09-06 |
US $206.75 |
||
|
73540A
|
73540A
73430-95J01-04 Belt Assy, Rear No.2 Seat Lap Type, Rh[01.1984 - 08.1985] LH51,YH51..WG BLUE GRAY,BLUE |
73430-95J01-04 |
US $250.43 |
||
|
73540A
|
73540A
73430-95J01-06
Belt Assy, Rear No.2 Seat Lap Type, Rh
[01.1984 - 08.1985] LH51,YH51..CTM,SCM BROWN,BROWN |
73430-95J01-06 |
— | ||
|
73540A
|
73540A
73530-95J03-04
Belt Assy, Rear No.2 Seat Lap Type, Rh
[08.1985 - 08.1987] LH51,YH51..CTM,SCM BLUE,BLUE |
73530-95J03-04 |
— | ||
|
73540A
|
73540A
73530-95J03-06
Belt Assy, Rear No.2 Seat Lap Type, Rh
[08.1985 - 08.1987] LH51,YH51..WG..(DLX,SCM) BROWN,BROWN |
73530-95J03-06 |
— | ||
|
73540A
|
73540A
73540-95J03-04 Belt Assy, Rear No.2 Seat Lap Type, Lh[08.1986 - 08.1987] LH51,YH51..CTM,SCM W/CENTER SEAT BELT,BLUE,BROWN |
73540-95J03-04 |
US $343.62 |
||
|
73540A
|
73540A
73540-95J03-06 Belt Assy, Rear No.2 Seat Lap Type, Lh[08.1986 - 08.1987] LH51,YH51..WG..(DLX,SCM) W/CENTER SEAT BELT,BROWN,BROWN |
73540-95J03-06 |
US $343.62 |
||
|
73540A
|
73540A
73540-95J05-06 Belt Assy, Rear No.2 Seat Lap Type, Lh[08.1986 - 08.1987] LH51,YH61..WG W/CENTER SEAT BELT,BROWN,BROWN |
73540-95J05-06 |
US $173.26 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
