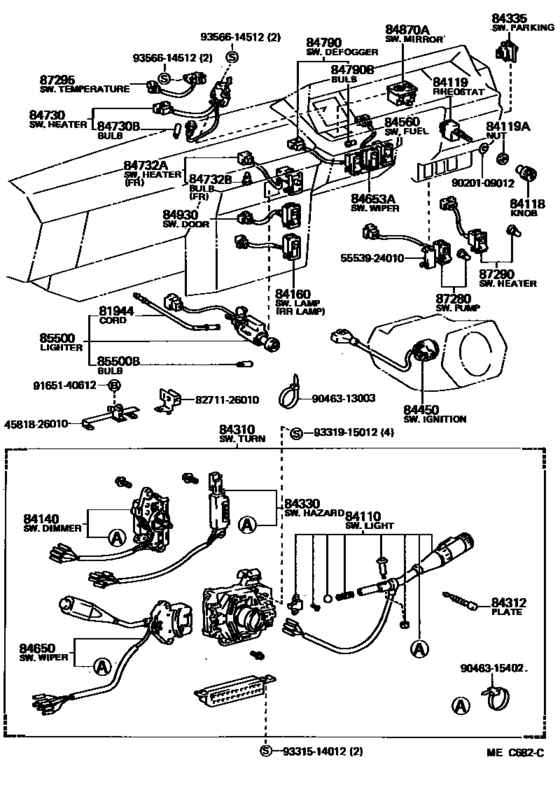

Switch & Relay & Computer ([12.1982 - ] (8212- )) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81944
|
81944
81944-20030 Cord, Optical Fiber[12.1982 - 08.1987] LH5#,6#,7#,YH50,51,61..CTM,GL,SCL,SCM |
81944-20030 |
US $17.91 |
||
|
84110
|
84110
84112-29345
Switch Assy, Light Control, No.1
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
84112-29345 |
— | ||
|
84140
|
84140
84140-29185 Switch Assy, Headlamp Dimmer[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
84140-29185 |
US $65.96 |
||
|
84160
|
84160
84172-95J04 Switch Assy, Room Lamp[12.1982 - 08.1987] LH50,51,YH51..CTM,SCL,SCM FR ROOM LAMP |
84172-95J04 |
US $65.67 |
||
|
84310
|
84310
84310-26100
Switch Assy, Turn Signal
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
84310-26100 |
— | ||
|
84312
|
84312
84312-20011 Plate, Horn Contact[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
84312-20011 |
from US $4.82 |
||
|
84330
|
84330
84332-29175 Switch Assy, Hazard Warning Signal[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
84332-29175 |
US $59.84 |
||
|
84335
|
84335
84330-95J00 Switch Assy, Parking Lamp[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
84330-95J00 |
US $38.44 |
||
|
84450
|
84450
84450-26040 Switch Assy, Ignition Or Starter[08.1985 - 08.1987] YH51,61,71..V;LH5#,6#,71,YH50 |
84450-26040 |
US $58.53 |
||
|
84450
|
84450
84450-30131 Switch Assy, Ignition Or Starter[12.1982 - 08.1985] YH61,71..V;LH5#,6#,7#,YH50 |
84450-30131 |
US $61.88 |
||
| replacement | |||||
|
84450
|
84450
84450-26040 Switch Assy, Ignition Or Starter[12.1982 - 08.1985] YH61,71..V;LH5#,6#,7#,YH50 |
84450-26040 |
US $58.53 |
||
|
84650
|
84650
84652-29685
Switch Assy, Windshield Wiper
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
84652-29685 |
— | ||
|
84653A
|
84653A
84653-14050 Switch, Rear Wiper[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM |
84653-14050 |
US $73.56 |
||
|
84730
|
84730
84732-95J00 Switch Assy, Heater Blower[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 FR HEATER |
84732-95J00 |
US $58.24 |
||
| replacement | |||||
|
84730
|
84730
84732-95J02
Switch Assy, Heater Blower
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 FR HEATER |
84732-95J02 |
— | ||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 １４Ｖ １．４Ｗ |
90981-11014 |
from US $2.15 |
||
|
84732A
|
84732A
84730-95J00 Switch Assy, Heater Blower[12.1982 - 08.1987] LH50,51,60,61,7#,YH51,61,71..COM,WG FR(INSTRUMENT PANEL); LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S) FR(INSTRUMENT PANEL) |
84730-95J00 |
US $71.64 |
||
|
84732A
|
84732A
84730-95J02 Switch Assy, Heater Blower[12.1982 - 08.1987] LH50,51,60,61,7#,YH51,61,71..COM,WG RR,NO.1; LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S) RR,NO.1 |
84730-95J02 |
US $71.64 |
||
| replacement | |||||
|
84732A
|
84732A
84730-95J01 Switch, Rear Heater Blower[12.1982 - 08.1987] LH50,51,60,61,7#,YH51,61,71..COM,WG RR,NO.1; LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S) RR,NO.1 |
84730-95J01 |
US $71.20 |
||
|
84732A
|
84732A
84732-95703 Switch Assy, Heater Blower[12.1982 - 08.1987] LH50,51,60,61,7#,YH51,61,71..COM,WG RR,NO.2; LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S) RR,NO.2 |
84732-95703 |
US $39.60 |
||
|
84732B
|
84732B
90981-11024 Bulb (For Column Shift Position Indicator Lamp)[12.1982 - 08.1987] LH50,51,60,61,7#,YH51,61,71..COM,WG １２Ｖ １．４Ｗ,フロント; LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S) １２Ｖ １．４Ｗ,フロント; LH50,51,60,61,7#,YH51,61,71..COM,WG １２Ｖ １．４Ｗ,RR,NO.1; LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S) １２Ｖ １．４Ｗ,RR,NO.1 |
90981-11024 |
US $5.38 |
||
|
84790
|
84790
84790-14150 Switch Assy, Rear Window Defogger[12.1982 - 08.1987] LH5#,6#,7# W/TIMER; YH51,61..WG..(CTM,DLX,SCL,SCM) W/TIMER |
84790-14150 |
US $55.62 |
||
|
84790B
|
84790B
84999-10170 Bulb, Indicator Lamp[12.1982 - 08.1987] LH5#,6#,7# １２Ｖ １．１２Ｗ,W/*RWD TIMER SW; YH51,61..WG..(CTM,DLX,SCL,SCM) １２Ｖ １．１２Ｗ,W/*RWD TIMER SW |
84999-10170 |
US $7.88 |
||
|
84870A
|
84870A
84870-95J00
Switch Assy, Outer Mirror
[12.1982 - 08.1987] LH50,51,YH51..07S,08S |
84870-95J00 |
— | ||
|
84930
|
84930
84930-95J00 Switch Assy, Door Control[01.1984 - 08.1987] LH51,YH51..07S,08S; LH5#,6#,YH50,51,61..GL |
84930-95J00 |
US $59.26 |
||
| replacement | |||||
|
84930
|
84930
84930-95702 Switch Assy, Door Control[01.1984 - 08.1987] LH51,YH51..07S,08S; LH5#,6#,YH50,51,61..GL |
84930-95702 |
US $51.98 |
||
|
85500
|
85500
85500-95J01 Lighter Assy, Cigarette[12.1982 - 08.1987] LH5#,6#,7#,YH50,51,61..CTM,GL,SCL,SCM |
85500-95J01 |
US $80.08 |
||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[12.1982 - 08.1987] LH5#,6#,7#,YH50,51,61..CTM,GL,SCL,SCM １４Ｖ １．４Ｗ |
90981-11014 |
from US $2.15 |
||
|
4581826010
|
4581826010
45818-26010 Bracket, Connector |
45818-26010 |
US $18.93 |
||
|
5553924010
|
5553924010
55539-24010
Cover, Spare Switch Hole
|
55539-24010 |
— | ||
|
8271126010
|
8271126010
82711-26010 Wire, Fuse To Fuse(for Combustion Heater) |
82711-26010 |
US $8.44 |
||
|
9020109012
|
9020109012
90201-09012 New Genuine Part |
90201-09012 |
US $1.60 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $3.23 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
