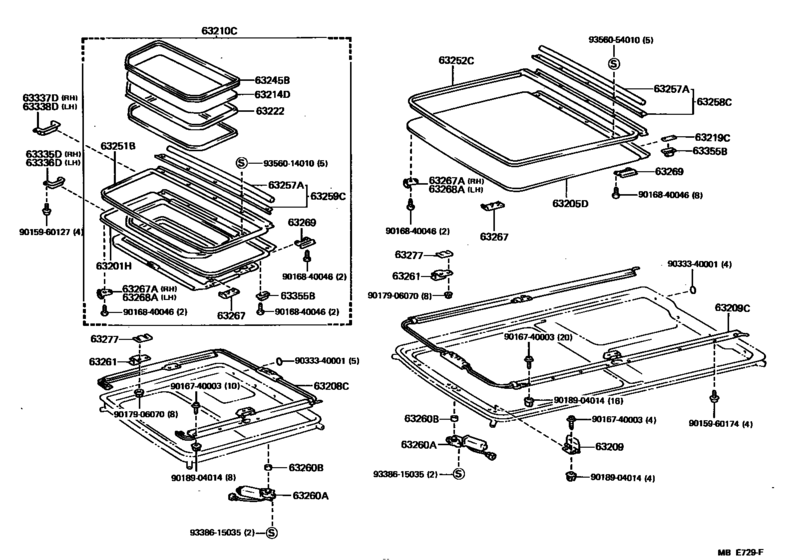

Roof Panel & Back Panel ([12.1982 - ] (8212- )MRF) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- MRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201H
|
63201H
63201-95J00 Panel Sub-Assy, Slide Roof[12.1982 - 08.1987] LH51,YH51..MRF..(07S,08S); LH50,51,YH51..MRF..(07S,08S) ｽﾗｲﾄﾞ ﾙ-ﾌ ﾊﾟﾈﾙ |
63201-95J00 |
US $352.35 |
||
|
63205D
|
63205D
63202-95J00
Housing Sub-Assy, Sliding Roof, Front
[07.1987 - 08.1987] LH51,YH51..MRF |
63202-95J00 |
— | ||
|
63205D
|
63205D
63205-95J00 Panel Sub-Assy, Slide Sun Roof, Rear[12.1982 - 08.1987] LH50,51,YH51..MRF |
63205-95J00 |
US $621.71 |
||
| replacement | |||||
|
63205D
|
63205D
63202-95J01 Panel Sub-Assy, Slide Roof, Rear[12.1982 - 08.1987] LH50,51,YH51..MRF |
63202-95J01 |
US $621.71 |
||
|
63208C
|
63208C
63208-95J00 Cable Sub-Assy, Sliding Roof Drive, Front[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) |
63208-95J00 |
US $1,186.64 |
||
|
63209
|
63209
63230-95700 Panel Sub-Assy, Roof Wind Deflector[12.1982 - 08.1987] LH50,51,YH51..MRF |
63230-95700 |
US $54.89 |
||
| replacement | |||||
|
63209
|
63209
63230-26010 Panel Assy, Roof Wind Deflector[12.1982 - 08.1987] LH50,51,YH51..MRF |
63230-26010 |
US $41.06 |
||
|
63209C
|
63209C
63209-95J00 Cable Sub-Assy, Sliding Roof Drive, Rear[12.1982 - 08.1987] LH50,51,YH51..MRF |
63209-95J00 |
US $1,470.56 |
||
|
63210C
|
63210C
63210-95J00 Panel Assy, Sliding Roof, Front[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) |
63210-95J00 |
US $1,703.52 |
||
|
63214D
|
63214D
63214-95J00
Glass, Sliding Roof, Front
[07.1987 - 08.1987] LH51,YH51..MRF |
63214-95J00 |
— | ||
|
63219C
|
63219C
63219-95J00 Plate, Sliding Roof Panel[08.1985 - 08.1987] LH51,YH51..MRF |
63219-95J00 |
US $4.08 |
||
|
63222
|
63222
67726-95J00 Packing, Slide Roof[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) |
67726-95J00 |
US $22.57 |
||
|
63245B
|
63245B
75567-95J00 Packing[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) |
75567-95J00 |
US $34.80 |
||
|
63251B
|
63251B
63251-95J00 Weatherstrip, Tilt Roof, Outer[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) |
63251-95J00 |
US $266.45 |
||
|
63252C
|
63252C
63252-95J00 Weatherstrip, Sliding Roof, Rear[12.1982 - 08.1987] LH50,51,YH51..MRF |
63252-95J00 |
US $385.84 |
||
|
63257A
|
63257A
63257-95J00 Insert, Latex Sponge[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) FR |
63257-95J00 |
US $38 |
||
| replacement | |||||
|
63257A
|
63257A
63257-95J01 Insert, Latex Sponge[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) FR |
63257-95J01 |
US $38 |
||
|
63257A
|
63257A
63257-95J01 Insert, Latex Sponge[12.1982 - 08.1987] LH50,51,YH51..MRF RR |
63257-95J01 |
US $38 |
||
|
63258C
|
63258C
63258-95J00 Holder, Sliding Roof Weatherstrip, Rear[12.1982 - 08.1987] LH50,51,YH51..MRF |
63258-95J00 |
US $38 |
||
|
63259C
|
63259C
63259-95J00 Holder, Sliding Roof Weatherstrip, Front[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) |
63259-95J00 |
US $62.17 |
||
|
63260A
|
63260A
63260-95703 Gear Sub-Assy, Sliding Roof Drive[12.1982 - 08.1987] LH50,51,YH51..07S,08S FR |
63260-95703 |
US $723.63 |
||
|
63260A
|
63260A
63260-95J00 Gear Sub-Assy, Sliding Roof Drive[12.1982 - 08.1987] LH50,51,YH51..CTM,SCL,SCM RR |
63260-95J00 |
US $621.71 |
||
|
63260B
|
63260B
85638-95701 Spacer, Sliding Roof Motor Drive[12.1982 - 08.1987] LH50,51,YH51..CTM,SCL,SCM |
85638-95701 |
US $12.67 |
||
|
63261
|
63261
63261-95J00 Shoe, Sliding Roof, Front[06.1983 - 08.1987] LH50,51,YH51..MRF RH |
63261-95J00 |
US $18.78 |
||
|
63261
|
63261
63262-95J00 Shoe, Sliding Roof, Front[06.1983 - 08.1987] LH50,51,YH51..MRF LH |
63262-95J00 |
US $18.78 |
||
|
63267
|
63267
63267-95701 Protector, Sliding Roof Weatherstrip[12.1982 - 08.1987] LH50,51,YH51..MRF |
63267-95701 |
US $8.59 |
||
|
63267A
|
63267A
63267-14010 Protector, Sliding Roof Weatherstrip[11.1984 - 08.1987] LH51,YH51..MRF |
63267-14010 |
US $7.72 |
||
|
63267A
|
63267A
63267-20010 Protector, Sliding Roof Weatherstrip[12.1982 - 11.1984] LH5#,YH51..MRF |
63267-20010 |
US $7.13 |
||
| replacement | |||||
|
63267A
|
63267A
63267-14010 Protector, Sliding Roof Weatherstrip[12.1982 - 11.1984] LH5#,YH51..MRF |
63267-14010 |
US $7.72 |
||
|
63268A
|
63268A
63268-14020 Protector, Sliding Roof Weatherstrip[11.1984 - 08.1987] LH51,YH51..MRF |
63268-14020 |
US $7.72 |
||
|
63268A
|
63268A
63268-20010 Protector, Sliding Roof Weatherstrip[12.1982 - 11.1984] LH5#,YH51..MRF |
63268-20010 |
US $7.13 |
||
| replacement | |||||
|
63268A
|
63268A
63268-14020 Protector, Sliding Roof Weatherstrip[12.1982 - 11.1984] LH5#,YH51..MRF |
63268-14020 |
US $7.72 |
||
|
63269
|
63269
63269-20010 Retainer, Sliding Roof Weatherstrip[12.1982 - 08.1987] LH50,51,YH51..MRF RH |
63269-20010 |
US $9.17 |
||
|
63269
|
63269
63279-20010 Retainer, Sliding Roof Weatherstrip[12.1982 - 08.1987] LH50,51,YH51..MRF LH |
63279-20010 |
US $9.17 |
||
|
63277
|
63277
63277-95701 Shim, Sliding Roof Rail[12.1982 - 08.1987] LH50,51,YH51..MRF |
63277-95701 |
US $4.08 |
||
|
63335D
|
63335D
63335-95J00 Garnish, Roof Headlining, Front Rh[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) |
63335-95J00 |
US $4.37 |
||
|
63336D
|
63336D
63336-95J00 Garnish, Roof Headlining, Front Lh[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) |
63336-95J00 |
US $4.37 |
||
|
63337D
|
63337D
63337-95J00 Garnish, Roof Headlining, Rear Rh[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) |
63337-95J00 |
US $5.24 |
||
|
63338D
|
63338D
63338-95J00 Garnish, Roof Headlining, Rear Lh[12.1982 - 08.1987] LH50,51,YH51..MRF..(07S,08S) |
63338-95J00 |
US $5.24 |
||
|
63355B
|
63355B
63355-95J00 Cap, Sliding Roof[12.1982 - 08.1987] LH50,51,YH51..MRF |
63355-95J00 |
US $8.74 |
||
|
9015960127
|
9015960127
90159-60127 New Genuine Part |
90159-60127 |
US $0.87 |
||
|
9015960174
|
9015960174
90159-60174 New Genuine Part |
90159-60174 |
US $2.33 |
||
|
9016740003
|
9016740003
90167-40003 New Genuine Part |
90167-40003 |
US $1.75 |
||
| replacement | |||||
|
9016740003
|
9016740003
93568-54516 SCREW TAPPING |
93568-54516 |
US $1.76 |
||
|
9016840046
|
9016840046
90168-40046 New Genuine Part |
90168-40046 |
US $1.75 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $1.03 |
||
|
9033340001
|
9033340001
90333-40001 Plate, Noise Control, No.1 |
90333-40001 |
from US $1.60 |
||
|
9338615035
|
9338615035
93386-15035 New Genuine Part |
93386-15035 |
US $1.75 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.12 |
||
