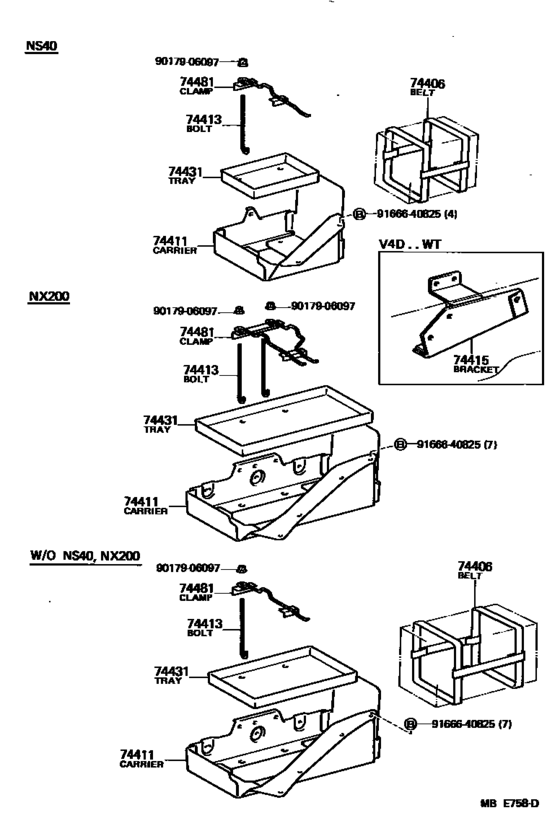

Battery Carrier ([12.1982 - ] (8212- )) Diagram Toyota HIACE
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1985
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74406
|
74406
74446-95A02 Belt Sub-Assy, Battery[02.1983 - 07.1987] LH5#,6#,7# W/O NS40,NX200 |
74446-95A02 |
US $4.22 |
||
|
74411
|
74411
74410-95J01 Carrier, Battery[12.1982 - 08.1987] LH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;LH7#,YH51,52,62,71..03S,06S,07S,08 S,09S,15S W/O NS40 |
74410-95J01 |
US $120.85 |
||
|
74413
|
74413
74451-95J00 Bolt, Battery Clamp[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
74451-95J00 |
US $11.29 |
||
|
74431
|
74431
74431-95J00 Tray, Battery[12.1982 - 08.1987] LH5#,6#,7# NX200 |
74431-95J00 |
US $24.17 |
||
|
74431
|
74431
74431-95J01
Tray, Battery
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 W/O NS40,NX200 |
74431-95J01 |
— | ||
|
74481
|
74481
74404-95J01 Clamp, Battery Hold Down[12.1982 - 08.1987] LH5#,6#,7# NX200 |
74404-95J01 |
US $31.89 |
||
|
74481
|
74481
74404-95J02
Clamp, Battery Hold Down
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 W/O NS40,NX200 |
74404-95J02 |
— | ||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9166640825
|
9166640825
91666-40825
New Genuine Part
|
91666-40825 |
— | ||
| replacement | |||||
|
9166640825
|
9166640825
91661-60825 New Genuine Part |
91661-60825 |
US $2.69 |
||
