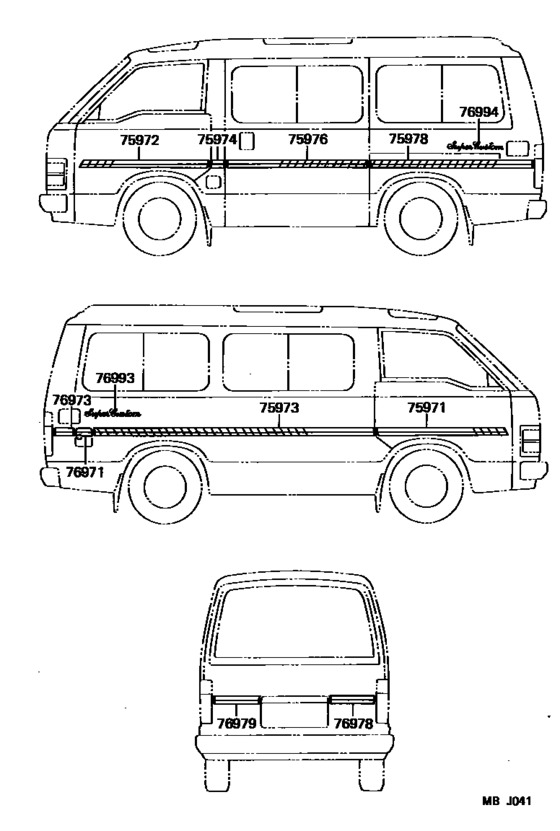

Body Stripe ([02.1985 - 02.1985] (8502-8502)) Diagram Toyota HIACE
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1985
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75971
|
75971
75985-95J02-04 Stripe, Side, Rh No.1[12.1982 - 08.1985] LH5#,YH51..08S BLUE,BLUE/ORANGE |
75985-95J02-04 |
US $69.60 |
||
|
75971
|
75971
75985-95J12-04 Stripe, Side, Rh No.1[08.1985 - 08.1987] LH51,YH51..08S BLUE,BLUE |
75985-95J12-04 |
US $115.02 |
||
|
75971
|
75971
75985-95J12-06 Stripe, Side, Rh No.1[08.1985 - 08.1987] LH51,YH51..08S BROWN,GOLD |
75985-95J12-06 |
US $115.02 |
||
|
75971
|
75971
75985-95J13 Stripe, Side, Rh No.1[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75985-95J13 |
US $90.27 |
||
|
75972
|
75972
75986-95J02-04 Stripe, Side, Lh No.1[12.1982 - 08.1985] LH5#,YH51..08S BLUE,BLUE/ORANGE |
75986-95J02-04 |
US $69.60 |
||
|
75972
|
75972
75986-95J12-04 Stripe, Side, Lh No.1[08.1985 - 08.1987] LH51,YH51..08S BLUE,BLUE |
75986-95J12-04 |
US $115.02 |
||
|
75972
|
75972
75986-95J12-06 Stripe, Side, Lh No.1[08.1985 - 08.1987] LH51,YH51..08S BROWN,GOLD |
75986-95J12-06 |
US $115.02 |
||
|
75972
|
75972
75986-95J13 Stripe, Side, Lh No.1[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75986-95J13 |
US $90.27 |
||
|
75973
|
75973
75994-95J02 Stripe, Side, Rh No.2[12.1982 - 08.1985] LH5#,YH51..08S |
75994-95J02 |
US $227.14 |
||
|
75973
|
75973
75994-95J09-04 Stripe, Side, Rh No.2[08.1985 - 08.1987] LH51,YH51..08S..(CBR,DSL) BLUE,BLUE |
75994-95J09-04 |
US $238.78 |
||
|
75973
|
75973
75994-95J09-06 Stripe, Side, Rh No.2[08.1985 - 08.1987] LH51,YH51..08S..(CBR,DSL) BROWN,GOLD |
75994-95J09-06 |
US $238.78 |
||
|
75973
|
75973
75994-95J10 Stripe, Side, Rh No.2[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75994-95J10 |
US $251.89 |
||
|
75974
|
75974
75941-95J02-04 Stripe, Center Pillar, Lh No.2[12.1982 - 08.1985] LH5#,YH51..08S BLUE,BLUE/ORANGE |
75941-95J02-04 |
US $14.41 |
||
|
75974
|
75974
75941-95J04 Stripe, Center Pillar, Lh No.2[05.1984 - 06.1984] LH51,YH51..08S LIVING SALOON EX |
75941-95J04 |
US $28.39 |
||
|
75974
|
75974
75941-95J05
Stripe, Center Pillar, Lh No.2
[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX |
75941-95J05 |
— | ||
|
75974
|
75974
75941-95J11-04 Stripe, Center Pillar, Lh No.2[08.1985 - 08.1987] LH51,YH51..08S BLUE,BLUE |
75941-95J11-04 |
US $21.55 |
||
|
75974
|
75974
75941-95J11-06 Stripe, Center Pillar, Lh No.2[08.1985 - 08.1987] LH51,YH51..08S BROWN,GOLD |
75941-95J11-06 |
US $21.55 |
||
|
75974
|
75974
75941-95J12 Stripe, Center Pillar, Lh No.2[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75941-95J12 |
US $13.25 |
||
|
75976
|
75976
75983-95J02-04 Stripe, Side, Lh Upr[12.1982 - 08.1985] LH5#,YH51..08S BLUE,BLUE/ORANGE |
75983-95J02-04 |
US $116.48 |
||
|
75976
|
75976
75983-95J12-04 Stripe, Side, Lh Upr[08.1985 - 08.1987] LH51,YH51..08S BLUE,BLUE |
75983-95J12-04 |
US $116.48 |
||
|
75976
|
75976
75983-95J12-06 Stripe, Side, Lh Upr[08.1985 - 08.1987] LH51,YH51..08S BROWN,GOLD |
75983-95J12-06 |
US $116.48 |
||
|
75976
|
75976
75983-95J13 Stripe, Side, Lh Upr[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75983-95J13 |
US $126.67 |
||
|
75978
|
75978
75992-95J02 Stripe, Side, Lh No.4[12.1982 - 08.1985] LH5#,YH51..08S |
75992-95J02 |
US $126.67 |
||
|
75978
|
75978
75992-95J12-04 Stripe, Side, Lh No.4[08.1985 - 08.1987] LH51,YH51..08S..(CBR,DSL) BLUE,BLUE |
75992-95J12-04 |
US $141.23 |
||
|
75978
|
75978
75992-95J12-06 Stripe, Side, Lh No.4[08.1985 - 08.1987] LH51,YH51..08S..(CBR,DSL) BROWN,GOLD |
75992-95J12-06 |
US $141.23 |
||
|
75978
|
75978
75992-95J13 Stripe, Side, Lh No.4[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75992-95J13 |
US $147.06 |
||
|
76971
|
76971
75994-95J04 Stripe, Side, Rh No.5[05.1984 - 06.1984] LH51,YH51..08S LIVING SALOON EX |
75994-95J04 |
US $21.40 |
||
|
76971
|
76971
75994-95J05 Stripe, Side, Rh No.5[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX |
75994-95J05 |
US $21.26 |
||
|
76971
|
76971
76993-95J01 Stripe, Side, Rh No.5[12.1982 - 08.1985] LH5#,YH51..08S |
76993-95J01 |
US $15.14 |
||
|
76971
|
76971
76993-95J09-04 Stripe, Side, Rh No.5[08.1985 - 08.1987] LH51,YH51..08S BLUE,BLUE |
76993-95J09-04 |
US $18.78 |
||
|
76971
|
76971
76993-95J09-06 Stripe, Side, Rh No.5[08.1985 - 08.1987] LH51,YH51..08S BROWN,GOLD |
76993-95J09-06 |
US $18.78 |
||
|
76971
|
76971
76993-95J10 Stripe, Side, Rh No.5[02.1985 - 02.1985] LH51,YH51..08S EVENT |
76993-95J10 |
US $13.25 |
||
|
76973
|
76973
75993-95J01-04 Stripe, Side, Rh No.6[12.1982 - 08.1985] LH5#,YH51..08S BLUE,BLUE/ORANGE |
75993-95J01-04 |
US $14.41 |
||
|
76973
|
76973
75993-95J11-04 Stripe, Side, Rh No.6[08.1985 - 08.1987] LH51,YH51..08S BLUE,BLUE |
75993-95J11-04 |
US $25.63 |
||
|
76973
|
76973
75993-95J11-06 Stripe, Side, Rh No.6[08.1985 - 08.1987] LH51,YH51..08S BROWN,GOLD |
75993-95J11-06 |
US $25.63 |
||
|
76973
|
76973
75993-95J12 Stripe, Side, Rh No.6[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75993-95J12 |
US $18.64 |
||
|
76973
|
76973
75998-95J00 Stripe, Side, Rh No.6[05.1984 - 06.1984] LH51,YH51..08S LIVING SALOON EX |
75998-95J00 |
US $42.08 |
||
|
76973
|
76973
75998-95J01 Stripe, Side, Rh No.6[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX |
75998-95J01 |
US $42.08 |
||
|
76978
|
76978
75946-95J01-04 Stripe, Rear Body Back, Rh[12.1982 - 08.1985] LH5#,YH51..08S BLUE,BLUE/ORANGE |
75946-95J01-04 |
US $55.76 |
||
|
76978
|
76978
75946-95J02 Stripe, Rear Body Back, Rh[05.1984 - 06.1984] LH51,YH51..08S LIVING SALOON EX,UPR |
75946-95J02 |
US $58.39 |
||
|
76978
|
76978
75946-95J03 Stripe, Rear Body Back, Rh[05.1984 - 06.1984] LH51,YH51..08S LIVING SALOON EX,LWR |
75946-95J03 |
US $45.86 |
||
|
76978
|
76978
75946-95J04
Stripe, Rear Body Back, Rh
[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX,UPR |
75946-95J04 |
— | ||
|
76978
|
76978
75946-95J05
Stripe, Rear Body Back, Rh
[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX,LWR |
75946-95J05 |
— | ||
|
76978
|
76978
75946-95J11 Stripe, Rear Body Back, Rh[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75946-95J11 |
US $39.46 |
||
|
76978
|
76978
75946-95J12-04 Stripe, Rear Body Back, Rh[08.1985 - 08.1987] LH51,YH51..08S BLUE,BLUE |
75946-95J12-04 |
US $51.98 |
||
|
76978
|
76978
75946-95J12-06 Stripe, Rear Body Back, Rh[08.1985 - 08.1987] LH51,YH51..08S BROWN,GOLD |
75946-95J12-06 |
US $51.98 |
||
|
76979
|
76979
75947-95J01-04 Stripe, Rear Body Back, Lh[12.1982 - 08.1985] LH5#,YH51..08S BLUE,BLUE/ORANGE |
75947-95J01-04 |
US $55.76 |
||
|
76979
|
76979
75947-95J02
Stripe, Rear Body Back, Lh
[05.1984 - 06.1984] LH51,YH51..08S LIVING SALOON EX,UPR |
75947-95J02 |
— | ||
|
76979
|
76979
75947-95J03 Stripe, Rear Body Back, Lh[05.1984 - 06.1984] LH51,YH51..08S LIVING SALOON EX,LWR |
75947-95J03 |
US $45.86 |
||
|
76979
|
76979
75947-95J04
Stripe, Rear Body Back, Lh
[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX,UPR |
75947-95J04 |
— | ||
|
76979
|
76979
75947-95J05
Stripe, Rear Body Back, Lh
[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX,LWR |
75947-95J05 |
— | ||
|
76979
|
76979
75947-95J11 Stripe, Rear Body Back, Lh[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75947-95J11 |
US $39.46 |
||
|
76979
|
76979
75947-95J12-04 Stripe, Rear Body Back, Lh[08.1985 - 08.1987] LH51,YH51..08S BLUE,BLUE |
75947-95J12-04 |
US $51.98 |
||
|
76979
|
76979
75947-95J12-06 Stripe, Rear Body Back, Lh[08.1985 - 08.1987] LH51,YH51..08S BROWN,GOLD |
75947-95J12-06 |
US $51.98 |
||
|
76993
|
76993
75995-95J00 Stripe, Side Mark, Rh No.2[05.1984 - 06.1984] LH51,YH51..08S LIVING SALOON EX |
75995-95J00 |
US $42.08 |
||
|
76993
|
76993
75995-95J02 Stripe, Side Mark, Rh No.2[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX |
75995-95J02 |
US $87.36 |
||
| replacement | |||||
|
76993
|
76993
75995-95J05 Stripe, Rear Body Back[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX |
75995-95J05 |
US $85.90 |
||
|
76993
|
76993
75995-95J03 Stripe, Side Mark, Rh No.2[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75995-95J03 |
US $75.71 |
||
|
76994
|
76994
75995-95J00 Stripe, Side Mark, Rh No.2[05.1984 - 06.1984] LH51,YH51..08S LIVING SALOON EX |
75995-95J00 |
US $42.08 |
||
|
76994
|
76994
75995-95J02 Stripe, Side Mark, Rh No.2[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX |
75995-95J02 |
US $87.36 |
||
| replacement | |||||
|
76994
|
76994
75995-95J05 Stripe, Rear Body Back[10.1984 - 10.1984] LH51,YH51..08S LIVING SALOON EX |
75995-95J05 |
US $85.90 |
||
|
76994
|
76994
75995-95J03 Stripe, Side Mark, Rh No.2[02.1985 - 02.1985] LH51,YH51..08S EVENT |
75995-95J03 |
US $75.71 |
||
