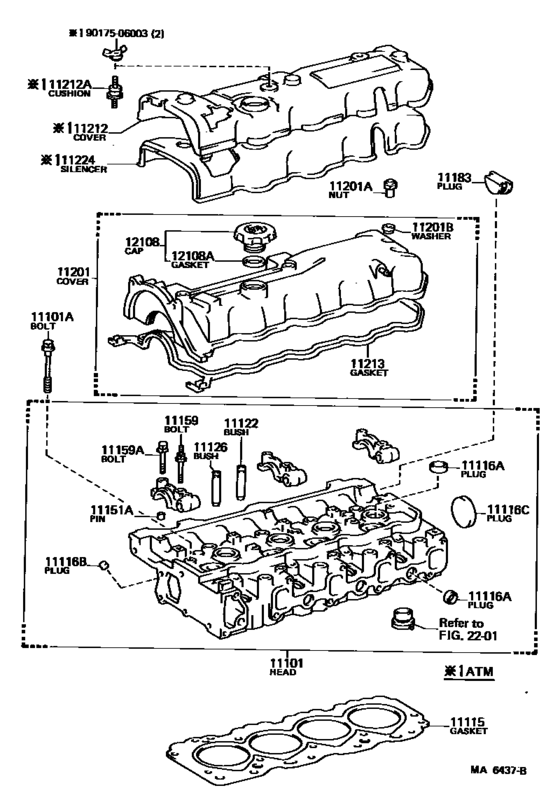

Cylinder Head ([12.1982 - 08.1985] (8212-8508)L,2L) Diagram Toyota HIACE
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1985
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-54050
Head Sub-Assy, Cylinder
[01.1984 - 08.1987] 2L..LH51,56,6#,71 |
11101-54050 |
— | ||
|
11101A
|
11101A
90910-02060
Bolt(For Cylinder Head Set)
[12.1982 - 08.1987] L,2L#..LH5#,6#,7# *12-1.25PX112-24 |
90910-02060 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02090 Bolt(For Cylinder Head Set)[12.1982 - 08.1987] L,2L#..LH5#,6#,7# *12-1.25PX112-24 |
90910-02090 |
US $5.91 |
||
|
11115
|
11115
11115-54020
Gasket, Cylinder Head
[01.1984 - 08.1987] 2L#..LH51,56,6#,71 |
11115-54020 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-54021 Gasket, Cylinder Head[01.1984 - 08.1987] 2L#..LH51,56,6#,71 |
11115-54021 |
from US $54.85 |
||
|
11116A
|
11116A
96411-42500 Plug, Tight, No.1[12.1982 - 08.1987] L,2L#..LH5#,6#,7# OD=25 |
96411-42500 |
from US $2.95 |
||
|
11116B
|
11116B
96411-41200 Plug, Tight, No.1[12.1982 - 08.1987] L,2L#..LH5#,6#,7# OD=12 |
96411-41200 |
US $3.58 |
||
|
11116C
|
11116C
96411-45000 Plug, Tight, No.1(For Cam Housing)[12.1982 - 08.1987] L,2L#..LH5#,6#,7# OD=50 |
96411-45000 |
from US $3.84 |
||
|
11122
|
11122
11122-54011
Bush, Intake Valve Guide
[12.1982 - 08.1987] L,2L#..LH5#,6#,7# ＳＴＤ,STD |
11122-54011 |
— | ||
|
11122
|
11122
11123-54011
Bush, Intake Valve Guide
[12.1982 - 08.1987] L,2L#..LH5#,6#,7# Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-54011 |
— | ||
|
11126
|
11126
11122-54011
Bush, Intake Valve Guide
[12.1982 - 08.1987] L,2L#..LH5#,6#,7# ＳＴＤ,STD |
11122-54011 |
— | ||
|
11126
|
11126
11123-54011
Bush, Intake Valve Guide
[12.1982 - 08.1987] L,2L#..LH5#,6#,7# Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-54011 |
— | ||
|
11151A
|
11151A
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[12.1982 - 08.1987] L,2L#..LH5#,6#,7# 長さ＝１１，外径＝１１,L=11,OD=11 |
90253-11001 |
US $2.15 |
||
|
11159
|
11159
90116-08137 Bolt, Stud(For Head To Camshaft Bearing Cap)[12.1982 - 08.1987] L,2L#..LH5#,6#,7# L=76.6,S=13&15 |
90116-08137 |
US $3.32 |
||
|
11159A
|
11159A
90119-08191 Bolt(For Head To Camshaft Bearing Cap)[12.1982 - 08.1987] L,2L#..LH5#,6#,7# *8-1.25PX55-30 |
90119-08191 |
US $2.33 |
||
|
11183
|
11183
11183-54011 Plug, Semicircular[12.1982 - 08.1987] L,2L#..LH5#,6#,7# |
11183-54011 |
from US $6.06 |
||
|
11201
|
11201
11201-54050
Cover Sub-Assy, Cylinder Head
[08.1985 - 08.1987] 2L#..LH5#,6#,71 |
11201-54050 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-54080 Cover Sub-Assy, Cylinder Head[08.1985 - 08.1987] 2L#..LH5#,6#,71 |
11201-54080 |
US $196.56 |
||
|
11201
|
11201
11201-59045 Cover Sub-Assy, Cylinder Head[12.1982 - 08.1985] L,2L..LH5#,6#,7# |
11201-59045 |
US $254.80 |
||
|
11201A
|
11201A
90176-08014 Nut, Cap(For Cylinder Head Cover)[12.1982 - 08.1987] L,2L#..LH5#,6#,7# |
90176-08014 |
from US $2.73 |
||
|
11201B
|
11201B
90210-13001 Washer, Seal(For Cylinder Head Cover)[12.1982 - 08.1987] L,2L#..LH5#,6#,7# |
90210-13001 |
from US $2.52 |
||
|
11212
|
11212
11212-54010
Cover, Cylinder Head, No.2
[12.1982 - 08.1985] L,2L..LH5#..ATM |
11212-54010 |
— | ||
|
11212
|
11212
11212-54020
Cover, Cylinder Head, No.2
[08.1985 - 08.1987] 2L..LH61,71..COM,V;2L..LH51..(4FC,5H)..(03S,06S,08S);2L..LH51..(4FC,4HC,5F)..(05S, 06S,09S) |
11212-54020 |
— | ||
|
11212A
|
11212A
11228-54010 Cushion, Cylinder Head Cover[12.1982 - 08.1985] L,2L..LH5#..ATM |
11228-54010 |
US $24.61 |
||
|
11213
|
11213
11213-54030 Gasket, Cylinder Head Cover[04.1983 - 02.1987] L,2L..LH5#,6#,7# |
11213-54030 |
from US $15.25 |
||
|
11224
|
11224
11224-54010 Silencer, Cylinder Head Cover[12.1982 - 08.1985] L,2L..LH5#..ATM |
11224-54010 |
US $133.95 |
||
|
11224
|
11224
11224-54020 Silencer, Cylinder Head Cover[08.1985 - 08.1987] 2L..LH61,71..COM,V;2L..LH51..(4FC,5H)..(03S,06S,08S);2L..LH51..(4FC,4HC,5F)..(05S, 06S,09S) |
11224-54020 |
US $136.86 |
||
|
12108
|
12108
12180-70010
Cap Sub-Assy, Oil Filler
[06.1983 - 10.1985] L,2L#..LH5#,6#,7# |
12180-70010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[06.1983 - 10.1985] L,2L#..LH5#,6#,7# |
12180-E0010 |
from US $13.34 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[12.1982 - 08.1987] L,2L#..LH5#,6#,7# |
90430-37140 |
from US $1.17 |
||
|
9017506003
|
9017506003
90175-06003 Nut, Wing(For Air Cleaner) |
90175-06003 |
from US $1.21 |
||
