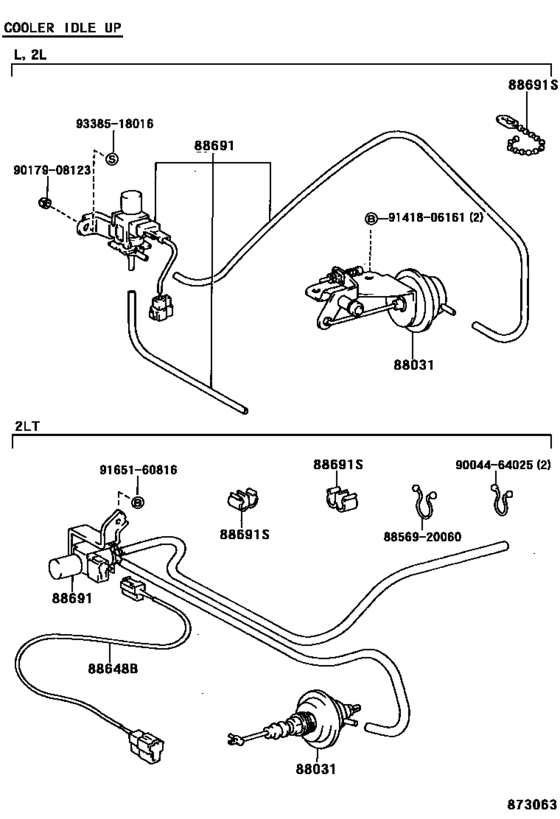

Heating & Air Conditioning - Vacuum Piping ([12.1982 - ] (8212- )LH5#,6#,7#) Diagram Toyota HIACE
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1985
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-35040
Actuator Set, Idle-Up
[12.1982 - 08.1987] LH5#,6#,7#..DSL *CIU |
88031-35040 |
— | ||
|
88691
|
88691
88690-95J11
Valve, Magnet (For Idle Up Device)
[12.1982 - 08.1987] LH50,51,60,61,7#..DSL COOLER IDLE UP |
88690-95J11 |
— | ||
|
88691S
|
88691S
88888-40040
Clamp (For Idle Up Divice), No.1
[12.1982 - 08.1987] LH50,51,60,61,7#..DSL |
88888-40040 |
— | ||
|
8856920060
|
8856920060
88569-20060
Clamp, No.3(For Luggage Door Lock Control Cable)
|
88569-20060 |
— | ||
| replacement | |||||
|
8856920060
|
8856920060
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9004464025
|
9004464025
90044-64025 Clamp, Wiring Harness |
90044-64025 |
US $3.06 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9141806161
|
9141806161
91418-06161
New Genuine Part
|
91418-06161 |
— | ||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
