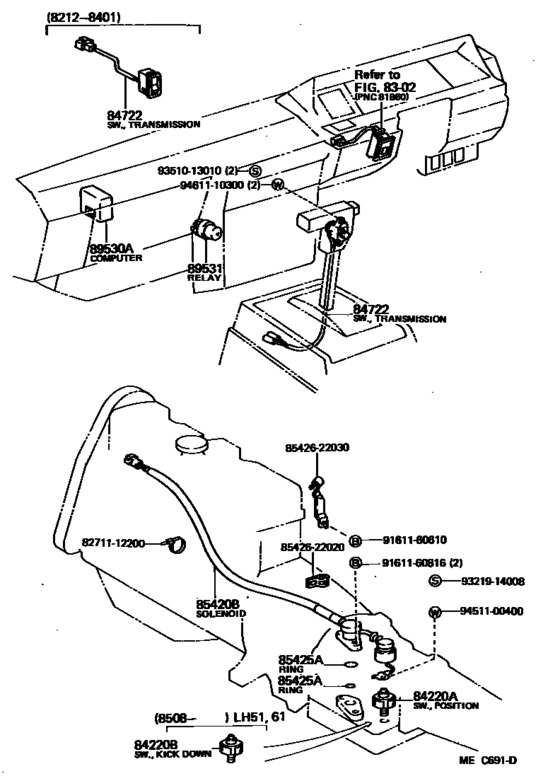

Overdrive & Electronic Controlled Transmission ([12.1982 - ] (8212- )ATM) Diagram Toyota HIACE
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1985
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84220B
|
84220B
84220-30050
Switch Assy, Transmission Position Indicator
[08.1985 - 08.1987] LH51,61..ATM |
84220-30050 |
— | ||
|
84722
|
84722
84722-20040-14 Switch, Transmission Control[08.1985 - 08.1987] LH51,61,YH51,61..4FC..(05S,08S) BLUE,BLUE |
84722-20040-14 |
US $74.26 |
||
| replacement | |||||
|
84722
|
84722
84722-20040-11 Switch, Transmission Control[08.1985 - 08.1987] LH51,61,YH51,61..4FC..(05S,08S) BLUE,BLUE |
84722-20040-11 |
US $74.26 |
||
|
84722
|
84722
84722-20040-15 Switch, Transmission Control[08.1985 - 08.1987] LH51,YH51..WG..4FC BEIGE,BEIGE |
84722-20040-15 |
US $74.26 |
||
| replacement | |||||
|
84722
|
84722
84722-20040-11 Switch, Transmission Control[08.1985 - 08.1987] LH51,YH51..WG..4FC BEIGE,BEIGE |
84722-20040-11 |
US $74.26 |
||
|
84722
|
84722
84722-32010 Switch, Transmission Control[01.1984 - 08.1985] LH51,YH51..4FC |
84722-32010 |
US $78.62 |
||
|
85420B
|
85420B
85420-22060
Solenoid Assy, Transmission
[01.1984 - 08.1985] LH51,61,YH51..ATM |
85420-22060 |
— | ||
|
85420B
|
85420B
85420-30100 Solenoid Assy, Transmission[08.1985 - 08.1987] YH51,61..VSG..ATM; LH51,61..ATM |
85420-30100 |
US $243.15 |
||
|
85425A
|
85425A
90301-11001 Ring, O (For Transmission Oil Filler Plug)[12.1982 - 08.1987] LH50,51,61,YH51,61..ATM ID=11 |
90301-11001 |
US $2.87 |
||
|
85425A
|
85425A
90301-23001 Ring, O (For Transmission Solenoid)[12.1982 - 08.1987] LH50,51,61,YH51,61..ATM ID=23 |
90301-23001 |
US $4.68 |
||
|
89530A
|
89530A
89530-26011 Computer Assy, Transmission Control[08.1985 - 08.1987] LH51,61..ATM..DSL |
89530-26011 |
US $160.16 |
||
|
89531
|
89531
90987-03001 Relay[01.1984 - 08.1985] LH51,61,YH51,61..ATM |
90987-03001 |
from US $32.74 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8542622020
|
8542622020
85426-22020 Clamp(For Clutch Tube) |
85426-22020 |
US $9.32 |
||
|
8542622030
|
8542622030
85426-22030 Clamp, Over Drive Solenoid |
85426-22030 |
US $9.03 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.33 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.97 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
