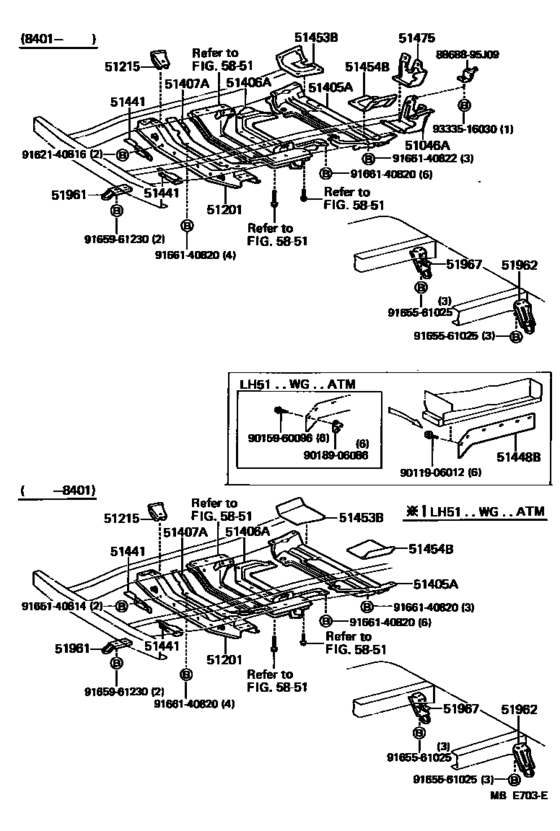

Suspension Crossmember & Under Cover ([12.1982 - ] (8212- )LH50,51,60,61,7#,YH5#,6#,71) Diagram Toyota HIACE
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1985
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51046A
|
51046A
51046-95J00 Cover Sub-Assy, Engine Under, No.5[01.1984 - 08.1987] LH51..WG..ATM..DSL |
51046-95J00 |
US $66.25 |
||
|
51201
|
51201
51203-95J00 Crossmember Sub-Assy, Front Suspension[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 |
51203-95J00 |
US $349.44 |
||
| replacement | |||||
|
51201
|
51201
51203-95J01 Crossmember Sub-Assy, Front SuspensionFRONT SUSPENSION [12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 |
51203-95J01 |
US $237.33 |
||
|
51215
|
51215
51215-95J00 Reinforcement, Front Suspension Crossmember[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 RH |
51215-95J00 |
US $29.70 |
||
|
51215
|
51215
51216-95J00 Reinforcement, Front Suspension Crossmember[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 LH |
51216-95J00 |
US $29.70 |
||
|
51405A
|
51405A
51405-95J01 Cover Sub-Assy, Engine Under, No.1[01.1984 - 08.1985] LH51..WG..ATM |
51405-95J01 |
US $285.38 |
||
|
51405A
|
51405A
51405-95J02 Cover Sub-Assy, Engine Under, No.1[08.1985 - 08.1987] LH51,61..ATM..DSL |
51405-95J02 |
US $285.38 |
||
|
51406A
|
51406A
51406-95J01 Cover Sub-Assy, Engine Under, No.2[01.1984 - 08.1985] LH51..WG..ATM |
51406-95J01 |
US $123.76 |
||
|
51407A
|
51407A
51407-95J01 Cover Sub-Assy, Engine Under, No.3[01.1984 - 08.1985] LH51..WG..ATM |
51407-95J01 |
US $75.71 |
||
|
51441
|
51441
51444-95J00 Cover Sub-Assy, Engine Under, No.4[12.1982 - 08.1987] LH50,51,60,61,7# RH |
51444-95J00 |
US $22.71 |
||
|
51441
|
51441
51446-95J02 Cover Sub-Assy, Engine Under, No.4[12.1982 - 08.1987] LH50,51,60,61,7# LH,POWER STEERING |
51446-95J02 |
US $22.71 |
||
|
51448B
|
51448B
51448-95J01 Shutter, Engine Rear Side[01.1984 - 08.1987] LH51..WG..ATM..DSL |
51448-95J01 |
US $66.25 |
||
|
51453B
|
51453B
51453-95J00 Silencer, Engine Under Cover, Rh[12.1982 - 08.1985] LH5#..WG..ATM |
51453-95J00 |
US $69.74 |
||
|
51454B
|
51454B
51454-95J01 Silencer, Engine Under Cover, Lh[01.1984 - 08.1985] LH51..WG..ATM |
51454-95J01 |
US $69.74 |
||
|
51475
|
51475
51475-95J00 Silencer, Engine Under Cover, No.5[01.1984 - 08.1987] LH51..WG..ATM..DSL |
51475-95J00 |
US $107.74 |
||
|
51961
|
51961
51961-26080 Hook, No.1[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
51961-26080 |
US $69.31 |
||
|
51961
|
51961
51961-26090 Hook, No.1[08.1985 - 02.1986] LH51,YH51..CTM,SCL,SCM |
51961-26090 |
US $71.64 |
||
| replacement | |||||
|
51961
|
51961
51961-26091 Hook, No.1[08.1985 - 02.1986] LH51,YH51..CTM,SCL,SCM |
51961-26091 |
US $45.28 |
||
|
51961
|
51961
51961-26091 Hook, No.1[02.1986 - 08.1987] LH51,YH51..CTM,SCL,SCM |
51961-26091 |
US $45.28 |
||
|
51962
|
51962
51965-26020 Hook, No.2[12.1982 - 08.1987] LH50,51,YH51..WG |
51965-26020 |
US $91.73 |
||
|
51967
|
51967
51967-26010 Hook, Transport, Rear[12.1982 - 08.1987] LH50,51,YH51..WG |
51967-26010 |
US $91.73 |
||
|
8868895J09
|
8868895J09
88688-95J09
Bracket, Cooler Condenser, No.5
|
88688-95J09 |
— | ||
|
9011906012
|
9011906012
90119-06012 New Genuine Part |
90119-06012 |
US $2.18 |
||
|
9015960096
|
9015960096
90159-60096 New Genuine Part |
90159-60096 |
US $1.51 |
||
|
9018906086
|
9018906086
90189-06086 New Genuine Part |
90189-06086 |
US $1.89 |
||
|
9162140816
|
9162140816
91621-40816 BOLTWWASHER |
91621-40816 |
from US $0.99 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165561025
|
9165561025
91655-61025
Bolt, No.1 (For Center Support Bearing)
|
91655-61025 |
— | ||
| replacement | |||||
|
9165561025
|
9165561025
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
|
9165961230
|
9165961230
91659-61230
New Genuine Part
|
91659-61230 |
— | ||
| replacement | |||||
|
9165961230
|
9165961230
90119-12297 New Genuine Part |
90119-12297 |
US $4.84 |
||
|
9166140820
|
9166140820
91661-40820 New Genuine Part |
91661-40820 |
from US $1.66 |
||
|
9166140822
|
9166140822
91661-40822 New Genuine Part |
91661-40822 |
US $1.75 |
||
|
9333516030
|
9333516030
93335-16030
New Genuine Part
|
93335-16030 |
— | ||
