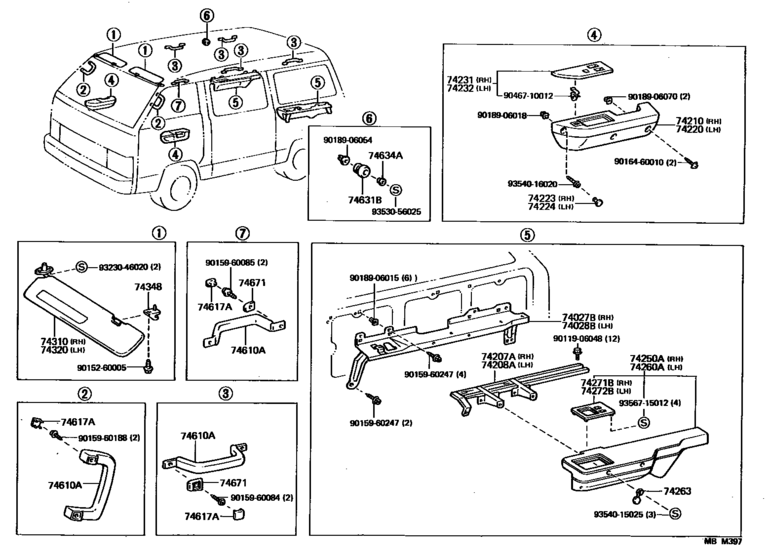

Armrest & Visor ([08.1987 - ] (8708- )07S) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCL
- body
- WG
- Roof
- MRF
- ENGINE
- 2LT
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- TD
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74027B
|
74027B
74027-95J00 Base Sub-Assy, Quarter Armrest, Rh[08.1987 - 08.1989] LH51,YH51..07S |
74027-95J00 |
US $43.97 |
||
|
74028B
|
74028B
74028-95J00 Base Sub-Assy, Quarter Armrest, Lh[08.1987 - 08.1989] LH51,YH51..07S |
74028-95J00 |
US $43.97 |
||
|
74207A
|
74207A
74207-95J00 Reinforcement Sub-Assy, Quarter Armrest, Rh[08.1987 - 08.1989] LH51,YH51..07S |
74207-95J00 |
US $55.04 |
||
|
74208A
|
74208A
74208-95J00 Reinforcement Sub-Assy, Quarter Armrest, Lh[08.1987 - 08.1989] LH51,YH51..07S |
74208-95J00 |
US $55.04 |
||
|
74210
|
74210
74210-95J00-06 Armrest Assy, Front, Rh[08.1987 - 08.1989] LH51,YH51,57..07S,08S BROWN,TRIM4# |
74210-95J00-06 |
US $149.97 |
||
|
74220
|
74220
74220-95J00-06 Armrest Assy, Front, Lh[08.1987 - 08.1989] LH51,YH51,57..07S,08S BROWN,TRIM4# |
74220-95J00-06 |
US $149.97 |
||
|
74223
|
74223
74223-95J00-06 Cap, Door Armrest, Rh[08.1987 - 08.1989] LH51,YH51,57..07S,08S BROWN,TRIM4# |
74223-95J00-06 |
US $4.08 |
||
|
74224
|
74224
74223-95J00-06 Cap, Door Armrest, Rh[08.1987 - 08.1989] LH51,YH51,57..07S,08S BROWN,TRIM4# |
74223-95J00-06 |
US $4.08 |
||
|
74231
|
74231
74231-95J00-06 Panel, Front Armrest Base, Upper Rh[08.1987 - 08.1989] LH51,YH51..07S BROWN,TRIM4# |
74231-95J00-06 |
US $88.82 |
||
|
74232
|
74232
74232-95J00-06 Panel, Front Armrest Base, Upper Lh[08.1987 - 08.1989] LH51,YH51..07S BROWN,TRIM4# |
74232-95J00-06 |
US $88.82 |
||
|
74250A
|
74250A
74250-95J01-06 Armrest Assy, Quarter, Rh[08.1987 - 08.1989] LH51,YH51..07S BROWN,TRIM4# |
74250-95J01-06 |
US $179.09 |
||
|
74260A
|
74260A
74260-95J01-06 Armrest Assy, Quarter, Lh[08.1987 - 08.1989] LH51,YH51..07S BROWN,TRIM4# |
74260-95J01-06 |
US $179.09 |
||
|
74263
|
74263
74263-95J00-16 Cap, Quarter Armrest[08.1987 - 08.1989] LH51,YH51..07S BROWN,TRIM4# |
74263-95J00-16 |
US $5.24 |
||
|
74271B
|
74271B
74271-95J00-06 Panel, Quarter Armrest Base, Rh[08.1987 - 08.1989] LH51,YH51..07S BROWN,TRIM4# |
74271-95J00-06 |
US $35.24 |
||
|
74272B
|
74272B
74272-95J00-06 Panel, Quarter Armrest Base, Lh[08.1987 - 08.1989] LH51,YH51..07S BROWN,TRIM4# |
74272-95J00-06 |
US $35.24 |
||
|
74310
|
74310
74310-95J14-05 Visor Assy, Rh[08.1987 - 08.1989] LH51..07S GRAIGE,TRIM4# |
74310-95J14-05 |
US $55.47 |
||
|
74320
|
74320
74320-95J16-05 Visor Assy, Lh[08.1987 - 08.1989] LH51,YH51..07S GRAIGE,TRIM4# |
74320-95J16-05 |
US $64.36 |
||
|
74348
|
74348
74348-12010-06 Hook(For Package Tray Trim Panel)[08.1987 - 08.1989] LH51,YH51..07S BROWN,TRIM4# |
74348-12010-06 |
US $4.95 |
||
| replacement | |||||
|
74348
|
74348
74348-30010-01 Holder, Visor (BLACK)[08.1987 - 08.1989] LH51,YH51..07S BROWN,TRIM4# |
74348-30010-01 |
US $6.81 |
||
|
74348
|
74348
74348-12010-45 Hook(For Package Tray Trim Panel)[08.1987 - 08.1989] LH51,YH51,57..07S,08S GRAIGE,TRIM4# |
74348-12010-45 |
US $4.95 |
||
| replacement | |||||
|
74348
|
74348
74348-30010-01 Holder, Visor (BLACK)[08.1987 - 08.1989] LH51,YH51,57..07S,08S GRAIGE,TRIM4# |
74348-30010-01 |
US $6.81 |
||
|
74610A
|
74610A
74610-22010-25 Grip Sub-Assy, Assist[08.1987 - 08.1989] LH51,YH51..07S GRAIGE,TRIM4#,ROOF(FR&RR) |
74610-22010-25 |
US $16.31 |
||
|
74610A
|
74610A
74610-95J00-25 Grip Sub-Assy, Assist[08.1987 - 08.1989] LH51,YH51,57..07S,08S GRAIGE,TRIM4#,FR PILLAR |
74610-95J00-25 |
US $20.38 |
||
| replacement | |||||
|
74610A
|
74610A
74610-95J00-B8 Grip Sub-Assy, Assist[08.1987 - 08.1989] LH51,YH51,57..07S,08S GRAIGE,TRIM4#,FR PILLAR |
74610-95J00-B8 |
US $21.77 |
||
|
74617A
|
74617A
74617-30020-55 Plug, Assist Grip[08.1987 - 08.1989] LH51,YH51..07S GRAIGE,TRIM4#,ROOF(FR&RR) |
74617-30020-55 |
US $3.49 |
||
|
74617A
|
74617A
74617-95J00-25 Plug, Assist Grip[08.1987 - 08.1989] LH51,YH51,57..07S,08S GRAIGE,TRIM4#,FR PILLAR |
74617-95J00-25 |
US $5.97 |
||
|
74631B
|
74631B
74631-12060-35 Hook, Coat[08.1987 - 08.1989] LH51,YH51..07S GRAIGE,TRIM4# |
74631-12060-35 |
US $4.22 |
||
| replacement | |||||
|
74631B
|
74631B
74631-12060-B5 Hook, Coat[08.1987 - 08.1989] LH51,YH51..07S GRAIGE,TRIM4# |
74631-12060-B5 |
US $3.84 |
||
|
74634A
|
74634A
74634-12010 Collar, Coat Hook[08.1987 - 08.1989] LH51,YH51..07S |
74634-12010 |
US $3.20 |
||
|
74671
|
74671
74671-30010 Support, Assist Grip[08.1987 - 08.1989] LH51,YH51..07S |
74671-30010 |
US $9.32 |
||
|
9011906048
|
9011906048
90119-06048 BOLT |
90119-06048 |
from US $1.01 |
||
|
9015260005
|
9015260005
90152-60005 SCREW |
90152-60005 |
US $1.08 |
||
|
9015960084
|
9015960084
90159-60084 SCREW |
90159-60084 |
from US $2.51 |
||
|
9015960085
|
9015960085
90159-60085 New Genuine Part |
90159-60085 |
US $2.61 |
||
|
9015960188
|
9015960188
90159-60188 SCREW |
90159-60188 |
US $1.51 |
||
|
9015960247
|
9015960247
90159-60247 New Genuine Part |
90159-60247 |
US $2.87 |
||
|
9016460010
|
9016460010
90164-60010 SCREW |
90164-60010 |
US $1.60 |
||
|
9018906015
|
9018906015
90189-06015 New Genuine Part |
90189-06015 |
US $3.76 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9018906054
|
9018906054
90189-06054 New Genuine Part |
90189-06054 |
US $2.51 |
||
|
9018906070
|
9018906070
90189-06070 GROMMETSCREW |
90189-06070 |
US $1.02 |
||
|
9046710012
|
9046710012
90467-10012 CLIP |
90467-10012 |
from US $0.96 |
||
|
9323046020
|
9323046020
93230-46020
New Genuine Part
|
93230-46020 |
— | ||
|
9353056025
|
9353056025
93530-56025 New Genuine Part |
93530-56025 |
US $1.60 |
||
|
9354015025
|
9354015025
93540-15025 New Genuine Part |
93540-15025 |
US $1.02 |
||
|
9354016020
|
9354016020
93540-16020 New Genuine Part |
93540-16020 |
US $1.02 |
||
|
9356715012
|
9356715012
93567-15012
New Genuine Part
|
93567-15012 |
— | ||
| replacement | |||||
|
9356715012
|
9356715012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
