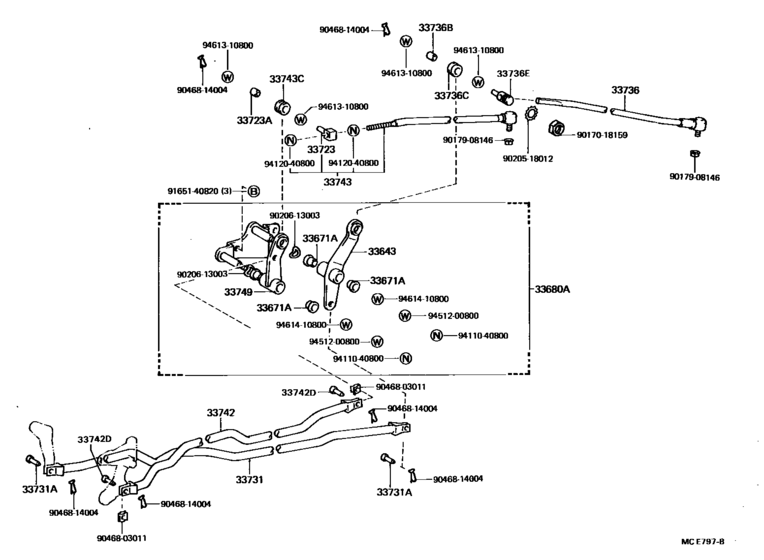

Control Shaft & Crossshaft ([08.1987 - ] (8708- )5H) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- LH51G
- grade
- CTM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33643
|
33643
33643-26081 Lever, Gear Selecting[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
33643-26081 |
US $22.28 |
||
|
33671A
|
33671A
90386-13192 Bush(For Over Center Plate)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
90386-13192 |
from US $1.64 |
||
|
33680A
|
33680A
33680-26011 Support Assy, Control Rod (For Floor Shift)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
33680-26011 |
US $68.87 |
||
|
33723
|
33723
33723-10020 Swivel, Connecting Rod (For Column Shift)[08.1987 - 08.1989] LH51..09S..TD;LH51,61,71,YH50,51,52,6#,71..(4HC,5F,5H)..(CBR,DSL) |
33723-10020 |
US $9.78 |
||
|
33723A
|
33723A
90389-08005 Bushing(For Gear Selecting Rod)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..4HC,5H |
90389-08005 |
from US $1.77 |
||
|
33731
|
33731
33731-26031 Rod, Gear Selecting, No.1 (For Column Shift)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
33731-26031 |
US $37.42 |
||
|
33731A
|
33731A
90240-08042 Pin, W/hole(For Gear Selecting Rod No.2)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
90240-08042 |
from US $1.79 |
||
|
33736
|
33736
33850-26031 Rod, Gear Selecting, No.2(For Column Shift)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
33850-26031 |
US $37.42 |
||
|
33736B
|
33736B
90389-08005 Bushing(For Gear Selecting Rod)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
90389-08005 |
from US $1.77 |
||
|
33736C
|
33736C
90480-17177 Grommet (For Transmission Control Rod)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
90480-17177 |
from US $2.07 |
||
|
33736E
|
33736E
33723-20010
Swivel, Connecting Rod (For Column Shift)
[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
33723-20010 |
— | ||
|
33742
|
33742
33742-26121 Rod, Gear Shifting, No.2(For Column Shift)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
33742-26121 |
US $28.54 |
||
|
33742D
|
33742D
90240-08042 Pin, W/hole(For Gear Selecting Rod No.2)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..4HC,5H |
90240-08042 |
from US $1.79 |
||
|
33743
|
33743
33840-26091
Rod, Gear Shifting, No.3 (For Column Shift)
[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
33840-26091 |
— | ||
|
33743C
|
33743C
90480-17177 Grommet (For Transmission Control Rod)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
90480-17177 |
from US $2.07 |
||
|
33749
|
33749
33749-26081 Lever, Gear Shifting, No.3 (For Column Shift)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..5H |
33749-26081 |
US $20.09 |
||
|
9017018159
|
9017018159
90170-18159
Nut, Hexagon (For Control Rod Setting)
|
90170-18159 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9020518012
|
9020518012
90205-18012 Washer, Toothed (For Control Rod Setting) |
90205-18012 |
US $1.31 |
||
|
9020613003
|
9020613003
90206-13003 Washer, Wave (For Power Take-Off Shift Lever) |
90206-13003 |
US $1.79 |
||
|
9046803011
|
9046803011
90468-03011 CLIP |
90468-03011 |
US $1.25 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9461410800
|
9461410800
94614-10800
Spacer (For Control Select Lever Support)
|
94614-10800 |
— | ||
| replacement | |||||
|
9461410800
|
9461410800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
