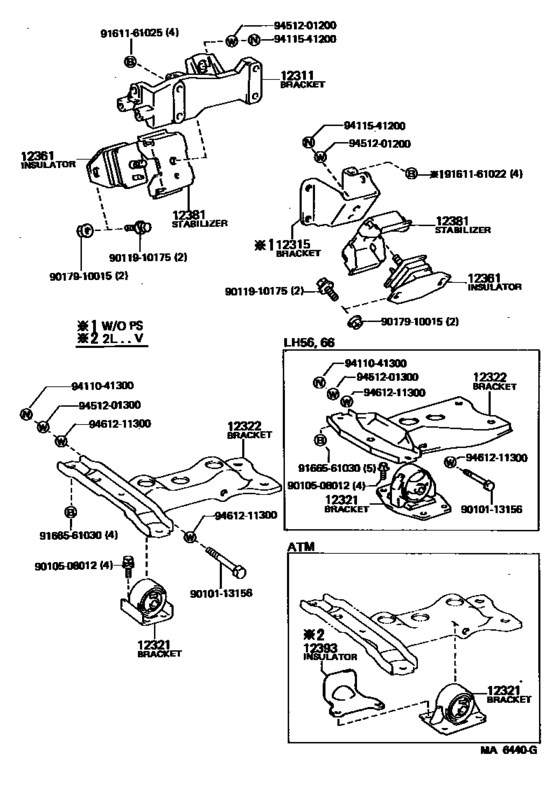

Mounting ([12.1982 - ] (8212- )L,2L#) Diagram Toyota HIACE
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- LH60B
- grade
- DLX
- body
- COM
- Roof
- SRF
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 01.1984
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-54090
Bracket, Engine Mounting, Front No.1 Rh
[12.1982 - 08.1987] L,2L#..LH50,51,60,61,7# |
12311-54090 |
— | ||
| replacement | |||||
|
12311
|
12311
12311-54091 Bracket, Engine Mounting, Front No.1 Rh[12.1982 - 08.1987] L,2L#..LH50,51,60,61,7# |
12311-54091 |
US $110.66 |
||
|
12315
|
12315
12312-54020
Bracket, Engine Mounting, Front No.1 Lh
[12.1982 - 08.1985] L,2L..LH5#,6#,7#..DLX W/O PS |
12312-54020 |
— | ||
| replacement | |||||
|
12315
|
12315
12312-54021 Bracket, Engine Mounting, Front No.2[12.1982 - 08.1985] L,2L..LH5#,6#,7#..DLX W/O PS |
12312-54021 |
US $25.51 |
||
|
12321
|
12321
12303-24010
Bracket, Engine Mounting, Rear, No.1
[12.1982 - 02.1985] L,2L..LH5#,6#,7#..MTM; 2Y,3Y#..YH5#,6#,71..MTM |
12303-24010 |
— | ||
| replacement | |||||
|
12321
|
12321
12303-72010 Bracket, Engine Mounting, Rear, No.1[12.1982 - 02.1985] L,2L..LH5#,6#,7#..MTM; 2Y,3Y#..YH5#,6#,71..MTM |
12303-72010 |
US $89.51 |
||
|
12322
|
12322
12322-54040 Bracket, Engine Mounting, Rear No.2[12.1982 - 02.1985] L,2L..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71..MTM |
12322-54040 |
US $75.71 |
||
|
12361
|
12361
12361-54100
Insulator, Engine Mounting, Front
[12.1982 - 06.1983] L..LH50,60,70 |
12361-54100 |
— | ||
| replacements | |||||
|
12361
|
12361
12361-54143 Insulator, Engine Mounting, Front[12.1982 - 06.1983] L..LH50,60,70 |
12361-54143 |
from US $44.69 |
||
|
12361
|
12361
12381-54020 Stabilizer, Engine Mounting[12.1982 - 06.1983] L..LH50,60,70 |
12381-54020 |
from US $17.47 |
||
|
12361
|
12361
12361-54140
Insulator, Engine Mounting, Front
[06.1983 - 01.1985] L,2L..LH5#,6#,7# |
12361-54140 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-54143 Insulator, Engine Mounting, Front[06.1983 - 01.1985] L,2L..LH5#,6#,7# |
12361-54143 |
from US $44.69 |
||
|
12381
|
12381
12381-54010 Stabilizer, Engine Mounting[12.1982 - 06.1983] L..LH50,60,70 |
12381-54010 |
US $23.41 |
||
|
12381
|
12381
12381-54020 Stabilizer, Engine Mounting[06.1983 - 08.1987] L,2L#..LH5#,6#,7# |
12381-54020 |
from US $17.47 |
||
|
9010113156
|
9010113156
90101-13156
New Genuine Part
|
90101-13156 |
— | ||
| replacement | |||||
|
9010113156
|
9010113156
90101-13003 BOLTHEXAGON |
90101-13003 |
US $9.68 |
||
|
9010508012
|
9010508012
90105-08012
New Genuine Part
|
90105-08012 |
— | ||
|
9011910175
|
9011910175
90119-10175
New Genuine Part
|
90119-10175 |
— | ||
| replacement | |||||
|
9011910175
|
9011910175
91651-61028 New Genuine Part |
91651-61028 |
US $1.31 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.03 |
||
|
9161161022
|
9161161022
91611-61022
Bolt (For Transmission Control Cable Bracket)
|
91611-61022 |
— | ||
| replacement | |||||
|
9161161022
|
9161161022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.33 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9166561030
|
9166561030
91665-61030
New Genuine Part
|
91665-61030 |
— | ||
| replacement | |||||
|
9166561030
|
9166561030
91661-61030 New Genuine Part |
91661-61030 |
US $2.87 |
||
|
9411041300
|
9411041300
94110-41300 NUT |
94110-41300 |
from US $2.84 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
|
9451201300
|
9451201300
94512-01300 Washer(For Rear Spring U Bolt) |
94512-01300 |
from US $0.60 |
||
|
9461211300
|
9461211300
94612-11300 Washer(For Outer Lever Oil Setting) |
94612-11300 |
from US $0.70 |
||
