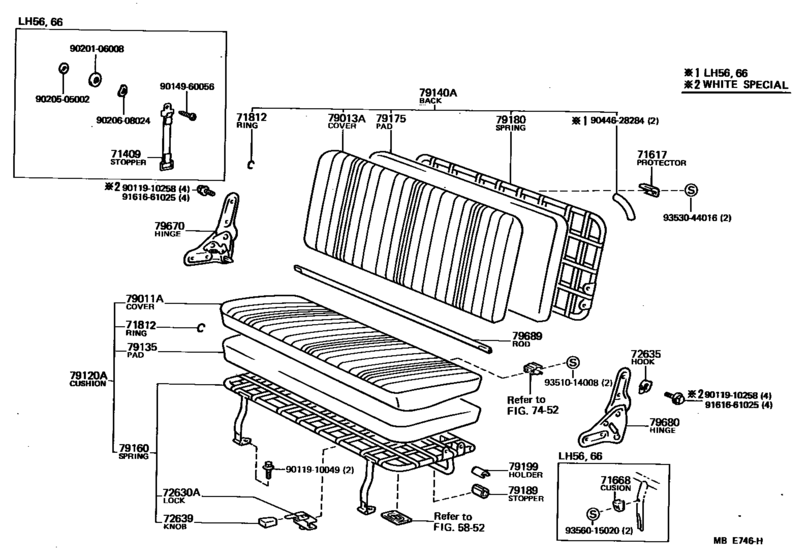

Seat & Seat Track ([12.1982 - ] (8212- )05S,06S) Diagram Toyota HIACE
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- LH60V
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 01.1984
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71617
|
71617
71617-95A03-05 Protector, Rear Seat Back[12.1982 - 01.1984] LH50,60,70,YH50,61,71..VSG..(06S,09S) BEIGE,BEIGE |
71617-95A03-05 |
US $9.17 |
||
| replacement | |||||
|
71617
|
71617
71617-95A03-03 Protector, Rear Seat Back[12.1982 - 01.1984] LH50,60,70,YH50,61,71..VSG..(06S,09S) BEIGE,BEIGE |
71617-95A03-03 |
US $9.17 |
||
|
71812
|
71812
90468-18071
Clip (For Front Seat Cushion Cover)
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
90468-18071 |
— | ||
| replacement | |||||
|
71812
|
71812
90468-16019 Clip (For Rear Seat Back)[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
90468-16019 |
from US $0.86 |
||
|
72630A
|
72630A
72630-95J01 Lock Assy, Rear No.1 Seat[12.1982 - 08.1987] LH5#,6#,7#,YH50,51,61,71..VSG..(05S,06S,08S,09S) |
72630-95J01 |
US $28.25 |
||
|
72639
|
72639
72639-95J00
Knob, Rear Seat Lock
[12.1982 - 08.1987] LH5#,6#,7#,YH50,51,61,71..VSG..(05S,06S,08S,09S) |
72639-95J00 |
— | ||
|
79011A
|
79011A
79011-95J04-05
Cover Sub-Assy, No.1 Seat Cushion
[12.1982 - 01.1984] LH50,60,70,YH50,61,71..06S VL,BEIGE,BEIGE |
79011-95J04-05 |
— | ||
|
79013A
|
79013A
79013-95J04-05
Cover Sub-Assy, No.1 Seat Back
[12.1982 - 01.1984] LH50,60,70,YH50,61,71..VSG..(06S,09S) VL,BEIGE,BEIGE |
79013-95J04-05 |
— | ||
|
79120A
|
79120A
79120-95J04-05
Cushion Assy, No.1 Seat
[12.1982 - 01.1984] LH50,60,70,YH50,61,71..06S VL,BEIGE,BEIGE |
79120-95J04-05 |
— | ||
|
79135
|
79135
79135-95J03 Pad, No.1 Seat Cushion[12.1982 - 08.1987] LH5#,6#,7#,YH50,51,61,71..VSG..(05S,06S,08S,09S) |
79135-95J03 |
US $136.86 |
||
|
79140A
|
79140A
79140-95J04-05
Back Assy, No.1 Seat
[12.1982 - 01.1984] LH50,60,70,YH50,61,71..06S VL,BEIGE,BEIGE |
79140-95J04-05 |
— | ||
|
79160
|
79160
79160-95J02
Spring Assy, No.1 Seat Cushion
[12.1982 - 01.1984] LH50,60,70,YH50,61,71..06S |
79160-95J02 |
— | ||
|
79175
|
79175
79175-95J02 Pad, No.1 Seat Back[12.1982 - 01.1984] LH50,60,70,YH50,61,71..VSG..(06S,09S) MAIN |
79175-95J02 |
US $78.62 |
||
|
79180
|
79180
79180-95J03 Spring Assy, No.1 Seat Back[12.1982 - 08.1987] LH5#,6#,7#,YH50,51,61,71..VSG..(05S,06S,08S,09S) |
79180-95J03 |
US $368.37 |
||
|
79189
|
79189
79189-95J00 Stopper, Rear Seat Leg[12.1982 - 08.1987] LH5#,6#,7#,YH50,51,61,71..VSG..(05S,06S,08S,09S) |
79189-95J00 |
US $5.53 |
||
|
79199
|
79199
79199-95J00 Holder, No.1 Seat Leg Stopper[12.1982 - 08.1987] LH5#,6#,7#,YH50,51,61,71..VSG..(05S,06S,08S,09S) |
79199-95J00 |
US $5.23 |
||
|
79670
|
79670
79670-95J01-05 Hinge Assy, No.1 Seat, Rh[12.1982 - 01.1984] LH50,60,70,YH50,61,71..06S BEIGE,BEIGE |
79670-95J01-05 |
US $161.62 |
||
| replacement | |||||
|
79670
|
79670
79670-95J01-C0 Hinge Assy, No.1 Seat, Rh[12.1982 - 01.1984] LH50,60,70,YH50,61,71..06S BEIGE,BEIGE |
79670-95J01-C0 |
US $155.79 |
||
|
79680
|
79680
79680-95J00-05 Hinge Assy, No.1 Seat, Lh[12.1982 - 01.1984] LH50,60,70,YH50,61,71..06S BEIGE,BEIGE |
79680-95J00-05 |
US $161.62 |
||
| replacement | |||||
|
79680
|
79680
79680-95J00-C0 Hinge Assy, No.1 Seat, Lh[12.1982 - 01.1984] LH50,60,70,YH50,61,71..06S BEIGE,BEIGE |
79680-95J00-C0 |
US $155.79 |
||
|
9011910049
|
9011910049
90119-10049 Bolt, Center Support Bearing Bracket |
90119-10049 |
from US $1.50 |
||
|
9011910258
|
9011910258
90119-10258 New Genuine Part |
90119-10258 |
US $4.37 |
||
|
9014960056
|
9014960056
90149-60056 New Genuine Part |
90149-60056 |
US $0.79 |
||
|
9020106008
|
9020106008
90201-06008 New Genuine Part |
90201-06008 |
US $1.61 |
||
|
9020505002
|
9020505002
90205-05002 New Genuine Part |
90205-05002 |
US $0.79 |
||
|
9020608024
|
9020608024
90206-08024 Washer, Wave(For Parking Brake Shoe) |
90206-08024 |
from US $0.90 |
||
|
9044628284
|
9044628284
90446-28284 Cushion (For Rear Seat Leg) |
90446-28284 |
US $8.59 |
||
|
9161661025
|
9161661025
91616-61025
Bolt (For Control Shaft Cover)
|
91616-61025 |
— | ||
| replacement | |||||
|
9161661025
|
9161661025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9351014008
|
9351014008
93510-14008 New Genuine Part |
93510-14008 |
US $2.18 |
||
|
9353044016
|
9353044016
93530-44016 New Genuine Part |
93530-44016 |
US $1.60 |
||
|
9356015020
|
9356015020
93560-15020 SCREW |
93560-15020 |
from US $0.52 |
||
