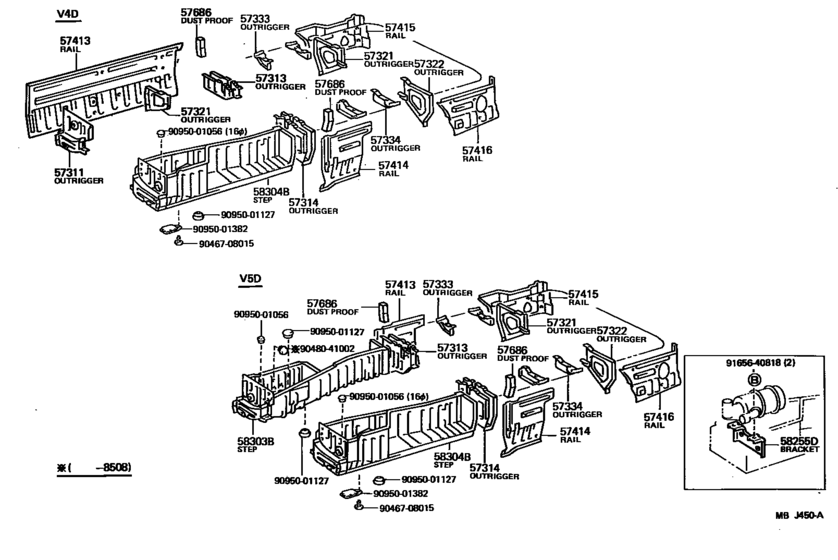

Rear Floor Panel & Rear Floor Member ([12.1982 - ] (8212- )WT) Diagram Toyota HIACE
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LH61V
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Side Window
- VSG
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57311
|
57311
57301-95J01 Outrigger, No.1 Rh[08.1985 - 08.1987] LH61,YH61..V4D..WT |
57301-95J01 |
US $115.02 |
||
|
57313
|
57313
57303-95J12 Outrigger, No.2 Rh[08.1985 - 08.1987] LH61,YH61..V4D..WT |
57303-95J12 |
US $154.34 |
||
| replacement | |||||
|
57313
|
57313
57303-95J26 Outrigger, No.2 Rh[08.1985 - 08.1987] LH61,YH61..V4D..WT |
57303-95J26 |
US $152.88 |
||
|
57314
|
57314
57304-95J11 Outrigger, No.2 Lh[01.1984 - 08.1987] LH61,YH61..WT |
57304-95J11 |
US $154.34 |
||
| replacement | |||||
|
57314
|
57314
57304-95J34 Outrigger, No.2 Lh[01.1984 - 08.1987] LH61,YH61..WT |
57304-95J34 |
US $149.97 |
||
|
57321
|
57321
57307-95J01 Outrigger, No.4 Rh[12.1982 - 08.1987] LH60,61,YH61..WT RR |
57307-95J01 |
US $77.17 |
||
| replacement | |||||
|
57321
|
57321
57307-95J09 Outrigger Sub-Assy, No.4 Rh[12.1982 - 08.1987] LH60,61,YH61..WT RR |
57307-95J09 |
US $64.79 |
||
|
57321
|
57321
57307-95J03
Outrigger Sub-Assy, No.4 Rh
[08.1985 - 08.1987] LH61,YH61..V4D..WT FR |
57307-95J03 |
— | ||
|
57322
|
57322
57308-95J01 Outrigger, No.4 Lh[12.1982 - 08.1987] LH60,61,YH61..WT |
57308-95J01 |
US $77.17 |
||
| replacement | |||||
|
57322
|
57322
57308-95J08 Outrigger Sub-Assy, No.4 Lh[12.1982 - 08.1987] LH60,61,YH61..WT |
57308-95J08 |
US $64.79 |
||
|
57333
|
57333
57321-95J00 Outrigger, No.5, Rh[12.1982 - 08.1987] LH60,61,YH61..WT |
57321-95J00 |
US $20.68 |
||
|
57334
|
57334
57322-95J00 Outrigger, No.5, Lh[12.1982 - 08.1987] LH60,61,YH61..WT |
57322-95J00 |
US $20.68 |
||
|
57413
|
57413
57405-95J23 Rail, Floor Side, Center Rh[01.1984 - 08.1986] LH61,YH6#..V4D |
57405-95J23 |
US $147.06 |
||
| replacements | |||||
|
57413
|
57413
57405-95J28 Rail, Floor Side, Center Rh[01.1984 - 08.1986] LH61,YH6#..V4D |
57405-95J28 |
US $147.06 |
||
|
57413
|
57413
90333-20001 PLUG[01.1984 - 08.1986] LH61,YH6#..V4D |
90333-20001 |
from US $1.12 |
||
|
57413
|
57413
57405-95J24
Rail, Floor Side, Center Rh
[01.1984 - 08.1986] YH62;LH61,YH61..V4D..(06S,09S) W/HEATER |
57405-95J24 |
— | ||
|
57413
|
57413
57405-95J40
Rail, Floor Side, Center Rh
[08.1985 - 08.1987] LH61,YH61..V4D..WT |
57405-95J40 |
— | ||
|
57413
|
57413
57405-95J42
Rail, Floor Side, Center Rh
[08.1985 - 08.1987] LH61,YH61..V4D..WT W/HEATER |
57405-95J42 |
— | ||
|
57413
|
57413
57413-95J49
Rail, Floor Side, Center Rh
[01.1984 - 08.1987] LH61,YH61..WT W/HEATER |
57413-95J49 |
— | ||
|
57414
|
57414
57414-95J04 Rail, Floor Side, Center Lh[12.1982 - 08.1987] LH60,61,YH61..WT |
57414-95J04 |
US $53 |
||
|
57415
|
57415
57047-95J02 Rail, Floor Side, Rear Rh[12.1982 - 08.1987] LH60,61,YH61..WT |
57047-95J02 |
US $123.76 |
||
|
57416
|
57416
57416-95J02 Rail, Floor Side, Rear Lh[12.1982 - 08.1987] LH60,61,YH61..WT |
57416-95J02 |
US $128.13 |
||
| replacement | |||||
|
57416
|
57416
57048-95J16 Rail, Floor Side, Rear Lh[12.1982 - 08.1987] LH60,61,YH61..WT |
57048-95J16 |
US $133.95 |
||
|
57686
|
57686
57686-95J01 Dust Proof, Outrigger[12.1982 - 08.1987] LH60,61,YH61..WT |
57686-95J01 |
US $13.25 |
||
|
58255D
|
58255D
58255-95J01
Bracket, Air Cleaner, Front
[12.1982 - 08.1987] LH60,61,YH61..WT |
58255-95J01 |
— | ||
|
58304B
|
58304B
58304-95J00 Step Sub-Assy, Rear Floor, Lh[12.1982 - 08.1985] LH6#,YH61..WT |
58304-95J00 |
US $646.46 |
||
|
58304B
|
58304B
58304-95J16
Step Sub-Assy, Rear Floor, Lh
[06.1983 - 08.1985] LH6#,YH61..WT COLD SPEC |
58304-95J16 |
— | ||
|
58304B
|
58304B
58304-95J33 Step Sub-Assy, Rear Floor, Lh[08.1985 - 08.1987] LH61,YH61..WT |
58304-95J33 |
US $634.82 |
||
|
58304B
|
58304B
58304-95J37 Step Sub-Assy, Rear Floor, Lh[08.1985 - 08.1987] LH61,YH61..WT COLD SPEC |
58304-95J37 |
US $634.82 |
||
|
9046708015
|
9046708015
90467-08015
Clip (For Quarter Inside Trim Board)
|
90467-08015 |
— | ||
| replacement | |||||
|
9046708015
|
9046708015
90467-08015-01
Clip (For Quarter Inside Trim Board)
|
90467-08015-01 |
— | ||
|
9048041002
|
9048041002
90480-41002 New Genuine Part |
90480-41002 |
US $7.28 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001127
|
9095001127
90950-01127
Grommet (For Cooler Unit)
|
90950-01127 |
— | ||
|
9095001382
|
9095001382
90950-01382 New Genuine Part |
90950-01382 |
US $7.28 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
