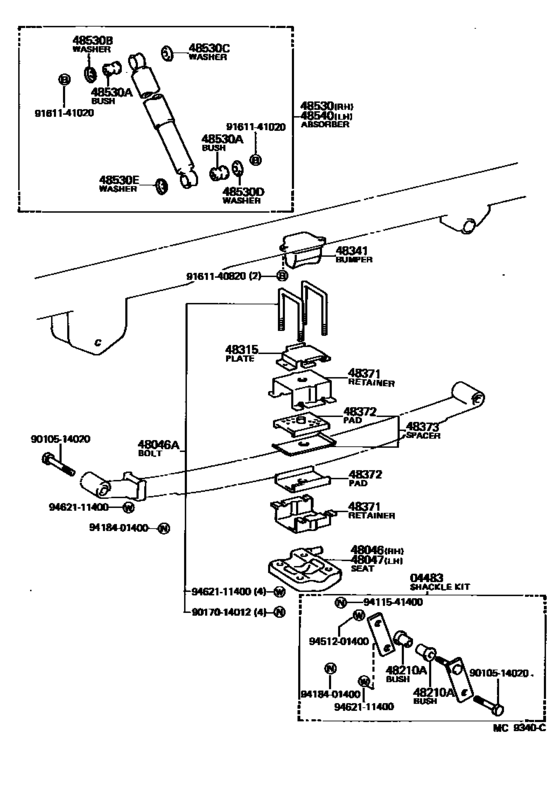

Rear Spring & Shock Absorber ([12.1982 - ] (8212- )WT) Diagram Toyota HIACE
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- LH61V
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Side Window
- VSG
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-26070 Shackle Kit, Rear Spring[12.1982 - 08.1985] LH6#,YH61..WT |
04483-26070 |
US $75.71 |
||
| replacement | |||||
|
04483
|
04483
04483-26071 Shackle Kit, Rear Spring[12.1982 - 08.1985] LH6#,YH61..WT |
04483-26071 |
US $75.71 |
||
|
04483
|
04483
04483-26071 Shackle Kit, Rear Spring[08.1985 - 08.1987] LH61,YH61..WT |
04483-26071 |
US $75.71 |
||
|
48046
|
48046
48046-26061 Seat Sub-Assy, Spring U Bolt, Rh[08.1983 - 08.1986] LH6#,YH61..WT |
48046-26061 |
US $64.36 |
||
|
48046
|
48046
48046-26090
Seat Sub-Assy, Spring U Bolt, Rh
[08.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
48046-26090 |
— | ||
|
48046A
|
48046A
90118-14203 Bolt, U(For Rear Spring)[12.1982 - 08.1987] LH60,61,YH61..WT |
90118-14203 |
US $29.27 |
||
| replacement | |||||
|
48046A
|
48046A
90117-14060 Bolt, U(For Rear Spring)[12.1982 - 08.1987] LH60,61,YH61..WT |
90117-14060 |
US $24.61 |
||
|
48047
|
48047
48047-26061 Seat Sub-Assy, Spring U Bolt, Lh[08.1983 - 08.1986] LH6#,YH61..WT |
48047-26061 |
US $64.36 |
||
|
48047
|
48047
48047-26080
Seat Sub-Assy, Spring U Bolt, Lh
[08.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
48047-26080 |
— | ||
|
48210A
|
48210A
90385-18046 Bush(For Front Spring Shackle)[12.1982 - 08.1987] LH60,61,YH61..WT |
90385-18046 |
from US $2.22 |
||
|
48315
|
48315
48315-26010 Plate, Hollow Spring Set[12.1982 - 08.1987] LH60,61,YH61..WT |
48315-26010 |
US $22.42 |
||
|
48341
|
48341
48341-26010 Bumper, Rear Spring[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71..COM,V; LH60,61,YH61..10S |
48341-26010 |
US $30.72 |
||
|
48371
|
48371
48371-26070
Retainer, Rear Spring Pad
[12.1982 - 08.1987] LH60,61,YH61..WT |
48371-26070 |
— | ||
|
48372
|
48372
48372-26020
Pad, Rear Spring
[12.1982 - 08.1987] LH60,61,YH61..WT |
48372-26020 |
— | ||
|
48373
|
48373
48037-26040 Spacer Sub-Assy, Rear Spring[12.1982 - 08.1987] LH60,61,YH61..WT |
48037-26040 |
US $17.91 |
||
|
48530
|
48530
48531-80021 Absorber Assy, Shock, Rear Rh[12.1982 - 08.1987] LH60,61,YH61..WT |
48531-80021 |
US $99.01 |
||
| replacement | |||||
|
48530
|
48530
48531-80471 Absorber Assy, Shock, Rear Rh[12.1982 - 08.1987] LH60,61,YH61..WT |
48531-80471 |
US $97.55 |
||
|
48530A
|
48530A
90385-16004 Cushion, Front Shock Absorber[12.1983 - 08.1987] LH61,YH61..WT |
90385-16004 |
from US $3.28 |
||
|
48530B
|
48530B
90948-03012 Washer, Front Shock Absorber Cushion, No.1[12.1982 - 08.1987] LH60,61,YH61..10S; LH5#,6#,7#,YH5#,6#,71..COM,V |
90948-03012 |
US $1.60 |
||
|
48530C
|
48530C
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[12.1982 - 08.1987] LH60,61,YH61..10S; LH5#,6#,7#,YH5#,6#,71..COM,V |
90948-03004 |
from US $1.42 |
||
|
48530D
|
48530D
90948-03012 Washer, Front Shock Absorber Cushion, No.1[12.1983 - 08.1987] LH61,YH61..WT |
90948-03012 |
US $1.60 |
||
|
48530E
|
48530E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[12.1983 - 08.1987] LH61,YH61..WT |
90948-03004 |
from US $1.42 |
||
|
48540
|
48540
48531-80021 Absorber Assy, Shock, Rear Rh[12.1982 - 08.1987] LH60,61,YH61..WT |
48531-80021 |
US $99.01 |
||
| replacement | |||||
|
48540
|
48540
48531-80471 Absorber Assy, Shock, Rear Rh[12.1982 - 08.1987] LH60,61,YH61..WT |
48531-80471 |
US $97.55 |
||
|
9010514020
|
9010514020
90105-14020 BOLT |
90105-14020 |
from US $6.40 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $2.62 |
||
|
9418401400
|
9418401400
94184-01400 NUT |
94184-01400 |
US $4.80 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.60 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.56 |
||
