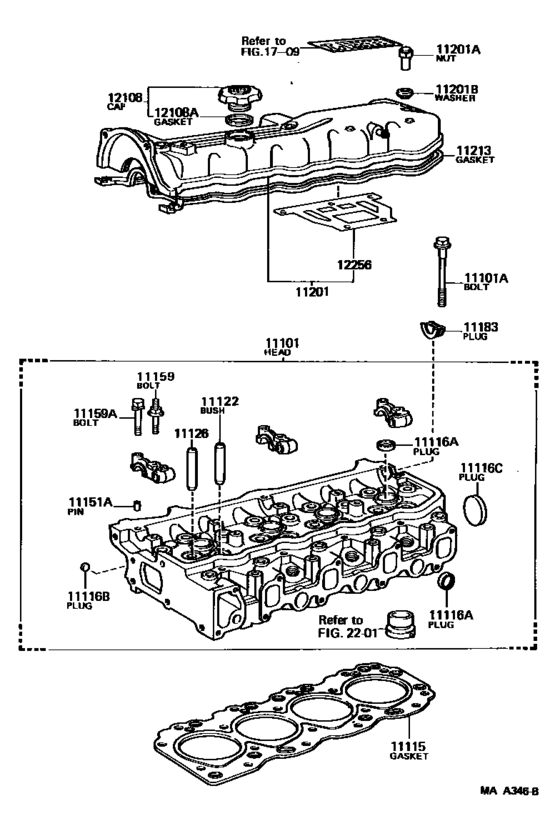

Cylinder Head ([08.1987 - ] (8708- )2L) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- LH66
- grade
- STD
- body
- V
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- J
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-54050
Head Sub-Assy, Cylinder
[08.1987 - 08.1989] 2L..LH5#,6# |
11101-54050 |
— | ||
|
11101A
|
11101A
90910-02060
Bolt(For Cylinder Head Set)
[08.1987 - 07.1988] 2L..LH5#,6# |
90910-02060 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02090 Bolt(For Cylinder Head Set)[08.1987 - 07.1988] 2L..LH5#,6# |
90910-02090 |
US $5.91 |
||
|
11101A
|
11101A
90910-02090 Bolt(For Cylinder Head Set)[07.1988 - 08.1989] 2L..LH5#,6# |
90910-02090 |
US $5.91 |
||
|
11115
|
11115
11115-54020
Gasket, Cylinder Head
[08.1987 - 08.1989] 2L..LH5#,6# |
11115-54020 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-54021 Gasket, Cylinder Head[08.1987 - 08.1989] 2L..LH5#,6# |
11115-54021 |
from US $54.85 |
||
|
11116A
|
11116A
96411-42500 Plug, Tight, No.1[08.1987 - 08.1989] 2L..LH5#,6# |
96411-42500 |
from US $2.95 |
||
|
11116B
|
11116B
96411-41200 Plug, Tight, No.1[08.1987 - 08.1989] 2L..LH5#,6# |
96411-41200 |
US $3.58 |
||
|
11116C
|
11116C
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1987 - 08.1989] 2L..LH5#,6# |
96411-45000 |
from US $3.84 |
||
|
11122
|
11122
11122-54011
Bush, Intake Valve Guide
[08.1987 - 08.1989] 2L..LH5#,6# STD |
11122-54011 |
— | ||
|
11122
|
11122
11123-54011
Bush, Intake Valve Guide
[08.1987 - 08.1989] 2L..LH5#,6# O/S 0.05 |
11123-54011 |
— | ||
|
11126
|
11126
11122-54011
Bush, Intake Valve Guide
[08.1987 - 08.1989] 2L..LH5#,6# STD |
11122-54011 |
— | ||
|
11126
|
11126
11123-54011
Bush, Intake Valve Guide
[08.1987 - 08.1989] 2L..LH5#,6# O/S 0.05 |
11123-54011 |
— | ||
|
11151A
|
11151A
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[08.1987 - 08.1989] 2L..LH5#,6# L=11,OD=11 |
90253-11001 |
US $2.15 |
||
|
11159
|
11159
90116-08137 Bolt, Stud(For Head To Camshaft Bearing Cap)[08.1987 - 08.1989] 2L..LH5#,6# |
90116-08137 |
US $3.32 |
||
|
11159A
|
11159A
90119-08191 Bolt(For Head To Camshaft Bearing Cap)[08.1987 - 08.1989] 2L..LH5#,6# |
90119-08191 |
US $2.33 |
||
|
11183
|
11183
11183-54011 Plug, Semicircular[08.1987 - 08.1989] 2L..LH5#,6# |
11183-54011 |
from US $6.06 |
||
|
11201
|
11201
11201-54080 Cover Sub-Assy, Cylinder Head[08.1987 - 08.1989] 2L..LH5#,6# |
11201-54080 |
US $196.56 |
||
|
11201A
|
11201A
90176-08014 Nut, Cap(For Cylinder Head Cover)[08.1987 - 08.1989] 2L..LH5#,6# |
90176-08014 |
from US $2.73 |
||
|
11201B
|
11201B
90210-13001 Washer, Seal(For Cylinder Head Cover)[08.1987 - 08.1989] 2L..LH5#,6# |
90210-13001 |
from US $2.52 |
||
|
11213
|
11213
11213-54030 Gasket, Cylinder Head Cover[08.1987 - 08.1989] 2L..LH5#,6# |
11213-54030 |
from US $15.25 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[08.1987 - 08.1989] 2L..LH5#,6# |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.1987 - 08.1989] 2L..LH5#,6# |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1987 - 08.1989] 2L..LH5#,6# |
90430-37140 |
from US $1.17 |
||
|
12256
|
12256
12256-54020 Gasket, Ventilation Baffle[08.1987 - 08.1989] 2L..LH5#,6# |
12256-54020 |
US $15.58 |
||
