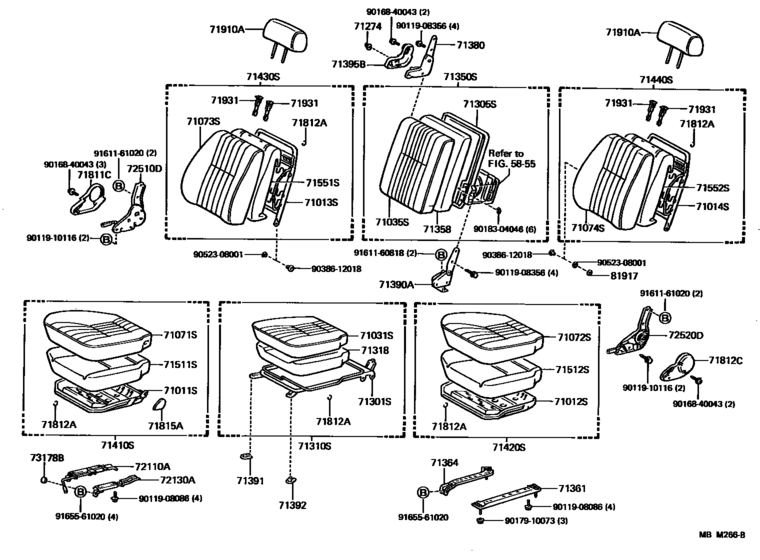

Seat & Seat Track ([08.1987 - ] (8708- )GL) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- LH71B
- grade
- GL
- body
- COM
- Roof
- HRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71011S
|
71011S
71011-95J01 Frame Sub-Assy, Front Seat Cushion, Rh[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
71011-95J01 |
US $182 |
||
|
71012S
|
71012S
71012-95J08-06 Frame Sub-Assy, Front Seat Cushion, Lh[08.1987 - 08.1989] LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
71012-95J08-06 |
US $182 |
||
|
71013S
|
71013S
71150-95J00 Frame Sub-Assy, Front Seat Back, Rh[08.1987 - 08.1989] LH51,61,71,YH51,61,71..(COM,WG)..(DX,GL) |
71150-95J00 |
US $182 |
||
|
71014S
|
71014S
71160-95J10 Frame Sub-Assy, Front Seat Back, Lh[08.1987 - 08.1989] LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
71160-95J10 |
US $199.47 |
||
|
71031S
|
71031S
71031-95J16-16 Cover Sub-Assy, Center Seat Cushion[08.1987 - 08.1989] LH71..GL;LH51,YH51..DX..09S BROWN,TRIM4# |
71031-95J16-16 |
US $145.60 |
||
|
71035S
|
71035S
71035-95J20-16 Cover, Front Seat Back, Center[08.1987 - 08.1989] LH71..GL;LH51,YH51..DX..09S BROWN,TRIM4# |
71035-95J20-16 |
US $208.21 |
||
|
71071S
|
71071S
71071-95J51-16 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1987 - 08.1989] LH71..GL BROWN,TRIM4# |
71071-95J51-16 |
US $228.59 |
||
|
71072S
|
71072S
71072-95J40-16 Cover, Front Seat Cushion, Lh(For Separate Type)[08.1987 - 08.1989] LH71..GL BROWN,TRIM4# |
71072-95J40-16 |
US $228.59 |
||
|
71073S
|
71073S
71073-95N14-06 Cover, Front Seat Back, Rh(For Separate Type)[08.1987 - 08.1989] LH71..GL BROWN,TRIM4# |
71073-95N14-06 |
US $371.28 |
||
|
71074S
|
71074S
71074-95N28-06 Cover, Front Seat Back, Lh(For Separate Type)[08.1987 - 08.1989] LH71..GL BROWN,TRIM4# |
71074-95N28-06 |
US $371.28 |
||
| replacement | |||||
|
71074S
|
71074S
71074-95N35-06
Cover, Front Seat Back, Lh(For Separate Type)
[08.1987 - 08.1989] LH71..GL BROWN,TRIM4# |
71074-95N35-06 |
— | ||
|
71274
|
71274
71274-95J00-16
Knob, Front Seat Hinge
[08.1987 - 08.1989] LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
71274-95J00-16 |
— | ||
|
71301S
|
71301S
71301-95J03 Frame Sub-Assy, Center Seat Cushion[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..4HC,5H |
71301-95J03 |
US $132.50 |
||
|
71305S
|
71305S
71305-95J00 Frame Sub-Assy, Center Seat Back[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..(4HC,5H)..(CD,DX,GL) |
71305-95J00 |
US $128.13 |
||
|
71310S
|
71310S
71310-95J17-16
Cushion Assy, Front Seat, Center
[08.1987 - 08.1989] LH71..GL;LH51,YH51..DX..09S BROWN,TRIM4# |
71310-95J17-16 |
— | ||
|
71318
|
71318
71318-95J03 Pad, Center Seat Cushion[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..4HC,5H |
71318-95J03 |
US $187.82 |
||
|
71350S
|
71350S
71350-95J17-16
Back Assy, Front Seat, Center
[08.1987 - 08.1989] LH71..GL;LH51,YH51..DX..09S BROWN,TRIM4# |
71350-95J17-16 |
— | ||
|
71358
|
71358
71358-95J04 Pad, Center Seat Back[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..4HC,5H |
71358-95J04 |
US $60.57 |
||
|
71361
|
71361
71361-95J01 Bracket, Front Seat Set, No.1[08.1987 - 08.1989] LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15 S) |
71361-95J01 |
US $54.45 |
||
|
71364
|
71364
71364-95J00 Bracket, Front Seat Set, No.4[08.1987 - 08.1989] LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15 S) |
71364-95J00 |
US $54.45 |
||
|
71380
|
71380
71380-95J03 Hinge Assy, Center Seat, Rh[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..4HC,5H |
71380-95J03 |
US $125.22 |
||
|
71390A
|
71390A
71390-95J02-04 Hinge Assy, Center Seat, Lh[08.1987 - 08.1989] LH61,YH61..GL..09S;LH51,61,71,YH51,71..(COM,WG)..5H..(DX,GL) BLUE,TRIM4#,8# |
71390-95J02-04 |
US $30.43 |
||
|
71391
|
71391
71391-95J02-06 Cover, Center Seat Cushion Bracket, Rh[08.1987 - 08.1989] LH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL) BROWN,TRIM4# |
71391-95J02-06 |
US $10.77 |
||
| replacement | |||||
|
71391
|
71391
71391-95J02-03 Cover, Center Seat Cushion Bracket, Rh[08.1987 - 08.1989] LH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL) BROWN,TRIM4# |
71391-95J02-03 |
US $11.07 |
||
|
71392
|
71392
71392-95J02-06 Cover, Center Seat Cushion Bracket, Lh[08.1987 - 08.1989] LH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL) BROWN,TRIM4# |
71392-95J02-06 |
US $6.84 |
||
| replacement | |||||
|
71392
|
71392
71392-95J02-03 Cover, Center Seat Cushion Bracket, Lh[08.1987 - 08.1989] LH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL) BROWN,TRIM4# |
71392-95J02-03 |
US $6.84 |
||
|
71395B
|
71395B
71395-95J00-16
Cover, Center Seat Hinge, Rh
[08.1987 - 08.1989] LH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL) BROWN,TRIM4# |
71395-95J00-16 |
— | ||
|
71410S
|
71410S
71410-95J53-16
Cushion Assy, Front Seat, Rh(For Separate Type)
[08.1987 - 08.1989] LH71..GL BROWN,TRIM4# |
71410-95J53-16 |
— | ||
|
71420S
|
71420S
71420-95J43-16
Cushion Assy, Front Seat, Lh (For Separate Type)
[08.1987 - 08.1989] LH71..GL BROWN,TRIM4# |
71420-95J43-16 |
— | ||
|
71430S
|
71430S
71401-95N09-06
Back Assy, Front Seat, Rh(For Separate Type)
[08.1987 - 08.1989] LH71..GL BROWN,TRIM4# |
71401-95N09-06 |
— | ||
|
71440S
|
71440S
71402-95N12-06
Back Assy, Front Seat, Lh(For Separate Type)
[08.1987 - 08.1989] LH71..GL BROWN,TRIM4# |
71402-95N12-06 |
— | ||
|
71511S
|
71511S
71511-95J00 Pad, Front Seat Cushion, Rh(For Separate Type)[08.1987 - 08.1989] LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S |
71511-95J00 |
US $238.78 |
||
|
71512S
|
71512S
71511-95J02 Pad, Front Seat Cushion, Lh (For Separate Type)[08.1987 - 08.1989] LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15 S) |
71511-95J02 |
US $221.31 |
||
|
71551S
|
71551S
71551-95J00 Pad, Front Seat Back, Rh(For Separate Type)[08.1987 - 08.1989] LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
71551-95J00 |
US $170.35 |
||
|
71552S
|
71552S
71551-95J03 Pad, Front Seat Back, Rh(For Separate Type)[08.1987 - 08.1989] LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
71551-95J03 |
US $164.53 |
||
|
71811C
|
71811C
71811-95J01-06 Cover, Reclining Adjuster, Rh[08.1987 - 08.1989] LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
71811-95J01-06 |
US $19.66 |
||
|
71812A
|
71812A
90468-18071
Clip (For Front Seat Cushion Cover)
[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..4HC,5H |
90468-18071 |
— | ||
| replacement | |||||
|
71812A
|
71812A
90468-16019 Clip (For Rear Seat Back)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..4HC,5H |
90468-16019 |
from US $0.91 |
||
|
71815A
|
71815A
71815-95J00-16
Cover, Front Seat Cushion Hinge, Rh
[08.1987 - 08.1989] LH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM BROWN,TRIM4# |
71815-95J00-16 |
— | ||
|
72110A
|
72110A
72110-95J02 Track Assy, Front Seat, Outer Rh[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
72110-95J02 |
US $149.97 |
||
|
72130A
|
72130A
72130-95J01 Track Assy, Front Seat, Inner Rh[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
72130-95J01 |
US $106.29 |
||
|
72510D
|
72510D
72510-95J00-06 Adjuster Assy, Reclining Seat Back, Rh[08.1987 - 08.1989] LH71..GL BROWN,TRIM4#,フロント; LH5#,6#,71,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
72510-95J00-06 |
US $180.54 |
||
| replacement | |||||
|
72510D
|
72510D
72510-95J00-14 Adjuster Assy, Reclining Seat Back, Rh[08.1987 - 08.1989] LH71..GL BROWN,TRIM4#,フロント; LH5#,6#,71,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
72510-95J00-14 |
US $180.54 |
||
|
72510D
|
72510D
72510-95J04-06 Adjuster Assy, Reclining Seat, Outer Rh[08.1987 - 08.1989] LH71..GL BROWN,TRIM4#,リヤ |
72510-95J04-06 |
US $183.46 |
||
|
73178B
|
73178B
73178-95J00 Cover, Seat Track[08.1987 - 08.1989] LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,71,YH50,51,57,61..CTM,GL,SCL,SCM,SGL |
73178-95J00 |
US $3.06 |
||
|
81917
|
81917
81917-95J00-26 Washer, Leather[08.1987 - 08.1989] LH51,61,71,YH51,61,71..(COM,WG)..(DX,GL) BROWN,TRIM4# |
81917-95J00-26 |
US $2.62 |
||
| replacement | |||||
|
81917
|
81917
81917-95J00-03 Washer, Plate[08.1987 - 08.1989] LH51,61,71,YH51,61,71..(COM,WG)..(DX,GL) BROWN,TRIM4# |
81917-95J00-03 |
US $2.62 |
||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9011908356
|
9011908356
90119-08356 New Genuine Part |
90119-08356 |
US $1.51 |
||
|
9011910116
|
9011910116
90119-10116
New Genuine Part
|
90119-10116 |
— | ||
| replacement | |||||
|
9011910116
|
9011910116
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9016840043
|
9016840043
90168-40043 SCREW |
90168-40043 |
from US $0.70 |
||
|
9017910073
|
9017910073
90179-10073 New Genuine Part |
90179-10073 |
US $2.04 |
||
|
9018304046
|
9018304046
90183-04046 New Genuine Part |
90183-04046 |
US $1.51 |
||
|
9038612018
|
9038612018
90386-12018 Bush (For Front Seat Hinge Pin) |
90386-12018 |
US $2.61 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.22 |
||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.24 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.65 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $0.95 |
||
|
9165561020
|
9165561020
91655-61020 New Genuine Part |
91655-61020 |
US $2.48 |
||
| replacement | |||||
|
9165561020
|
9165561020
91651-61016 Bolt |
91651-61016 |
US $1.02 |
||
