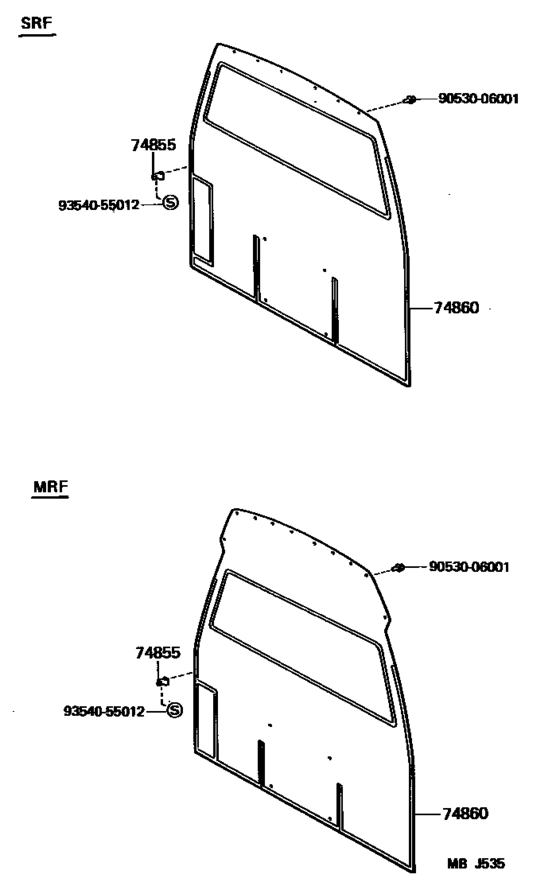

Separator & Separator Curtain ([08.1985 - ] (8508- )V) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- LH71V
- grade
- DLX
- body
- V
- Roof
- HRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74855
|
74855
74875-95J00 Plate, Separator Curtain Set[01.1984 - 08.1987] LH5#,6#,71,YH5#,6#,71..V |
74875-95J00 |
US $1.89 |
||
|
74860
|
74860
74870-95J04
Curtain Assy, Separate
[01.1984 - 08.1985] LH61,71,YH61,71..HRF..VSG..ST |
74870-95J04 |
— | ||
|
74860
|
74860
74870-95J11 Curtain Assy, Separate[08.1985 - 08.1987] LH61,71,YH61,71..HRF..06S..ST |
74870-95J11 |
US $304.30 |
||
|
9053006001
|
9053006001
90530-06001 Fastener, Hook |
90530-06001 |
US $1.97 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $1.08 |
