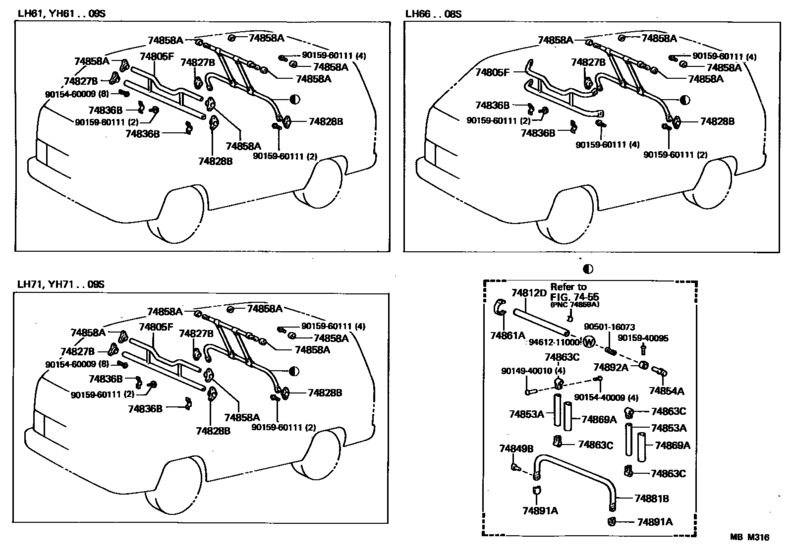

Separator & Separator Curtain ([08.1987 - ] (8708- )LH6#,71,YH61,71..08S,09S) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- LH71V
- grade
- DX
- body
- V
- Roof
- HRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74805F
|
74805F
74805-95J13-06 Bar Sub-Assy, Separator, A[08.1987 - 08.1989] LH51,61,71,YH50,52,6#,71..V..(CD,DX)..(03S,09S) BROWN,TRIM4# |
74805-95J13-06 |
US $173.26 |
||
|
74812D
|
74812D
74812-95J01-06 Bar, Separator, No.2[08.1987 - 08.1989] LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
74812-95J01-06 |
US $64.65 |
||
|
74827B
|
74827B
74835-90C01-06 Bracket, Separator Bar, Rh[08.1987 - 08.1989] LH71,YH71..09S BROWN,TRIM4#,リヤ |
74835-90C01-06 |
US $30.43 |
||
|
74827B
|
74827B
74867-95J00-06 Bracket, Separator Bar, Rh[08.1987 - 08.1989] LH61,71,YH61,71..DX..09S BROWN,TRIM4#,フロント; LH71,YH71..06S;LH51,61,YH50,52,6#..03S BROWN,TRIM4# |
74867-95J00-06 |
US $8.59 |
||
|
74828B
|
74828B
74878-95J00-06 Bracket, Separator Bar, Rh[08.1987 - 08.1989] LH66..DX..08S BROWN,TRIM4#; LH61,71,YH61,71..DX..09S BROWN,TRIM4#,リヤ |
74878-95J00-06 |
US $8.74 |
||
|
74828B
|
74828B
74879-95J01-06 Bracket, Separator Bar, Lh[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S BROWN,TRIM4#; LH61,71,YH61,71..DX..09S BROWN,TRIM4#,フロント |
74879-95J01-06 |
US $8.59 |
||
|
74836B
|
74836B
74836-95J00-06 Bracket, Separator Bar, No.2[08.1987 - 08.1989] LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
74836-95J00-06 |
US $8.88 |
||
|
74849B
|
74849B
74849-95J00 Pin, Separator[08.1987 - 08.1989] LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S |
74849-95J00 |
US $1.46 |
||
|
74853A
|
74853A
74853-95J00-06 Bar, Separator, No.3[08.1987 - 08.1989] LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
74853-95J00-06 |
US $31.01 |
||
|
74854A
|
74854A
74854-95J01-06 Stop, Separator[08.1987 - 08.1989] LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
74854-95J01-06 |
US $29.41 |
||
|
74858A
|
74858A
74851-95J01-06 Bracket, Separator Bar, Upper[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S BROWN,TRIM4#,右側; LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR RH |
74851-95J01-06 |
US $8.59 |
||
|
74858A
|
74858A
74852-95J00-06 Bracket, Separator Bar, Upper[08.1987 - 08.1989] LH51,61,YH50,52,6#..03S BROWN,TRIM4#,左側; LH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG BROWN,TRIM4#,FR LH |
74852-95J00-06 |
US $8.59 |
||
|
74858A
|
74858A
74858-95J03-04 Bracket, Separator Bar, Upper[08.1987 - 08.1989] LH66..DX..08S BLUE,TRIM4#; LH61,71,YH61,71..DX..09S BLUE,TRIM4#,リヤ |
74858-95J03-04 |
US $5.97 |
||
|
74858A
|
74858A
74858-95J03-06 Bracket, Separator Bar, Upper[08.1987 - 08.1989] LH66..DX..08S BROWN,TRIM4#; LH61,71,YH61,71..DX..09S BROWN,TRIM4#,リヤ |
74858-95J03-06 |
US $5.97 |
||
|
74861A
|
74861A
74861-95J03 Joint, Separator Bar[08.1987 - 08.1989] LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S |
74861-95J03 |
US $7.72 |
||
|
74863C
|
74863C
74863-95J01-06 Bracket, Separator Bar, No.3[08.1987 - 08.1989] LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S BROWN,TRIM4# |
74863-95J01-06 |
US $8.74 |
||
|
74863C
|
74863C
74863-95J01-14 Bracket, Separator Bar, No.3[08.1987 - 08.1989] LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S BLUE,TRIM4# |
74863-95J01-14 |
US $8.74 |
||
|
74869A
|
74869A
74869-95J02 Protector, Separator Bar[08.1987 - 08.1989] LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S |
74869-95J02 |
US $18.20 |
||
|
74881B
|
74881B
74881-95J02-06 Bar, Separator, No.1[08.1987 - 08.1989] LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
74881-95J02-06 |
US $133.95 |
||
|
74891A
|
74891A
74891-95J00-06 Cover, Separator Bar, No.1[08.1987 - 08.1989] LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
74891-95J00-06 |
US $6.99 |
||
|
74892A
|
74892A
74892-95J00-06 Cover, Separator Bar, No.2[08.1987 - 08.1989] LH6#,71,YH61,71..DX..(08S,09S) BROWN,TRIM4# |
74892-95J00-06 |
US $9.03 |
||
|
9014940010
|
9014940010
90149-40010 New Genuine Part |
90149-40010 |
US $1.60 |
||
|
9015440009
|
9015440009
90154-40009 New Genuine Part |
90154-40009 |
US $0.87 |
||
|
9015460009
|
9015460009
90154-60009 New Genuine Part |
90154-60009 |
US $1.60 |
||
|
9015940095
|
9015940095
90159-40095 New Genuine Part |
90159-40095 |
US $1.25 |
||
|
9015960111
|
9015960111
90159-60111 New Genuine Part |
90159-60111 |
US $2.33 |
||
| replacement | |||||
|
9015960111
|
9015960111
93315-16016 New Genuine Part |
93315-16016 |
US $1.22 |
||
|
9050116073
|
9050116073
90501-16073 New Genuine Part |
90501-16073 |
US $3.23 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $3.05 |
||
