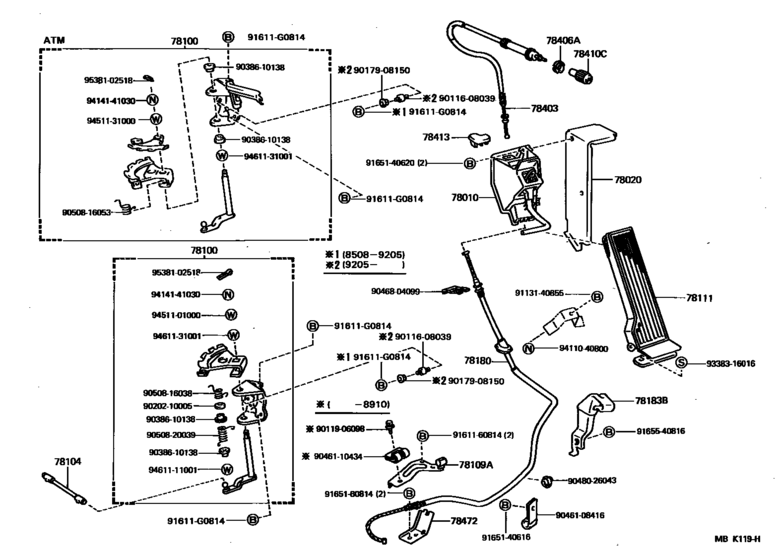

Accelerator Link ([08.1985 - ] (8508- )) Diagram Toyota HIACE
- Year
- 1985 - 1995
- Sales region
- Japan
- Frame
- LH80
- grade
- N
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE QUICK DELIVERY
- From
- 08.1985
- To
- 05.1995
- Gear Shift Type
- 4HC
- No.of Doors
- 4D
- Vehicle Model
- Hiace Quick Delivery
- Loading Capacity
- 125
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78202-90D00 Link, Accelerator[10.1989 - 05.1995] LH8# |
78202-90D00 |
US $113.57 |
||
|
78010
|
78010
78202-95010 Link, Accelerator[08.1985 - 10.1989] LH8# |
78202-95010 |
US $113.57 |
||
|
78020
|
78020
78114-90D03 Bracket Assy, Accelerator Control[08.1985 - 05.1995] LH8# |
78114-90D03 |
US $170.35 |
||
|
78100
|
78100
78100-25010 Link Assy, Accelerator[08.1988 - 05.1989] LH80 |
78100-25010 |
US $85.90 |
||
|
78100
|
78100
78100-25011 Link Assy, Accelerator[05.1989 - 10.1989] LH80 |
78100-25011 |
US $54.02 |
||
|
78100
|
78100
78100-95A01 Link Assy, Accelerator[08.1987 - 08.1988] LH80..4HC |
78100-95A01 |
US $62.90 |
||
|
78104
|
78104
78104-22140 Rod Sub-Assy, Accelerator Connecting, No.2[08.1988 - 10.1989] LH80 |
78104-22140 |
from US $7.08 |
||
|
78104
|
78104
78104-30120
Rod Sub-Assy, Accelerator Connecting, No.2
[08.1985 - 08.1988] LH8# |
78104-30120 |
— | ||
|
78109A
|
78109A
78109-95J00 Bracket Sub-Assy, Accelerator Wire Clamp[08.1985 - 08.1988] LH8# |
78109-95J00 |
US $22.57 |
||
|
78111
|
78111
78110-95410 Pedal, Accelerator[08.1985 - 05.1995] LH8# |
78110-95410 |
US $19.91 |
||
|
78180
|
78180
78150-90D01 Wire Assy, Accelerator[08.1985 - 08.1988] LH8# |
78150-90D01 |
US $66.98 |
||
|
78180
|
78180
78150-90D02 Wire Assy, Accelerator[08.1988 - 10.1989] LH80 |
78150-90D02 |
US $64.21 |
||
|
78183B
|
78183B
78183-90D00 Clamp, Accelerator Control Cable[08.1988 - 10.1989] LH80 |
78183-90D00 |
US $11.07 |
||
|
78403
|
78403
78404-90D00 Cable Sub-Assy, Throttle Control[08.1985 - 05.1995] LH8# |
78404-90D00 |
US $33.49 |
||
|
78406A
|
78406A
78314-95010 Nut, Choke[08.1985 - 05.1995] LH8# |
78314-95010 |
from US $1.88 |
||
|
78410C
|
78410C
78411-22010 Knob, Throttle Cable[08.1985 - 05.1995] LH8# |
78411-22010 |
US $8.91 |
||
|
78413
|
78413
78413-95701 Cover, Throttle Control Cable[10.1989 - 05.1995] LH8# |
78413-95701 |
US $2.18 |
||
|
78472
|
78472
78472-25010 Support, Throttle Control Cable[10.1989 - 05.1995] LH8# |
78472-25010 |
US $35.67 |
||
| replacement | |||||
|
78472
|
78472
78472-25011 Support, Throttle Control Cable[10.1989 - 05.1995] LH8# |
78472-25011 |
US $22.42 |
||
|
78472
|
78472
78472-26010 Support, Throttle Control Cable[08.1988 - 10.1989] LH80 |
78472-26010 |
US $21.69 |
||
|
91611G0814
|
91611G0814
91611-G0814
Bolt(For Oil Receiver Pipe)
|
91611-G0814 |
— | ||
| replacement | |||||
|
91611G0814
|
91611G0814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $3.67 |
||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.28 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.07 |
||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $3.84 |
||
|
9046108416
|
9046108416
90461-08416
New Genuine Part
|
90461-08416 |
— | ||
|
9046110434
|
9046110434
90461-10434 Clamp (For Accelerator Wire Set) |
90461-10434 |
US $3.06 |
||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9048026043
|
9048026043
90480-26043
Grommet (For Accelerator Wire)
|
90480-26043 |
— | ||
|
9050816038
|
9050816038
90508-16038
New Genuine Part
|
90508-16038 |
— | ||
|
9050816053
|
9050816053
90508-16053 Spring, Torsion (For Accelerator Link) |
90508-16053 |
US $4.22 |
||
|
9050820039
|
9050820039
90508-20039 New Genuine Part |
90508-20039 |
US $4.51 |
||
|
9113140855
|
9113140855
91131-40855 Bolt, Accelerator Pedal Stopper |
91131-40855 |
US $3.49 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165540816
|
9165540816
91655-40816 New Genuine Part |
91655-40816 |
US $1.89 |
||
| replacement | |||||
|
9165540816
|
9165540816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9338316016
|
9338316016
93383-16016 New Genuine Part |
93383-16016 |
US $1.75 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9414141030
|
9414141030
94141-41030 New Genuine Part |
94141-41030 |
US $2.33 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9451131000
|
9451131000
94511-31000 New Genuine Part |
94511-31000 |
US $2.18 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.28 |
||
|
9461131001
|
9461131001
94611-31001 New Genuine Part |
94611-31001 |
US $2.18 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
