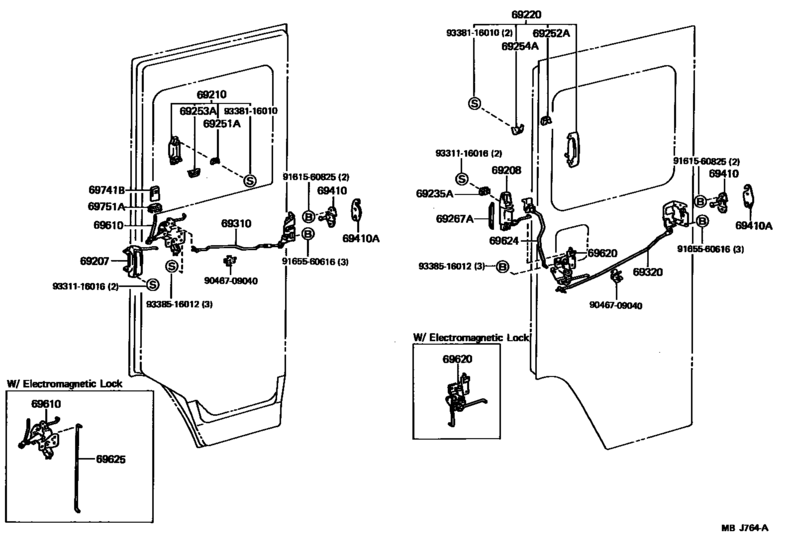

Front Door Lock & Handle ([08.1985 - ] (8508- )) Diagram Toyota HIACE
- Year
- 1985 - 1995
- Sales region
- Japan
- Frame
- LH80
- grade
- N
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE QUICK DELIVERY
- From
- 08.1985
- To
- 05.1995
- Gear Shift Type
- 4HC
- No.of Doors
- 4D
- Vehicle Model
- Hiace Quick Delivery
- Loading Capacity
- 125
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69207
|
69207
69270-90D02-06 Handle Sub-Assy, Front Door Inside, Rh[08.1985 - 08.1987] LH80 BROWN,BROWN |
69270-90D02-06 |
US $30.43 |
||
|
69207
|
69207
69270-90D03 Handle Sub-Assy, Front Door Inside, Rh[08.1987 - 04.1988] LH8# BROWN |
69270-90D03 |
US $47.61 |
||
| replacement | |||||
|
69207
|
69207
69270-90D03-B0 Handle Sub-Assy, Front Door Inside, Rh[08.1987 - 04.1988] LH8# BROWN |
69270-90D03-B0 |
US $26.57 |
||
|
69208
|
69208
69280-90D01-05 Handle Sub-Assy, Front Door Inside, Lh[08.1985 - 08.1987] LH80 BEIGE,BEIGE |
69280-90D01-05 |
US $30.43 |
||
|
69208
|
69208
69280-90D02 Handle Sub-Assy, Front Door Inside, Lh[08.1987 - 04.1988] LH80 BEIGE |
69280-90D02 |
US $47.61 |
||
| replacement | |||||
|
69208
|
69208
69280-90D02-B0 Handle Sub-Assy, Front Door Inside, Lh[08.1987 - 04.1988] LH80 BEIGE |
69280-90D02-B0 |
US $26.57 |
||
|
69210
|
69210
69240-95A90
Handle Assy, Front Door, Outside Rh
[08.1985 - 10.1990] LH8# |
69240-95A90 |
— | ||
|
69220
|
69220
69240-95A90
Handle Assy, Front Door, Outside Rh
[08.1985 - 10.1990] LH8# |
69240-95A90 |
— | ||
|
69235A
|
69235A
69235-95J00-15
Plug, Slide Door Inside Handle Case
[08.1985 - 08.1987] LH80 BEIGE,BEIGE |
69235-95J00-15 |
— | ||
| replacement | |||||
|
69235A
|
69235A
69235-95J00-B0 Plug, Slide Door Inside Handle Case (GRAY)[08.1985 - 08.1987] LH80 BEIGE,BEIGE |
69235-95J00-B0 |
US $2.62 |
||
|
69251A
|
69251A
69246-95A00 Pad, Slide Door Outside Handle, No.2 Rh[08.1985 - 10.1990] LH8# |
69246-95A00 |
US $4.02 |
||
|
69252A
|
69252A
69246-95A00 Pad, Slide Door Outside Handle, No.2 Rh[08.1985 - 10.1990] LH8# |
69246-95A00 |
US $4.02 |
||
|
69253A
|
69253A
69247-95A00 Pad, Slide Door Outside Handle, No.2 Rh[08.1985 - 10.1990] LH8# |
69247-95A00 |
US $4.02 |
||
|
69254A
|
69254A
69247-95A00 Pad, Slide Door Outside Handle, No.2 Rh[08.1985 - 10.1990] LH8# |
69247-95A00 |
US $4.02 |
||
|
69267A
|
69267A
69267-90D00 Seal, Slide Door Inside Handle, No.1[08.1985 - 08.1987] LH80 |
69267-90D00 |
US $5.53 |
||
|
69310
|
69310
69310-90D01
Lock Assy, Front Door, Rh
[08.1985 - 08.1987] LH80 |
69310-90D01 |
— | ||
|
69310
|
69310
69310-90D02 Lock Assy, Front Door, Rh[08.1987 - 10.1990] LH8# |
69310-90D02 |
US $80.08 |
||
|
69320
|
69320
69320-90D01 Lock Assy, Front Door, Lh[08.1985 - 08.1987] LH80 |
69320-90D01 |
US $81.54 |
||
|
69320
|
69320
69320-90D02 Lock Assy, Front Door, Lh[08.1987 - 10.1990] LH8# |
69320-90D02 |
US $80.08 |
||
|
69410
|
69410
69470-95700 Plate Assy, Front Door Lock Striker[08.1985 - 10.1990] LH8# |
69470-95700 |
US $23.59 |
||
|
69410A
|
69410A
69473-95700 Shim, Front Door Lock Striker Plate[08.1985 - 04.1988] LH8# |
69473-95700 |
US $6.99 |
||
|
69610
|
69610
69610-26010 Control Assy, Front Slide Door Lock Remote, Rh[08.1991 - 05.1995] LH8# |
69610-26010 |
US $63.34 |
||
|
69610
|
69610
69610-26020 Control Assy, Front Slide Door Lock Remote, Rh[08.1991 - 05.1995] LH8#..N ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
69610-26020 |
US $63.34 |
||
|
69610
|
69610
69610-90D01 Control Assy, Front Slide Door Lock Remote, Rh[08.1985 - 08.1987] LH80 |
69610-90D01 |
US $63.48 |
||
| replacement | |||||
|
69610
|
69610
69610-26030 Control Assy, Front Slide Door Lock Remote, Rh[08.1985 - 08.1987] LH80 |
69610-26030 |
US $63.77 |
||
|
69610
|
69610
69610-90D02 Control Assy, Front Slide Door Lock Remote, Rh[08.1985 - 08.1987] LH80..N W/*EL |
69610-90D02 |
US $63.48 |
||
| replacement | |||||
|
69610
|
69610
69610-26040 Control Assy, Front Slide Door Lock Remote, Rh[08.1985 - 08.1987] LH80..N W/*EL |
69610-26040 |
US $63.77 |
||
|
69610
|
69610
69610-90D03 Control Assy, Front Slide Door Lock Remote, Rh[08.1987 - 08.1991] LH8# |
69610-90D03 |
US $63.77 |
||
| replacement | |||||
|
69610
|
69610
69610-26010 Control Assy, Front Slide Door Lock Remote, Rh[08.1987 - 08.1991] LH8# |
69610-26010 |
US $63.34 |
||
|
69610
|
69610
69610-90D04 Control Assy, Front Slide Door Lock Remote, Rh[08.1987 - 04.1988] LH8#..N W/*EL |
69610-90D04 |
US $63.77 |
||
| replacement | |||||
|
69610
|
69610
69610-26020 Control Assy, Front Slide Door Lock Remote, Rh[08.1987 - 04.1988] LH8#..N W/*EL |
69610-26020 |
US $63.34 |
||
|
69620
|
69620
69620-90D00 Control Assy, Front Slide Door Lock Remote, Lh[08.1985 - 08.1987] LH80 |
69620-90D00 |
US $63.48 |
||
|
69620
|
69620
69620-90D01 Control Assy, Front Slide Door Lock Remote, Lh[08.1985 - 08.1987] LH80..N W/*EL |
69620-90D01 |
US $63.48 |
||
|
69620
|
69620
69620-90D02 Control Assy, Front Slide Door Lock Remote, Lh[08.1987 - 05.1995] LH8# |
69620-90D02 |
US $63.34 |
||
|
69620
|
69620
69620-90D03 Control Assy, Front Slide Door Lock Remote, Lh[08.1987 - 04.1988] LH8#..N W/*EL |
69620-90D03 |
US $63.34 |
||
|
69624
|
69624
69604-90D02-05 Rod, Front Slide Door Lock Control Push, Lh[08.1985 - 08.1987] LH80 BEIGE,BEIGE |
69604-90D02-05 |
US $11.79 |
||
|
69625
|
69625
69625-90D00 Rod, Front Slide Door, Lock Control[08.1985 - 04.1988] LH8#..N W/*EL |
69625-90D00 |
US $10.19 |
||
|
69741B
|
69741B
69741-20020-01
Knob, Front Door Lock Control
[08.1985 - 08.1987] LH80 BLACK,BLACK |
69741-20020-01 |
— | ||
| replacement | |||||
|
69741B
|
69741B
69741-32010-20 Knob, Front Door Lock Control[08.1985 - 08.1987] LH80 BLACK,BLACK |
69741-32010-20 |
US $4.89 |
||
|
69741B
|
69741B
69741-90K00-01 Knob, Front Door Lock Control[03.1988 - 04.1988] LH8# BLACK,BLACK |
69741-90K00-01 |
US $4.80 |
||
| replacement | |||||
|
69741B
|
69741B
69741-90K00-C0 Knob, Front Door Lock Control[03.1988 - 04.1988] LH8# BLACK,BLACK |
69741-90K00-C0 |
US $3.52 |
||
|
69751A
|
69751A
69751-12020-01 Holder, Door Locking Button Collar(For Front Door)[10.1988 - 05.1995] LH8# BLACK,TRIM4# |
69751-12020-01 |
US $3.64 |
||
| replacement | |||||
|
69751A
|
69751A
69751-20031-20 Holder, Door Locking(For Rear Door) BLACK[10.1988 - 05.1995] LH8# BLACK,TRIM4# |
69751-20031-20 |
US $4.54 |
||
|
69751A
|
69751A
69751-20031-01
Holder, Front Door Locking Button Collar
[08.1985 - 08.1987] LH80 BLACK,BLACK |
69751-20031-01 |
— | ||
| replacement | |||||
|
69751A
|
69751A
69751-20031-20 Holder, Door Locking(For Rear Door) BLACK[08.1985 - 08.1987] LH80 BLACK,BLACK |
69751-20031-20 |
US $4.54 |
||
|
9046709040
|
9046709040
90467-09040 Clamp(For Hood Lock Control Cable) |
90467-09040 |
US $1.89 |
||
| replacement | |||||
|
9046709040
|
9046709040
90467-09025 Clamp(For Hood Lock Control Cable) |
90467-09025 |
US $0.96 |
||
|
9161560825
|
9161560825
91615-60825
Bolt(For Intake Manifold To Exhaust Manifold)
|
91615-60825 |
— | ||
| replacement | |||||
|
9161560825
|
9161560825
91611-60822 Bolt |
91611-60822 |
from US $1.50 |
||
|
9165560616
|
9165560616
91655-60616
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91655-60616 |
— | ||
| replacement | |||||
|
9165560616
|
9165560616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9331116016
|
9331116016
93311-16016 SCREW |
93311-16016 |
US $1.92 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $0.87 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $1.02 |
||
