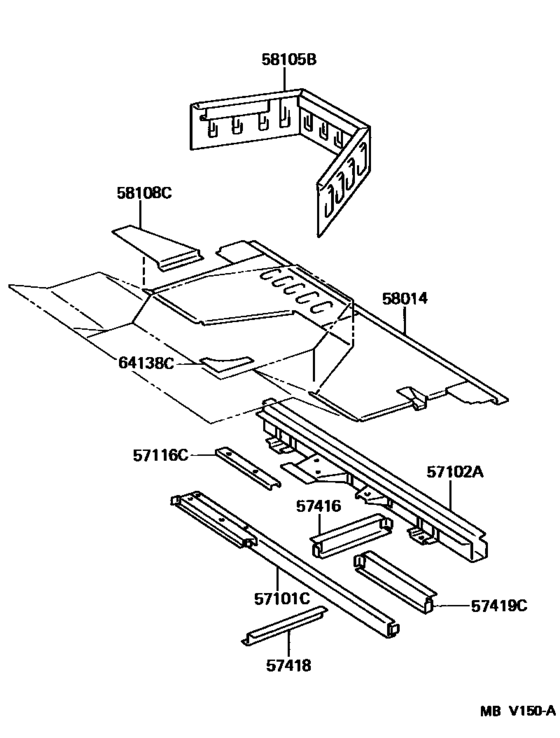

Front Floor Panel & Front Floor Member ([08.1990 - ] (9008- )) Diagram Toyota HIACE
- Year
- 1985 - 1995
- Sales region
- Japan
- Frame
- LH80
- grade
- N
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE QUICK DELIVERY
- From
- 08.1985
- To
- 05.1995
- Gear Shift Type
- 4HC
- No.of Doors
- 4D
- Vehicle Model
- Hiace Quick Delivery
- Loading Capacity
- 125
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57101C
|
57101C
57101-90D01 Crossmember Sub-Assy, Floor, No.1[01.1990 - 05.1995] LH8# |
57101-90D01 |
US $145.60 |
||
|
57102A
|
57102A
57102-26210 Crossmenber Sub-Assy, Floor, No.2[09.1993 - 03.1995] LH8# |
57102-26210 |
US $487.76 |
||
|
57102A
|
57102A
57102-26270 Crossmenber Sub-Assy, Floor, No.2[03.1995 - 05.1995] LH8# |
57102-26270 |
US $538.72 |
||
|
57102A
|
57102A
57102-90D03 Crossmenber Sub-Assy, Floor, No.2[01.1990 - 09.1993] LH8# |
57102-90D03 |
US $610.06 |
||
|
57116C
|
57116C
57116-90D00 Crossmember, Floor, No.6[01.1990 - 05.1995] LH85;LH80..N |
57116-90D00 |
US $25.19 |
||
|
57416
|
57416
57416-90D00 Rail, Floor Side, Rear Lh[01.1990 - 05.1995] LH8# |
57416-90D00 |
US $20.82 |
||
|
57418
|
57418
57418-90D01 Reinforcement, Front Floor Under, Lh[01.1990 - 05.1995] LH8# |
57418-90D01 |
US $25.63 |
||
|
57419C
|
57419C
57419-90D00 Reinforcement, Front Floor Under, Lh No.2[01.1990 - 05.1995] LH8# |
57419-90D00 |
US $20.82 |
||
|
58014
|
58014
58014-26050 Panel Sub-Assy, Front Floor, Rear Lower[09.1993 - 05.1995] LH8#..N; LH85..D ｱﾘ(ﾙ-ﾑ ｾﾊﾟﾚ-ﾀ=ｽﾗｲﾄﾞｼｷ) |
58014-26050 |
US $505.23 |
||
|
58014
|
58014
58014-26060 Panel Sub-Assy, Front Floor, Rear Lower[09.1993 - 05.1995] LH8#..N ｱﾘ(ｼﾞﾖｼﾕｾｷ); LH85..D ｱﾘ(ｼﾞﾖｼﾕｾｷ & ﾙ-ﾑｾﾊﾟﾚ-ﾀ=ｽﾗｲﾄﾞｼｷ) |
58014-26060 |
US $509.60 |
||
|
58014
|
58014
58014-90D20 Panel Sub-Assy, Front Floor, Rear Lower[01.1990 - 09.1993] LH8#..N; LH85..D ｱﾘ(ﾙ-ﾑ ｾﾊﾟﾚ-ﾀ=ｽﾗｲﾄﾞｼｷ) |
58014-90D20 |
US $505.23 |
||
|
58014
|
58014
58014-90D21 Panel Sub-Assy, Front Floor, Rear Lower[01.1990 - 09.1993] LH8#..N ｱﾘ(ｼﾞﾖｼﾕｾｷ); LH85..D ｱﾘ(ｼﾞﾖｼﾕｾｷ & ﾙ-ﾑｾﾊﾟﾚ-ﾀ=ｽﾗｲﾄﾞｼｷ) |
58014-90D21 |
US $505.23 |
||
|
58105B
|
58105B
58105-90D12 Panel Sub-Assy, Front Floor Rear Upper Sub[01.1990 - 05.1995] LH80 |
58105-90D12 |
US $253.34 |
||
|
58105B
|
58105B
58105-90D13 Panel Sub-Assy, Front Floor Rear Upper Sub[01.1990 - 05.1995] LH80 ｱﾘ(ｼﾞﾖｼﾕｾｷ) |
58105-90D13 |
US $253.34 |
||
| replacements | |||||
|
58105B
|
58105B
58105-90D12 Panel Sub-Assy, Front Floor Rear Upper Sub[01.1990 - 05.1995] LH80 ｱﾘ(ｼﾞﾖｼﾕｾｷ) |
58105-90D12 |
US $253.34 |
||
|
58105B
|
58105B
91651-40614 Bolt[01.1990 - 05.1995] LH80 ｱﾘ(ｼﾞﾖｼﾕｾｷ) |
91651-40614 |
from US $0.78 |
||
|
58108C
|
58108C
58108-90D01 Panel Sub-Assy, Footrest[01.1990 - 05.1995] LH8# |
58108-90D01 |
US $80.08 |
||
|
64138C
|
64138C
64138-90500 Patch, Back Body, Inner[01.1990 - 05.1995] LH8# |
64138-90500 |
US $8.59 |
||
