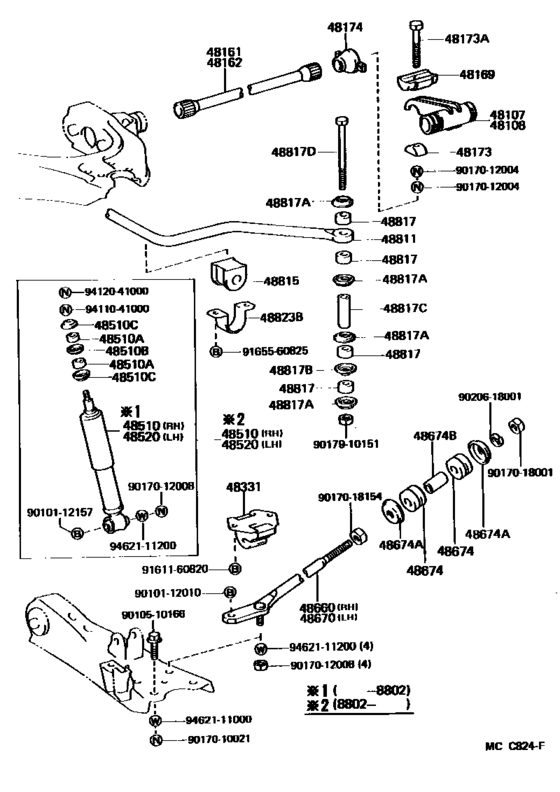

Front Spring & Shock Absorber ([08.1985 - ] (8508- )LH80) Diagram Toyota HIACE
- Year
- 1985 - 1995
- Sales region
- Japan
- Frame
- LH80
- grade
- N
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE QUICK DELIVERY
- From
- 08.1985
- To
- 05.1995
- Gear Shift Type
- 4HC
- No.of Doors
- 4D
- Vehicle Model
- Hiace Quick Delivery
- Loading Capacity
- 125
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48107
|
48107
48107-26020
Arm Sub-Assy, Anchor, Rh
[08.1985 - 05.1995] LH80 |
48107-26020 |
— | ||
|
48108
|
48108
48108-26020 Arm Sub-Assy, Anchor, Lh[08.1985 - 05.1995] LH80 |
48108-26020 |
US $50.23 |
||
|
48161
|
48161
48161-26080 Spring, Torsion Bar, Rh[08.1985 - 05.1995] LH80 |
48161-26080 |
US $174.72 |
||
|
48162
|
48162
48162-26080 Spring, Torsion Bar, Lh[08.1985 - 05.1995] LH80 |
48162-26080 |
US $174.72 |
||
|
48169
|
48169
48169-26020 Swivel, Anchor Arm[08.1985 - 05.1995] LH80 |
48169-26020 |
US $13.10 |
||
|
48173
|
48173
48173-27010 Seat, Anchor Arm Adjuster[08.1985 - 05.1995] LH8# |
48173-27010 |
from US $7.04 |
||
|
48173A
|
48173A
90101-12104 Bolt, Hexagon(For Anchor Arm Adjusting)[02.1995 - 05.1995] LH8# |
90101-12104 |
from US $4.52 |
||
|
48173A
|
48173A
90101-12138
Bolt, Hexagon(For Anchor Arm Adjusting)
[08.1985 - 04.1988] LH8# |
90101-12138 |
— | ||
|
48174
|
48174
48174-26010 Cover, Torsion Bar Dust[08.1985 - 05.1995] LH8# |
48174-26010 |
US $10.08 |
||
|
48331
|
48331
48331-26030 Bumper, Front Spring, No.1[08.1985 - 05.1995] LH80..125 |
48331-26030 |
US $12.23 |
||
|
48510
|
48510
48511-26110 Absorber Assy, Shock, Front Rh[08.1985 - 02.1988] LH80 |
48511-26110 |
US $99.01 |
||
| replacement | |||||
|
48510
|
48510
48511-29486 Absorber Assy, Shock, Front Rh[08.1985 - 02.1988] LH80 |
48511-29486 |
from US $99.01 |
||
|
48510
|
48510
48511-29485 Absorber Assy, Shock, Front Rh[02.1988 - 05.1995] LH80 マーク ４８５１１−２６１１０ |
48511-29485 |
US $97.55 |
||
| replacement | |||||
|
48510
|
48510
48511-29486 Absorber Assy, Shock, Front Rh[02.1988 - 05.1995] LH80 マーク ４８５１１−２６１１０ |
48511-29486 |
from US $99.01 |
||
|
48510A
|
48510A
90948-01003 Rubber Cushion[08.1985 - 05.1995] LH8# |
90948-01003 |
from US $1.85 |
||
|
48510B
|
48510B
90948-02017 Retainer, Cushion, No.1(For Front Shock Absorber)[08.1985 - 04.1988] LH8# |
90948-02017 |
from US $1.52 |
||
|
48510C
|
48510C
90948-02002 Retainer, Steering Damper Cushion[08.1985 - 05.1995] LH8# |
90948-02002 |
from US $1.25 |
||
|
48520
|
48520
48511-26110 Absorber Assy, Shock, Front Rh[08.1985 - 02.1988] LH80 |
48511-26110 |
US $99.01 |
||
| replacement | |||||
|
48520
|
48520
48511-29486 Absorber Assy, Shock, Front Rh[08.1985 - 02.1988] LH80 |
48511-29486 |
from US $99.01 |
||
|
48520
|
48520
48511-29485 Absorber Assy, Shock, Front Rh[02.1988 - 05.1995] LH80 マーク ４８５１１−２６１１０ |
48511-29485 |
US $97.55 |
||
| replacement | |||||
|
48520
|
48520
48511-29486 Absorber Assy, Shock, Front Rh[02.1988 - 05.1995] LH80 マーク ４８５１１−２６１１０ |
48511-29486 |
from US $99.01 |
||
|
48660
|
48660
48660-26011
Bar Assy, Strut, Rh
[08.1985 - 05.1995] LH80 |
48660-26011 |
— | ||
|
48670
|
48670
48670-26011 Bar Assy, Strut, Lh[08.1985 - 05.1995] LH80 |
48670-26011 |
US $59.55 |
||
|
48674
|
48674
48674-26010 Cushion, Strut Bar[12.1987 - 05.1995] LH80 |
48674-26010 |
from US $12.95 |
||
|
48674
|
48674
48674-29065 Cushion, Strut Bar[08.1985 - 12.1987] LH80 |
48674-29065 |
US $21.11 |
||
| replacements | |||||
|
48674
|
48674
48674-26010 Cushion, Strut Bar[08.1985 - 12.1987] LH80 |
48674-26010 |
from US $12.95 |
||
|
48674
|
48674
90948-02062 Retainer, Cushion(For Strut Bar Cushion)[08.1985 - 12.1987] LH80 |
90948-02062 |
US $5.60 |
||
|
48674A
|
48674A
90948-02062 Retainer, Cushion(For Strut Bar Cushion)[08.1985 - 05.1995] LH80 |
90948-02062 |
US $5.60 |
||
|
48674B
|
48674B
90387-18005 Collar(For Strut Bar Cushion)[08.1985 - 05.1995] LH80 |
90387-18005 |
from US $5.46 |
||
|
48811
|
48811
48811-26060 Bar, Stabilizer, Front[08.1985 - 05.1995] LH80 |
48811-26060 |
US $196.56 |
||
|
48815
|
48815
48815-26020 Bush, Front Stabilizer Bar, No.1[08.1985 - 05.1995] LH80 |
48815-26020 |
from US $7.16 |
||
|
48817
|
48817
90948-01002 Cushion[08.1985 - 04.1988] LH8# |
90948-01002 |
from US $2.75 |
||
|
48817A
|
48817A
90948-02004 Cushion Retainer[08.1985 - 05.1995] LH8# |
90948-02004 |
from US $1.60 |
||
|
48817B
|
48817B
90948-02005 Retainer No.2[08.1985 - 04.1988] LH8# |
90948-02005 |
from US $1.40 |
||
|
48817C
|
48817C
90440-14004 Collar(For Stabilizer Bar)[08.1985 - 05.1995] LH80 |
90440-14004 |
US $9.44 |
||
|
48817D
|
48817D
90101-10090 Bolt(For Front Stabilizer)[08.1985 - 05.1995] LH80 |
90101-10090 |
US $6.08 |
||
|
48823B
|
48823B
48823-26050
Cover, Front Stabilizer Bracket
[08.1985 - 05.1995] LH80 |
48823-26050 |
— | ||
| replacement | |||||
|
48823B
|
48823B
48823-26120 Cover, Stabilizer Link(For Rear)[08.1985 - 05.1995] LH80 |
48823-26120 |
US $13.92 |
||
|
9010112010
|
9010112010
90101-12010 Bolt, Hexagon(For Front Disc Brake Caliper) |
90101-12010 |
US $4.02 |
||
|
9010112157
|
9010112157
90101-12157 New Genuine Part |
90101-12157 |
US $4.96 |
||
|
9010510166
|
9010510166
90105-10166 BOLT |
90105-10166 |
US $3.20 |
||
|
9017010021
|
9017010021
90170-10021 Nut(For Steering Center Arm) |
90170-10021 |
from US $0.74 |
||
|
9017012004
|
9017012004
90170-12004 NUT |
90170-12004 |
from US $1.25 |
||
|
9017012008
|
9017012008
90170-12008 NUT |
90170-12008 |
from US $1.40 |
||
|
9017018001
|
9017018001
90170-18001 NUT |
90170-18001 |
US $5.92 |
||
|
9017018154
|
9017018154
90170-18154 New Genuine Part |
90170-18154 |
from US $2.59 |
||
|
9017910151
|
9017910151
90179-10151
Nut(For Front Stabilizer Bar)
|
90179-10151 |
— | ||
| replacement | |||||
|
9017910151
|
9017910151
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.82 |
||
|
9020618001
|
9020618001
90206-18001 WASHER |
90206-18001 |
from US $2.56 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
|
9165560825
|
9165560825
91655-60825 Bolt, Radiator Side Support Plate |
91655-60825 |
US $2.18 |
||
| replacement | |||||
|
9165560825
|
9165560825
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9462111000
|
9462111000
94621-11000 Washer, Spring(For Steering Center Arm) |
94621-11000 |
from US $1.93 |
||
|
9462111200
|
9462111200
94621-11200 New Genuine Part |
94621-11200 |
US $3.20 |
||
