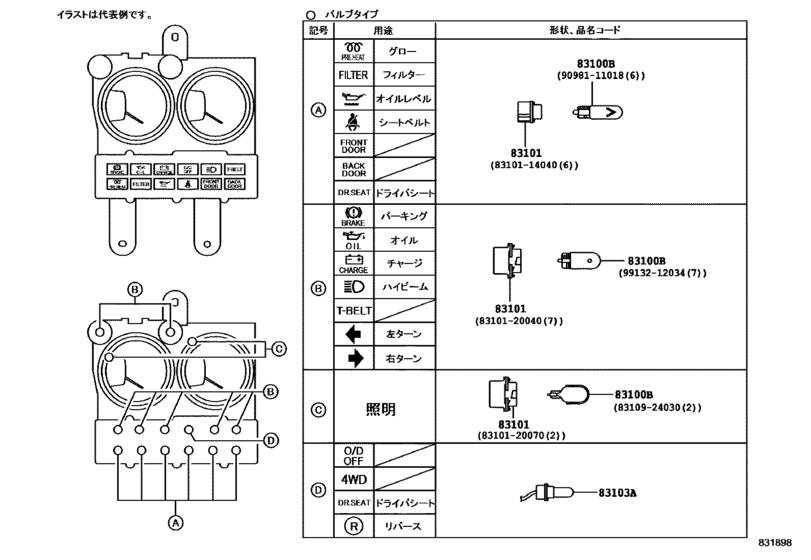

Meter ([08.1985 - ] ﾊﾞﾙﾌﾞ & ｿｹｯﾄ (8508- )) Diagram Toyota HIACE
- Year
- 1985 - 1995
- Sales region
- Japan
- Frame
- LH80
- grade
- N
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE QUICK DELIVERY
- From
- 08.1985
- To
- 05.1995
- Gear Shift Type
- 4HC
- No.of Doors
- 4D
- Vehicle Model
- Hiace Quick Delivery
- Loading Capacity
- 125
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24030 Bulb, Combination Meter, No.1[08.1985 - 05.1995] LH8# １２Ｖ ３．４Ｗ グリーン キャップ付き |
83109-24030 |
from US $3.14 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1985 - 05.1995] LH8# １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1985 - 05.1995] LH8# １２Ｖ ３．４Ｗ |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1985 - 05.1995] LH8# １２Ｖ ３．４Ｗ |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1985 - 05.1995] LH8# バルブ＝１２Ｖ １．４Ｗ |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[08.1985 - 05.1995] LH8# バルブ＝１２Ｖ ３．４Ｗ |
83101-20040 |
from US $1.77 |
||
|
83101
|
83101
83101-20070 Socket Sub-Assy, Combination Meter Bulb[08.1985 - 05.1995] LH8# ｼｮｳﾒｲ,バルブ＝１２Ｖ ３．４Ｗ |
83101-20070 |
US $7.84 |
||
|
83103A
|
83103A
83103-90D00 Lamp Sub-Assy, Meter[08.1985 - 08.1987] LH80 |
83103-90D00 |
US $63.48 |
||
|
83103A
|
83103A
83103-90D01 Lamp Sub-Assy, Meter[08.1987 - 10.1989] LH80..4HC |
83103-90D01 |
US $63.34 |
||
