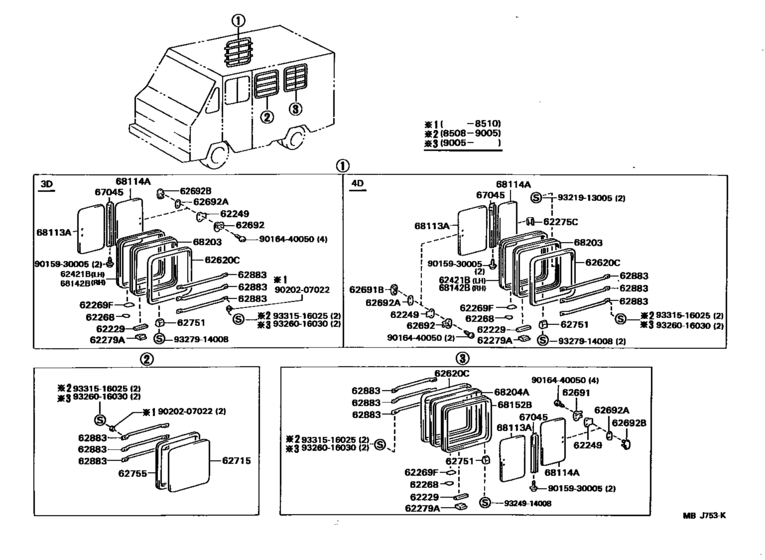

Side Window ([08.1985 - ] (8508- )) Diagram Toyota HIACE
- Year
- 1985 - 1995
- Sales region
- Japan
- Frame
- LH80
- grade
- N
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE QUICK DELIVERY
- From
- 08.1985
- To
- 05.1995
- Gear Shift Type
- 4HC
- No.of Doors
- 4D
- Vehicle Model
- Hiace Quick Delivery
- Loading Capacity
- 125
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62229
|
62229
62229-95J00 Packing, Side Window[08.1985 - 05.1995] LH8#..N; LH8#..D..CBU |
62229-95J00 |
US $1.92 |
||
|
62249
|
62249
62249-95700 Plate, Side Window, Rh[08.1985 - 05.1995] LH80..D..4D; LH80..N..4D |
62249-95700 |
from US $1.58 |
||
|
62268
|
62268
62268-90A00 Film, Side Window Frame, B[08.1985 - 05.1995] LH8#..N; LH8#..D..CBU |
62268-90A00 |
US $2.97 |
||
|
62269F
|
62269F
62269-90A00 Film, Side Window Frame, Rh[08.1985 - 05.1995] LH8#..N; LH8#..D..CBU |
62269-90A00 |
US $2.34 |
||
|
62275C
|
62275C
62275-90D00
Cover, Side Window
[08.1985 - 05.1995] LH80..4D |
62275-90D00 |
— | ||
|
62279A
|
62279A
62279-90A00
Spacer, Side Window Frame
[08.1985 - 05.1995] LH8#..N; LH8#..D..CBU |
62279-90A00 |
— | ||
|
62279A
|
62279A
62279-90K00 Spacer, Side Window Frame, Upper[08.1985 - 05.1995] LH8# |
62279-90K00 |
from US $1.23 |
||
|
62421B
|
62421B
62421-90D03 Run, Fr0Nt Door Window, Lh[08.1985 - 05.1995] LH8# |
62421-90D03 |
US $43.83 |
||
|
62620C
|
62620C
62375-90D04 Clip, Side Window Outer Sash, No.1 (For Slide Type)[08.1985 - 04.1988] LH8# |
62375-90D04 |
US $75.71 |
||
|
62691
|
62691
62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)[04.1988 - 05.1995] LH80..D..4D; LH80..N..4D |
62910-95703 |
from US $12.07 |
||
|
62691B
|
62691B
62793-95A01
Retainer, Side Window Lock, No.1
[04.1988 - 05.1995] LH80..D..4D; LH80..N..4D |
62793-95A01 |
— | ||
| replacement | |||||
|
62691B
|
62691B
62793-95704 Retainer, Side Window Lock, No.1[04.1988 - 05.1995] LH80..D..4D; LH80..N..4D |
62793-95704 |
from US $7.47 |
||
|
62692
|
62692
62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)[08.1985 - 05.1995] LH80..4D |
62910-95703 |
from US $12.07 |
||
|
62692A
|
62692A
62792-95A00 Packing, Side Rear Window, Rh[08.1985 - 05.1995] LH80..4D |
62792-95A00 |
from US $1.64 |
||
|
62692B
|
62692B
62793-95A01
Retainer, Side Window Lock, No.1
[08.1985 - 05.1995] LH80..4D |
62793-95A01 |
— | ||
| replacement | |||||
|
62692B
|
62692B
62793-95704 Retainer, Side Window Lock, No.1[08.1985 - 05.1995] LH80..4D |
62793-95704 |
from US $7.47 |
||
|
62715
|
62715
62115-90D02
Glass, Side Window, No.1(For Fixed Type)
[08.1985 - 04.1988] LH8# ＊ＴＥＭ，厚さ＝３．５ |
62115-90D02 |
— | ||
| replacement | |||||
|
62715
|
62715
62711-25010
Window Assy, Side, Rear Rh
[08.1985 - 04.1988] LH8# ＊ＴＥＭ，厚さ＝３．５ |
62711-25010 |
— | ||
|
62751
|
62751
62751-95661
Stop, Side Front Window Glass, Rh
[04.1988 - 05.1995] LH8# |
62751-95661 |
— | ||
|
62755
|
62755
62153-90D02 Weaterstrip, Rear Side Window[08.1985 - 04.1988] LH8# |
62153-90D02 |
US $75.71 |
||
|
62883
|
62883
62895-90D03 Guard Assy, Side Window[08.1985 - 04.1988] LH80..4D L=715.5 |
62895-90D03 |
US $49.94 |
||
|
62883
|
62883
62895-90D04 Guard Assy, Side Window[08.1985 - 04.1988] LH80..4D W/RR DOOR,L=588.4 |
62895-90D04 |
US $42.08 |
||
|
67045
|
67045
67045-90D00 Frame Sub-Assy, Slide Window, Center[04.1988 - 05.1995] LH8#..3D LH; LH80..N..4D LH; LH80..D..4D ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ),LH |
67045-90D00 |
US $80.08 |
||
|
67045
|
67045
67045-90D01 Frame Sub-Assy, Slide Window, Center[04.1988 - 05.1995] LH80..N..4D RH; LH80..D..4D ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ),RH |
67045-90D01 |
US $80.08 |
||
|
68113A
|
68113A
68113-90D04 Glass, Rear Door, Front[12.1987 - 04.1988] LH8#..3D RR SLIDE(RH); LH8# RR SLIDE(LH) |
68113-90D04 |
US $206.75 |
||
| replacement | |||||
|
68113A
|
68113A
62115-25010
Glass, Rear Door, Front
[12.1987 - 04.1988] LH8#..3D RR SLIDE(RH); LH8# RR SLIDE(LH) |
62115-25010 |
— | ||
|
68113A
|
68113A
68113-90D05
Glass, Rear Door, Front
[12.1987 - 04.1988] LH80..4D RR SLIDE(RH) |
68113-90D05 |
— | ||
|
68114A
|
68114A
68114-90D04 Glass, Rear Door, Rear[12.1987 - 04.1988] LH8#..3D RR SLIDE(RH); LH8# RR SLIDE(LH) |
68114-90D04 |
US $206.75 |
||
| replacement | |||||
|
68114A
|
68114A
62117-25010
Glass, Rear Door, Rear
[12.1987 - 04.1988] LH8#..3D RR SLIDE(RH); LH8# RR SLIDE(LH) |
62117-25010 |
— | ||
|
68114A
|
68114A
68114-90D05
Glass, Rear Door, Rear
[12.1987 - 04.1988] LH80..4D RR SLIDE(RH) |
68114-90D05 |
— | ||
|
68142B
|
68142B
68142-90D06 Run, Rear Door Window, Rh[04.1988 - 05.1995] LH80..4D |
68142-90D06 |
US $49.50 |
||
|
68152B
|
68152B
68152-90D04 Run, Rear Door Window, Lh[04.1988 - 05.1995] LH8#..CBU |
68152-90D04 |
US $55.62 |
||
|
68203
|
68203
68203-90D06 Frame Sub-Assy, Rear Door Window, Outer Rh[04.1988 - 05.1995] LH80..4D |
68203-90D06 |
US $174.72 |
||
|
68204A
|
68204A
68204-90D04 Frame Sub-Assy, Rear Door Window, Outer Lh[04.1988 - 05.1995] LH8#..CBU |
68204-90D04 |
US $189.28 |
||
|
9015930005
|
9015930005
90159-30005 SCREW |
90159-30005 |
from US $1.44 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.88 |
||
|
9020207022
|
9020207022
90202-07022 New Genuine Part |
90202-07022 |
US $1.60 |
||
|
9321913005
|
9321913005
93219-13005 New Genuine Part |
93219-13005 |
US $2.48 |
||
|
9324914008
|
9324914008
93249-14008 New Genuine Part |
93249-14008 |
US $1.12 |
||
|
9326016030
|
9326016030
93260-16030 New Genuine Part |
93260-16030 |
US $1.60 |
||
|
9327914008
|
9327914008
93279-14008
New Genuine Part
|
93279-14008 |
— | ||
|
9331516025
|
9331516025
93315-16025 New Genuine Part |
93315-16025 |
US $2.18 |
||
