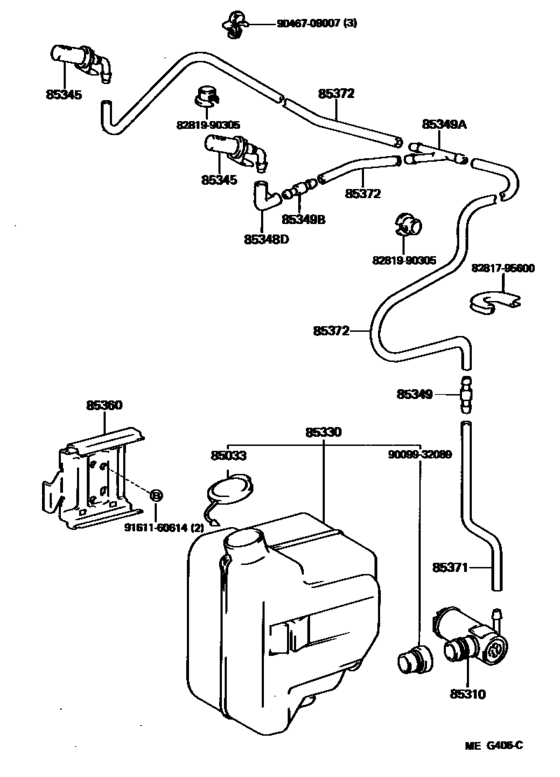

Windshield Washer ([08.1985 - ] (8508- )) Diagram Toyota HIACE
- Year
- 1985 - 1995
- Sales region
- Japan
- Frame
- LH80
- grade
- N
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE QUICK DELIVERY
- From
- 08.1985
- To
- 05.1995
- Gear Shift Type
- 4HC
- No.of Doors
- 4D
- Vehicle Model
- Hiace Quick Delivery
- Loading Capacity
- 125
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85033-36120 Cap Assy, Windshield Washer[08.1985 - 05.1995] LH8# |
85033-36120 |
US $0.55 |
||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[08.1985 - 05.1995] LH8# |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85330-25040
Jar Assy, Windshield Washer
[08.1985 - 05.1995] LH8# |
85330-25040 |
— | ||
|
85345
|
85345
85035-95A05
Nozzle, Windshield Washer
[08.1985 - 05.1995] LH8# |
85035-95A05 |
— | ||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[08.1985 - 05.1995] LH8# |
85355-14481 |
US $0.98 |
||
|
85349
|
85349
85349-89122 Valve Sub-Assy, Washer[08.1985 - 05.1995] LH8# |
85349-89122 |
from US $1.25 |
||
|
85349A
|
85349A
85348-12250 Joint, Windshield Washer Hose, No.1[08.1985 - 05.1995] LH8# |
85348-12250 |
from US $0.55 |
||
|
85349B
|
85349B
85349-89122 Valve Sub-Assy, Washer[08.1985 - 05.1995] LH8# |
85349-89122 |
from US $1.25 |
||
|
85360
|
85360
85361-95A00 Bracket Assy, Windshield Washer[08.1985 - 05.1995] LH8# |
85361-95A00 |
US $13.25 |
||
| replacement | |||||
|
85360
|
85360
85361-95A02
Bracket Assy, Windshield Washer
[08.1985 - 05.1995] LH8# |
85361-95A02 |
— | ||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1985 - 04.1988] LH8# ＊Ｈ，Ｌ＝２００ |
90446-06013 |
from US $0.70 |
||
|
85372
|
85372
90099-33384
Hose, Windshield Washer (From Joint To Joint), No.1
[04.1988 - 05.1995] LH8# 長さ＝６４０ |
90099-33384 |
— | ||
| replacement | |||||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[04.1988 - 05.1995] LH8# 長さ＝６４０ |
90446-06013 |
from US $0.70 |
||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[04.1987 - 04.1988] LH8# ＊Ｈ，Ｌ＝５００ |
90446-06013 |
from US $0.70 |
||
|
8281795600
|
8281795600
82817-95600 Protector, Wiring Harness, No.1 |
82817-95600 |
US $3.93 |
||
|
8281990305
|
8281990305
82819-90305 Grommet, Wiring Harness |
82819-90305 |
US $5.28 |
||
|
9009932089
|
9009932089
90099-32089 Bush, Headlamp Cleaner Washer Jar |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
9009932089
|
9009932089
90099320891
Grommet
|
90099320891 |
— | ||
|
9009932089
|
9009932089
90068-32002 Bush, Windshield Washer Jar |
90068-32002 |
US $7.46 |
||
|
9046709007
|
9046709007
90467-09007 New Genuine Part |
90467-09007 |
US $1.44 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
