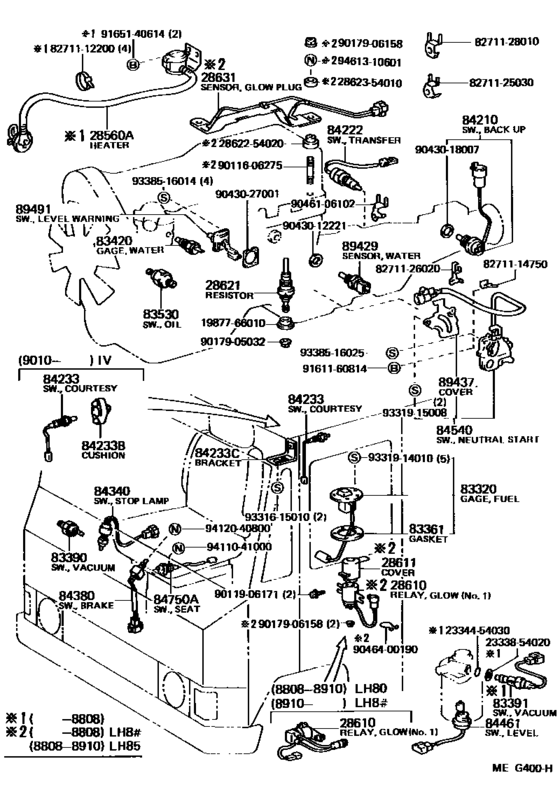

Switch & Relay & Computer ([08.1985 - ] (8508- )) Diagram Toyota HIACE
- Year
- 1985 - 1995
- Sales region
- Japan
- Frame
- LH85
- grade
- D
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE QUICK DELIVERY
- From
- 08.1985
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- Hiace Quick Delivery
- Loading Capacity
- 125
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28610
|
28610
28610-54150
Relay Assy, Glow Plug
[08.1985 - 04.1988] 2L..LH8# NO.2 |
28610-54150 |
— | ||
|
28610
|
28610
28610-54300
Relay Assy, Glow Plug
[10.1989 - 05.1995] 2L..LH8# ＮＯ．２ |
28610-54300 |
— | ||
|
28610
|
28610
28610-64060 Relay Assy, Glow Plug[08.1987 - 04.1988] 2L..LH8# NO.1 |
28610-64060 |
US $193.65 |
||
|
28610
|
28610
28610-64080
Relay Assy, Glow Plug
[10.1989 - 05.1995] 2L..LH8# ＮＯ．１ |
28610-64080 |
— | ||
|
28611
|
28611
28611-55010 Cover, Glow Plug Relay[08.1987 - 08.1988] 2L..LH8# |
28611-55010 |
US $4.02 |
||
|
28621
|
28621
28621-54031
Resistor, Glow Plug
[08.1985 - 08.1988] 2L..LH8# |
28621-54031 |
— | ||
| replacement | |||||
|
28621
|
28621
28621-64011 Resistor, Glow Plug[08.1985 - 08.1988] 2L..LH8# |
28621-64011 |
US $181.71 |
||
|
28621
|
28621
28621-54080
Resistor, Glow Plug
[10.1989 - 05.1995] 2L..LH85;2L..LH80..IV;2L..LH80..D..3D;2L..LH80..5H..N;2L..LH80..5H..D..4D |
28621-54080 |
— | ||
|
28631
|
28631
28631-54040
Sensor, Glow Plug Current
[08.1985 - 08.1988] 2L..LH8# |
28631-54040 |
— | ||
|
83320
|
83320
83320-39565 Gage Assy, Fuel Sender[08.1985 - 05.1995] LH8# |
83320-39565 |
US $56.61 |
||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[08.1985 - 05.1995] LH8# |
83361-20030 |
from US $5.12 |
||
|
83390
|
83390
83390-27120 Switch Assy, Vacuum Warning[11.1988 - 05.1995] LH8# |
83390-27120 |
US $65.96 |
||
|
83390
|
83390
83390-30020
Switch Assy, Vacuum Warning
[08.1985 - 11.1988] LH8# |
83390-30020 |
— | ||
|
83391
|
83391
83391-32020
Switch, Vacuum
[08.1985 - 08.1988] LH8# |
83391-32020 |
— | ||
| replacement | |||||
|
83391
|
83391
83391-35040
Switch, Vacuum
[08.1985 - 08.1988] LH8# |
83391-35040 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[01.1993 - 05.1995] LH8# ＮＩＰＰＯＮＤＥＮＳＯ |
83420-16040 |
from US $30.58 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1985 - 01.1993] LH8# |
83420-20020 |
from US $30.54 |
||
|
83420
|
83420
83420-20030
Gage Assy, Water Temperature Sender
[01.1993 - 05.1995] LH8# ＹＡＺＡＫＩ |
83420-20030 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[01.1993 - 05.1995] LH8# ＹＡＺＡＫＩ |
83420-16040 |
from US $30.58 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[08.1985 - 05.1995] LH8# |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[08.1985 - 05.1995] LH8# |
83530-60030 |
from US $25.74 |
||
|
84210
|
84210
84210-60021 Switch Assy, Back-Up Lamp[08.1985 - 05.1995] LH8#..5H |
84210-60021 |
from US $44.56 |
||
|
84222
|
84222
84222-28010
Switch, Transfer Indicator, No.1
[11.1987 - 05.1995] LH85 |
84222-28010 |
— | ||
|
84233
|
84233
84230-12120
Switch Assy, Courtesy Lamp (For Front Door)
[08.1987 - 10.1990] LH8# |
84230-12120 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-22060 Switch Assy, Courtesy Lamp (For Front Door)[08.1987 - 10.1990] LH8# |
84231-22060 |
US $11.84 |
||
|
84233C
|
84233C
84233-90D01 Bracket, Courtesy Switch (For Front Door)[08.1985 - 10.1990] LH8# |
84233-90D01 |
US $12.67 |
||
|
84340
|
84340
84340-22072 Switch Assy, Stop Lamp[08.1985 - 05.1995] LH8# |
84340-22072 |
from US $26.36 |
||
|
84380
|
84380
84380-35010 Switch Assy, Courtesy Lamp (For Parking Brake)[08.1985 - 05.1995] LH8# |
84380-35010 |
US $15.66 |
||
|
84461
|
84461
84461-14030 Switch, Level Warning[08.1985 - 08.1988] LH8# |
84461-14030 |
US $84.45 |
||
|
84461
|
84461
84461-26060 Switch, Level Warning[09.1993 - 05.1995] LH8# |
84461-26060 |
US $82.99 |
||
|
84461
|
84461
84461-35030 Switch, Level Warning[08.1988 - 09.1993] LH8# |
84461-35030 |
US $38.09 |
||
|
89429
|
89429
89422-20010 Sensor, Water Temperature (For E.f.i.)[10.1989 - 05.1995] LH85;LH80..IV;LH80..D..3D;LH80..5H..N;LH80..5H..D..4D |
89422-20010 |
from US $36.78 |
||
|
89429
|
89429
89422-30020
Sensor, Water Temperature (For E.f.i.)
[08.1985 - 08.1988] LH8# |
89422-30020 |
— | ||
| replacement | |||||
|
89429
|
89429
89422-12010 Sensor, Water Temperature (For E.f.i.)[08.1985 - 08.1988] LH8# |
89422-12010 |
from US $61.10 |
||
|
89491
|
89491
89491-26090
Sensor, Engine Oil Level
[10.1989 - 05.1995] LH85 |
89491-26090 |
— | ||
| replacement | |||||
|
89491
|
89491
89491-26091 Sensor, Engine Oil Level[10.1989 - 05.1995] LH85 |
89491-26091 |
US $295.28 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2333854020
|
2333854020
23338-54020 Gasket(for Warning Switch) |
23338-54020 |
US $2.48 |
||
|
2334454030
|
2334454030
23344-54030
Gasket, Clamping Nut(for Fuel Filter)
|
23344-54030 |
— | ||
|
2862254020
|
2862254020
28622-54020
Insulator, Glow Plug Resistor, No.1
|
28622-54020 |
— | ||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
8271114750
|
8271114750
82711-14750 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14750 |
US $5.10 |
||
|
8271125030
|
8271125030
82711-25030 Wire, Fuse To Fuse(for Combustion Heater) |
82711-25030 |
US $5.10 |
||
|
8271126020
|
8271126020
82711-26020 Wire, Fuse To Fuse(for Combustion Heater) |
82711-26020 |
US $9.90 |
||
|
8271128010
|
8271128010
82711-28010 Wire, Fuse To Fuse(for Combustion Heater) |
82711-28010 |
US $6.84 |
||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.08 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.05 |
||
|
9046106102
|
9046106102
90461-06102 New Genuine Part |
90461-06102 |
US $4.22 |
||
|
9046400190
|
9046400190
90464-00190 CLAMP |
90464-00190 |
US $1.40 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9331615010
|
9331615010
93316-15010
New Genuine Part
|
93316-15010 |
— | ||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.28 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
