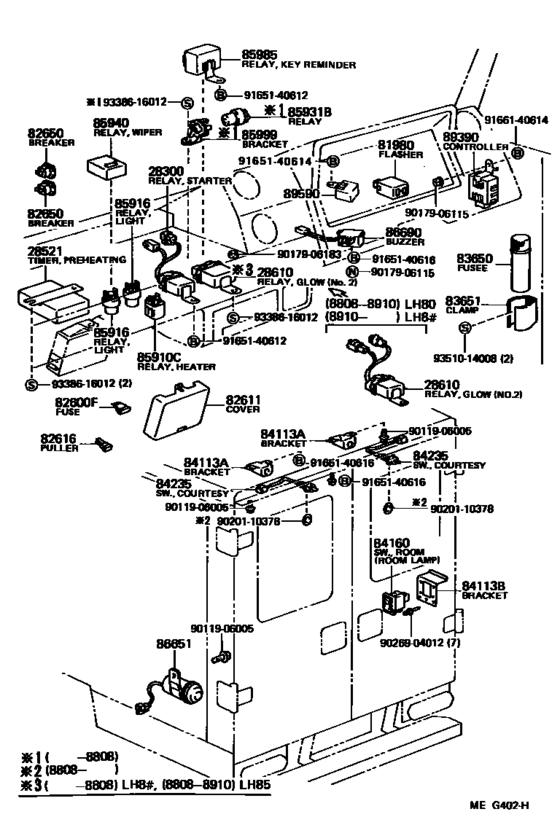

Switch & Relay & Computer ([08.1985 - ] (8508- )) Diagram Toyota HIACE
- Year
- 1985 - 1995
- Sales region
- Japan
- Frame
- LH85
- grade
- D
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE QUICK DELIVERY
- From
- 08.1985
- To
- 05.1995
- Gear Shift Type
- 5H
- No.of Doors
- 3D
- Vehicle Model
- Hiace Quick Delivery
- Loading Capacity
- 125
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-48010 Relay Assy, Starter[08.1985 - 05.1995] 2L..LH8# |
28300-48010 |
US $106.56 |
||
|
28521
|
28521
28521-54181 Timer, Preheating[08.1985 - 08.1988] 2L..LH8# |
28521-54181 |
US $633.36 |
||
|
28521
|
28521
28521-54340 Timer, Preheating[10.1989 - 09.1991] 2L..LH8# |
28521-54340 |
US $631.90 |
||
| replacement | |||||
|
28521
|
28521
28521-54480
Timer, Preheating
[10.1989 - 09.1991] 2L..LH8# |
28521-54480 |
— | ||
|
28521
|
28521
28521-54480
Timer, Preheating
[09.1991 - 05.1995] 2L..LH8# |
28521-54480 |
— | ||
|
28610
|
28610
28610-54150
Relay Assy, Glow Plug
[08.1985 - 04.1988] 2L..LH8# NO.2 |
28610-54150 |
— | ||
|
28610
|
28610
28610-54300
Relay Assy, Glow Plug
[10.1989 - 05.1995] 2L..LH8# ＮＯ．２ |
28610-54300 |
— | ||
|
28610
|
28610
28610-64060 Relay Assy, Glow Plug[08.1987 - 04.1988] 2L..LH8# NO.1 |
28610-64060 |
US $193.65 |
||
|
28610
|
28610
28610-64080
Relay Assy, Glow Plug
[10.1989 - 05.1995] 2L..LH8# ＮＯ．１ |
28610-64080 |
— | ||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[11.1987 - 10.1988] LH8# |
81980-16010 |
US $121.36 |
||
|
81980
|
81980
81980-20140 Flasher Assy, Turn Signal[10.1988 - 05.1995] LH8# |
81980-20140 |
US $106.29 |
||
| replacement | |||||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[10.1988 - 05.1995] LH8# |
81980-16010 |
US $121.36 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1985 - 04.1988] LH8# １５Ａ,15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1985 - 04.1988] LH8# ２０Ａ,20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1985 - 04.1988] LH8# ７．５Ａ,7.5A |
90982-09005 |
from US $1.03 |
||
|
82611
|
82611
82611-90D02 Cover, Fuse Block[08.1987 - 10.1990] LH8# |
82611-90D02 |
US $16.16 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[08.1985 - 10.1990] LH8# |
82616-12010 |
from US $3.04 |
||
|
83650
|
83650
90986-01003
Fusee
[08.1985 - 10.1989] LH8# |
90986-01003 |
— | ||
|
83650
|
83650
90986-01005
Fusee
[10.1989 - 05.1995] LH8# |
90986-01005 |
— | ||
|
83651
|
83651
62199-90P80 Holder, Fusee[10.1989 - 05.1995] LH8# |
62199-90P80 |
US $10.08 |
||
|
83651
|
83651
81713-90500 Holder, Fusee[08.1985 - 10.1989] LH8# |
81713-90500 |
US $4.51 |
||
|
84113A
|
84113A
84233-90D00 Bracket, Switch, No.1[08.1985 - 05.1995] LH8# |
84233-90D00 |
US $11.07 |
||
|
84160
|
84160
84170-90D00 Switch Assy, Room Lamp[04.1988 - 05.1995] LH8#..D |
84170-90D00 |
US $54.57 |
||
|
84235
|
84235
84230-22051
Switch Assy, Courtesy Lamp (For Front Door)
[08.1985 - 05.1988] LH8# |
84230-22051 |
— | ||
| replacement | |||||
|
84235
|
84235
84231-28010 Switch Assy, Courtesy Lamp[08.1985 - 05.1988] LH8# |
84231-28010 |
from US $16.26 |
||
|
84235
|
84235
84231-28010 Switch Assy, Courtesy Lamp[05.1988 - 05.1995] LH8# |
84231-28010 |
from US $16.26 |
||
|
85910C
|
85910C
85913-30020
Relay, Ignition, No.1
[08.1985 - 03.1988] LH8# |
85913-30020 |
— | ||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[03.1988 - 05.1995] LH8# |
90987-04002 |
from US $24.67 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[08.1985 - 04.1988] LH8# TAIL LAMP;HEADLAMP |
90987-01003 |
from US $35.26 |
||
|
85931B
|
85931B
90987-02004 Relay Assy, Starter[08.1985 - 08.1988] LH8# |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
85931B
|
85931B
909870200483 [08.1985 - 08.1988] LH8# |
909870200483 |
US $53.75 |
||
|
85940
|
85940
85940-22051 Relay Assy, Windshield Wiper[08.1985 - 05.1995] LH8# |
85940-22051 |
US $152.88 |
||
| replacement | |||||
|
85940
|
85940
85940-95J00 Relay Assy, Windshield Wiper[08.1985 - 05.1995] LH8# |
85940-95J00 |
US $151.42 |
||
|
85985
|
85985
80590-26020 Relay, Key Reminder[08.1991 - 05.1995] LH8# |
80590-26020 |
US $115.02 |
||
|
85999
|
85999
85999-12050
Bracket, Main Relay
[08.1985 - 08.1988] LH8# |
85999-12050 |
— | ||
|
86651
|
86651
86650-95409 Buzzer Assy, Reverse Warning[08.1987 - 05.1995] LH8# |
86650-95409 |
US $88.82 |
||
|
86690
|
86690
86650-22090
Buzzer Assy, Speed Indicator
[08.1985 - 05.1995] LH8# |
86650-22090 |
— | ||
|
89390
|
89390
89390-25010 Relay, Brake Warning[10.1990 - 05.1995] LH8# |
89390-25010 |
US $219.86 |
||
|
89590
|
89590
89590-28020 Computer Assy, Condition Indicator[10.1989 - 05.1995] LH8# |
89590-28020 |
US $77.17 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017906183
|
9017906183
90179-06183 New Genuine Part |
90179-06183 |
US $3.35 |
||
| replacement | |||||
|
9017906183
|
9017906183
90179-06329 NUT |
90179-06329 |
US $1.28 |
||
|
9020110378
|
9020110378
90201-10378 New Genuine Part |
90201-10378 |
US $2.91 |
||
|
9026904012
|
9026904012
90269-04012 New Genuine Part |
90269-04012 |
US $2.77 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.76 |
||
|
9338616012
|
9338616012
93386-16012 New Genuine Part |
93386-16012 |
US $1.02 |
||
|
9351014008
|
9351014008
93510-14008 New Genuine Part |
93510-14008 |
US $2.18 |
||
