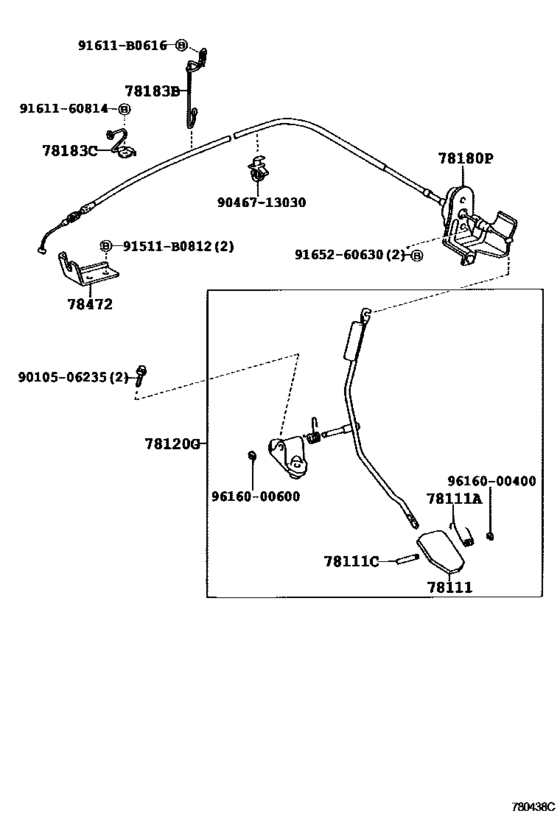

Accelerator Link ([08.1995 - 08.2001] (9508-0108)LXH12,22..RHD) Diagram Toyota HIACE
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- LXH12
- grade
- DX
- body
- 4DV
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 04.1998
- To
- 08.2001
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78111
|
78111
78111-20050 Pedal, Accelerator[08.1995 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
78111-20050 |
US $13.98 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[08.1995 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1995 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-26050 Rod Assy, Accelerator Pedal[03.1997 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
78120-26050 |
US $41.06 |
||
|
78180P
|
78180P
78180-26030 Cable Assy, Accelerator ControlACCELERATOR CONTROL [08.1995 - 07.1999] LXH12,22..RHD |
78180-26030 |
US $80.08 |
||
|
78183B
|
78183B
78183-26100 Clamp, Accelerator Control Cable[08.1995 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
78183-26100 |
US $4.80 |
||
|
78183C
|
78183C
78183-26080 Clamp, Accelerator Control Cable[08.1995 - 07.1999] LXH1#,2# |
78183-26080 |
US $4.22 |
||
|
78472
|
78472
78472-26020 Support, Throttle Control Cable[08.1995 - 07.1999] LXH1#,2# |
78472-26020 |
US $4.89 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.96 |
||
|
9010506235
|
9010506235
90105-06235 New Genuine Part |
90105-06235 |
US $1.46 |
||
|
9046713030
|
9046713030
90467-13030 CLIP |
90467-13030 |
from US $1.42 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9165260630
|
9165260630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
