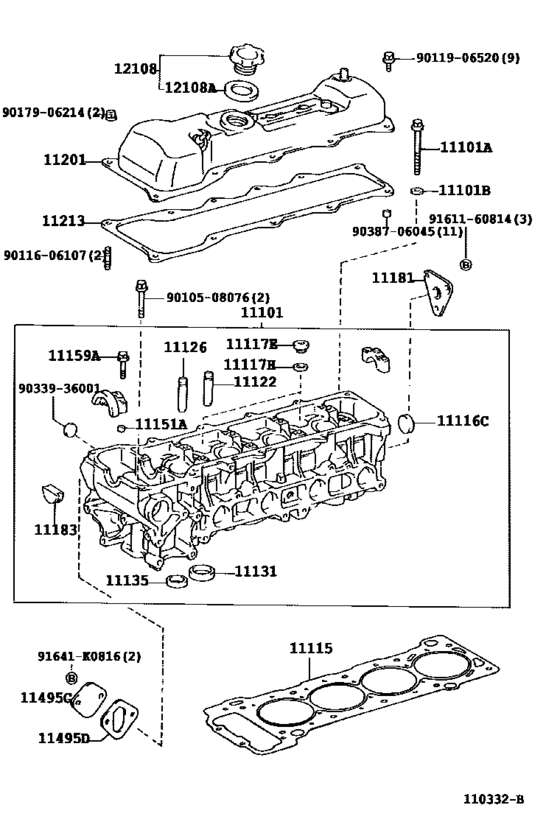

Cylinder Head ([08.1995 - ] (9508- )2RZE) Diagram Toyota HIACE
- Year
- 1995 - 1998
- Sales region
- General
- Frame
- RCH12
- grade
- DX
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.1995
- To
- 04.1998
- Seating Capacity
- 09S
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-75021 Head Sub-Assy, Cylinder[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
11101-75021 |
US $1,397.76 |
||
| replacement | |||||
|
11101
|
11101
11101-75022 Head Sub-Assy, Cylinder[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
11101-75022 |
US $1,514.24 |
||
|
11101A
|
11101A
90910-02091
Bolt(For Cylinder Head Set)
[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
90910-02091 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02187 Bolt(For Cylinder Head Set)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
90910-02187 |
from US $4.30 |
||
|
11101B
|
11101B
90201-12222 Washer, Plate(For Cylinder Head Set)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
90201-12222 |
from US $1.07 |
||
|
11115
|
11115
11115-75020 Gasket, Cylinder Head[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 T=1.25 |
11115-75020 |
from US $33.60 |
||
|
11116C
|
11116C
96411-42800 Plug, Tight, No.1[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
96411-42800 |
from US $2.91 |
||
|
11117E
|
11117E
90341-20012 Plug, W/head Straight Screw, No.1[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
90341-20012 |
US $3.58 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
90430-20004 |
from US $0.96 |
||
|
11122
|
11122
11122-75010 Bush, Intake Valve Guide[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 STD |
11122-75010 |
from US $10.26 |
||
|
11122
|
11122
11123-75010 Bush, Intake Valve Guide[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 O/S 0.05 |
11123-75010 |
US $11.07 |
||
|
11126
|
11126
11122-75010 Bush, Intake Valve Guide[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 STD |
11122-75010 |
from US $10.26 |
||
|
11126
|
11126
11123-75010 Bush, Intake Valve Guide[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 O/S 0.05 |
11123-75010 |
US $11.07 |
||
|
11131
|
11131
11131-75020 Seat, Intake Valve[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 STD |
11131-75020 |
US $19.66 |
||
| replacement | |||||
|
11131
|
11131
11131-75050 Seat, Intake Valve[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 STD |
11131-75050 |
from US $12.17 |
||
|
11131
|
11131
11132-75020 Seat, Intake Valve[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 O/S 0.03 |
11132-75020 |
US $19.66 |
||
| replacement | |||||
|
11131
|
11131
11132-75050 Seat, Intake Valve[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 O/S 0.03 |
11132-75050 |
US $19.80 |
||
|
11135
|
11135
11135-75020 Seat, Exhaust Valve[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 STD |
11135-75020 |
US $16.85 |
||
|
11135
|
11135
11136-75020 Seat, Exhaust Valve[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 O/S 0.03 |
11136-75020 |
US $18.93 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 L=8,OD=11 |
90253-11021 |
from US $1.44 |
||
|
11159A
|
11159A
90119-08772 Bolt(For Head To Camshaft Bearing Cap)[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
90119-08772 |
from US $1.40 |
||
|
11181
|
11181
11181-75010 Plate, Cylinder Head, Rear[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
11181-75010 |
US $34.36 |
||
|
11183
|
11183
11183-62010 Plug, Semicircular[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
11183-62010 |
from US $5.66 |
||
|
11201
|
11201
11201-75010 Cover Sub-Assy, Cylinder Head[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
11201-75010 |
from US $95 |
||
|
11213
|
11213
11213-75020 Gasket, Cylinder Head Cover[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
11213-75020 |
from US $32.99 |
||
|
11495C
|
11495C
11495-75020 Plug, Plate(For Cylinder Head)[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
11495-75020 |
US $16.31 |
||
|
11495D
|
11495D
11496-75021 Gasket(For Cylinder Head)[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
11496-75021 |
US $5.64 |
||
|
12108
|
12108
12180-73011 Cap Sub-Assy, Oil Filler[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
12180-73011 |
from US $11.65 |
||
|
12108A
|
12108A
12195-73010 Gasket(For Oil Filler Cap)[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
12195-73010 |
US $5.56 |
||
|
91641K0816
|
91641K0816
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.33 |
||
|
9010508076
|
9010508076
90105-08076 BOLT |
90105-08076 |
US $3.05 |
||
|
9011606107
|
9011606107
90116-06107 New Genuine Part |
90116-06107 |
US $2.04 |
||
|
9011906520
|
9011906520
90119-06520 BOLT WWASHER |
90119-06520 |
from US $0.86 |
||
|
9017906214
|
9017906214
90179-06214 NUT |
90179-06214 |
from US $0.92 |
||
|
9033936001
|
9033936001
90339-36001 PLUG |
90339-36001 |
from US $2.65 |
||
|
9038706045
|
9038706045
90387-06045 COLLAR |
90387-06045 |
from US $2.52 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
