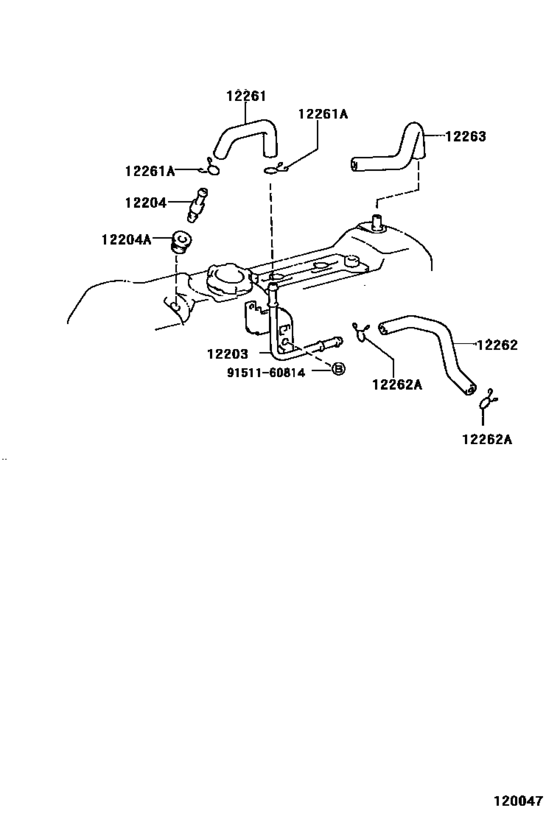

Ventilation Hose ([08.1995 - ] (9508- )2RZE) Diagram Toyota HIACE
- Year
- 1995 - 1998
- Sales region
- General
- Frame
- RCH12
- grade
- DX
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.1995
- To
- 04.1998
- Seating Capacity
- 09S
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12203
|
12203
12229-75020 Pipe Sub-Assy, Ventilation[08.1995 - 08.1997] 2RZE..RCH1#,2# |
12229-75020 |
US $23 |
||
| replacement | |||||
|
12203
|
12203
12229-75021 Pipe Sub-Assy, Ventilation[08.1995 - 08.1997] 2RZE..RCH1#,2# |
12229-75021 |
US $23 |
||
|
12203
|
12203
12229-75021 Pipe Sub-Assy, Ventilation[08.1997 - 07.1999] 2RZE..RCH12,18,22,28 |
12229-75021 |
US $23 |
||
|
12204
|
12204
12204-15022 Valve Sub-Assy, Ventilation[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
12204-15022 |
from US $11.33 |
||
|
12204A
|
12204A
90480-18001 Grommet(For Ventilation System)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S |
90480-18001 |
from US $3.84 |
||
|
12261
|
12261
12261-75010
Hose, Ventilation
[08.1995 - 09.1995] 2RZE..RCH12 |
12261-75010 |
— | ||
| replacement | |||||
|
12261
|
12261
12262-75060 Hose, Ventilation[08.1995 - 09.1995] 2RZE..RCH12 |
12262-75060 |
from US $9.81 |
||
|
12261
|
12261
12262-75060 Hose, Ventilation[09.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
12262-75060 |
from US $9.81 |
||
|
12261A
|
12261A
90467-14001 Clip Or Clamp(For Ventilation Hose)[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
90467-14001 |
from US $0.72 |
||
| replacement | |||||
|
12261A
|
12261A
90466-T0026
Clip Or Clamp(For Ventilation Hose)
[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
90466-T0026 |
— | ||
|
12262
|
12262
12262-75010 Hose, Ventilation, No.2[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
12262-75010 |
US $13.44 |
||
|
12262A
|
12262A
90467-14001 Clip Or Clamp(For Ventilation Hose)[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S NO.1 & NO.2 |
90467-14001 |
from US $0.72 |
||
| replacement | |||||
|
12262A
|
12262A
90466-T0026
Clip Or Clamp(For Ventilation Hose)
[08.1995 - 10.1999] 2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S NO.1 & NO.2 |
90466-T0026 |
— | ||
|
12263
|
12263
12262-75090
Hose, Ventilation, No.3
[08.1995 - 07.1999] 2RZE..RCH12,18,22,28 |
12262-75090 |
— | ||
|
9151160814
|
9151160814
91511-60814
New Genuine Part
|
91511-60814 |
— | ||
| replacement | |||||
|
9151160814
|
9151160814
91511-B0814 BOLT |
91511-B0814 |
US $1.79 |
||
