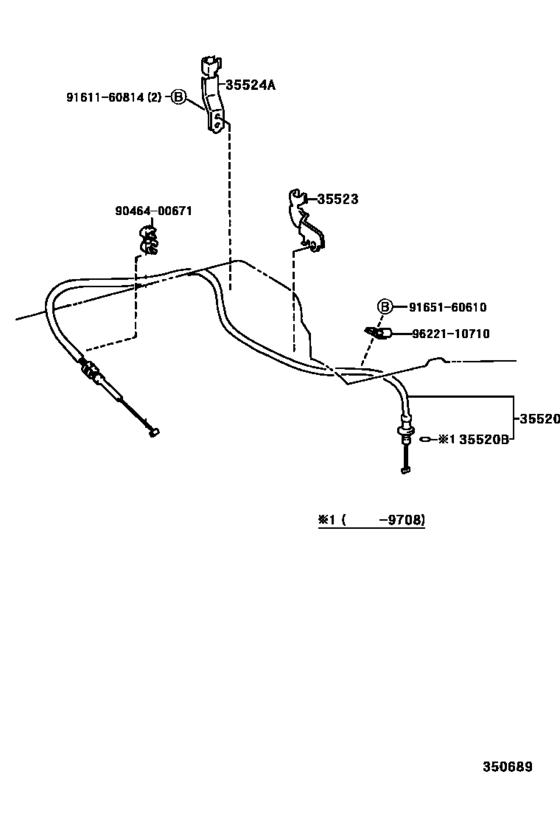

Throttle Link & Valve Lever (Atm) ([08.1995 - 04.1998] A45DL (9508-9804)RCH12..ATM) Diagram Toyota HIACE
- Year
- 1995 - 1997
- Sales region
- Europe
- Frame
- RCH12
- grade
- STD
- body
- 5DV
- ENGINE
- 2RZE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.1995
- To
- 08.1997
- Seating Capacity
- 06S
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Side Window
- SG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-26080 Cable Assy, Throttle[08.1995 - 04.1998] RCH12..ATM |
35520-26080 |
US $55.62 |
||
|
35520B
|
35520B
90301-09012 Ring, O (For Automatic Transmission Case Plug)[08.1995 - 08.1997] LXH12,22,RCH12..ATM |
90301-09012 |
US $3.94 |
||
|
35523
|
35523
35523-26060 Clamp, Throttle Cable[08.1995 - 04.1998] RCH12..ATM |
35523-26060 |
US $11.94 |
||
|
35524A
|
35524A
35524-26050 Clamp, Throttle Cable, No.5[08.1995 - 04.1998] RCH12..ATM |
35524-26050 |
US $14.12 |
||
|
9046400671
|
9046400671
90464-00671 Clamp, Throttle Cable |
90464-00671 |
US $3.06 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
|
9622110710
|
9622110710
96221-10710 Clamp, Throttle Cable, No.2 |
96221-10710 |
US $2.18 |
||
