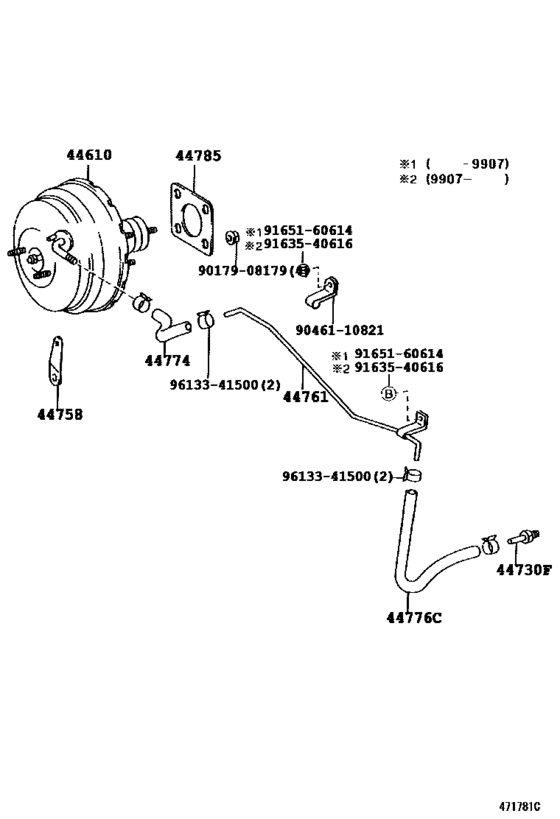

Brake Booster & Vacuum Tube ([04.1998 - ] (9508-9804)RCH12..RHD ; (9804- )RCH12,22 ; (9 910- )RCH13..RHD) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- Europe
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-26591
Booster Assy, Brake
[07.1999 - 11.2003] RCH12,22 |
44610-26591 |
— | ||
| replacement | |||||
|
44610
|
44610
44610-26592 Booster Assy, BrakeBRAKE [07.1999 - 11.2003] RCH12,22 |
44610-26592 |
US $941.74 |
||
|
44730F
|
44730F
90404-51319 Union, No.1[07.1999 - 11.2003] RCH12,22 |
90404-51319 |
from US $3.94 |
||
|
44758
|
44758
44758-26080 Bracket, Vacuum Check Valve[07.1999 - 11.2003] RCH12,22 |
44758-26080 |
US $1.60 |
||
|
44761
|
44761
44761-26300 Tube, Intake Manifold Or Vacuum Pump To Connector[07.1999 - 11.2003] RCH12,22 |
44761-26300 |
US $24.17 |
||
|
44774
|
44774
44774-26280 Hose, Union To Connector Tube[07.1999 - 11.2003] RCH12,22 |
44774-26280 |
US $15.29 |
||
|
44776C
|
44776C
90445-17146 Hose, Vacuum Reservoir To Connector[07.1999 - 11.2003] RCH12,22 |
90445-17146 |
US $16.02 |
||
|
44785
|
44785
44785-20020 Gasket, Brake Booster[07.1999 - 11.2003] RCH12,22 |
44785-20020 |
US $3.99 |
||
|
9017908179
|
9017908179
90179-08179 New Genuine Part |
90179-08179 |
US $3.58 |
||
|
9046110821
|
9046110821
90461-10821 New Genuine Part |
90461-10821 |
US $4.66 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
