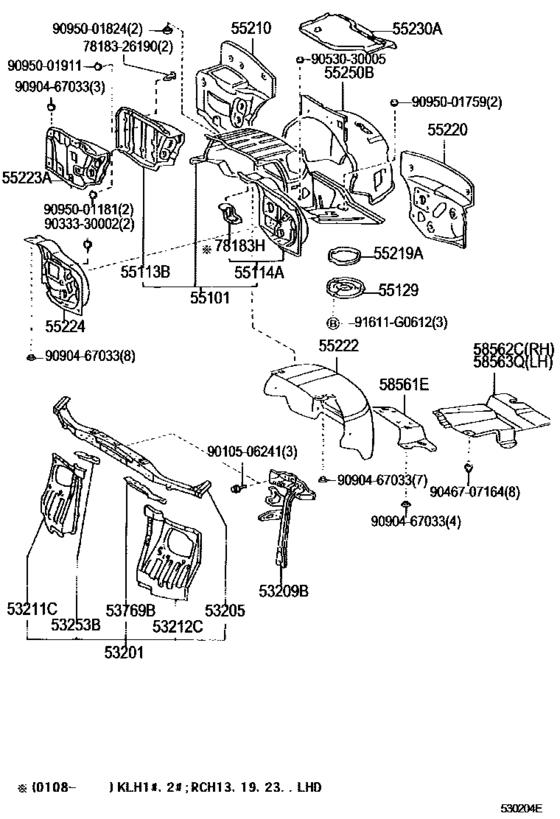

Front Fender Apron & Dash Panel ([08.1995 - 08.2006] (9508-0608)) Diagram Toyota HIACE
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.1995
- To
- 07.1999
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-26010 Support Sub-Assy, Radiator[08.1995 - 12.1998] LXH1#,2#,RCH1#,2# |
53201-26010 |
US $417.87 |
||
| replacement | |||||
|
53201
|
53201
53201-26040 Support Sub-Assy, Radiator[08.1995 - 12.1998] LXH1#,2#,RCH1#,2# |
53201-26040 |
US $417.87 |
||
|
53201
|
53201
53201-26011 Support Sub-Assy, Radiator[12.1998 - 10.1999] LXH1#,2#,RCH1#,23,29..03S,05S,06S,09S |
53201-26011 |
US $414.96 |
||
| replacement | |||||
|
53201
|
53201
53201-26040 Support Sub-Assy, Radiator[12.1998 - 10.1999] LXH1#,2#,RCH1#,23,29..03S,05S,06S,09S |
53201-26040 |
US $417.87 |
||
|
53205
|
53205
53216-26010 Support Sub-Assy, Radiator, Upper[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
53216-26010 |
from US $147.21 |
||
|
53209B
|
53209B
53209-26010 Brace Sub-Assy, Hood Lock Support[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,06S,09S RADIATOR GRILLE = TYPE A |
53209-26010 |
US $60.72 |
||
|
53211C
|
53211C
53211-26040 Support, Radiator, Rh[08.1995 - 01.1999] LXH1#,2#,RCH1#,2# |
53211-26040 |
US $128.13 |
||
| replacement | |||||
|
53211C
|
53211C
53211-26060 Support, Radiator, Rh[08.1995 - 01.1999] LXH1#,2#,RCH1#,2# |
53211-26060 |
US $128.13 |
||
|
53211C
|
53211C
53211-26041 Support, Radiator, Rh[01.1999 - 10.1999] LXH1#,2#,RCH1#,23,29..03S,05S,06S,09S |
53211-26041 |
US $131.04 |
||
| replacement | |||||
|
53211C
|
53211C
53211-26060 Support, Radiator, Rh[01.1999 - 10.1999] LXH1#,2#,RCH1#,23,29..03S,05S,06S,09S |
53211-26060 |
US $128.13 |
||
|
53212C
|
53212C
53212-26040 Support, Radiator, Lh[08.1995 - 01.1999] LXH1#,2#,RCH1#,2# |
53212-26040 |
US $128.13 |
||
| replacement | |||||
|
53212C
|
53212C
53212-26060 Support, Radiator, Lh[08.1995 - 01.1999] LXH1#,2#,RCH1#,2# |
53212-26060 |
US $128.13 |
||
|
53212C
|
53212C
53212-26041 Support, Radiator, Lh[01.1999 - 10.1999] LXH1#,2#,RCH1#,23,29..03S,05S,06S,09S |
53212-26041 |
US $131.04 |
||
| replacement | |||||
|
53212C
|
53212C
53212-26060 Support, Radiator, Lh[01.1999 - 10.1999] LXH1#,2#,RCH1#,23,29..03S,05S,06S,09S |
53212-26060 |
US $128.13 |
||
|
53253B
|
53253B
53253-26010 Bracket, Radiator Mounting, Upper[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
53253-26010 |
US $16.31 |
||
|
53769B
|
53769B
53769-26010 Bracket, Power Steering Reservoir Tank Mounting[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
53769-26010 |
US $26.64 |
||
|
55101
|
55101
55110-26150 Panel Sub-Assy, DashDASH [08.1995 - 08.1997] RCH12..ARL |
55110-26150 |
US $768.77 |
||
|
55101
|
55101
55110-26660 Panel Sub-Assy, DashDASH [08.1997 - 07.1999] RCH12..ARL |
55110-26660 |
US $770.22 |
||
| replacements | |||||
|
55101
|
55101
55110-26840 Panel Sub-Assy, DashDASH [08.1997 - 07.1999] RCH12..ARL |
55110-26840 |
US $770.22 |
||
|
55101
|
55101
90333-20001 PLUG[08.1997 - 07.1999] RCH12..ARL |
90333-20001 |
from US $1.21 |
||
|
55101
|
55101
55110-26840 Panel Sub-Assy, DashDASH [04.1998 - 07.1999] RCH12 W(*80) |
55110-26840 |
US $770.22 |
||
|
55113B
|
55113B
55113-26050 Panel Sub-Assy, Dash Side, RhDASH SIDE, RH [08.1995 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
55113-26050 |
US $93.18 |
||
|
55114A
|
55114A
55018-26060 Panel Sub-Assy, Dash Side, Lh[08.1995 - 07.1999] RCH12..ARL |
55018-26060 |
US $142.69 |
||
| replacement | |||||
|
55114A
|
55114A
55018-26040 Panel Sub-Assy, Dash Side, LhDASH SIDE, LH [08.1995 - 07.1999] RCH12..ARL |
55018-26040 |
US $139.78 |
||
|
55129
|
55129
55129-26010 Cover, Dash Panel Hole[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
55129-26010 |
US $24.90 |
||
|
55210
|
55210
55210-26020 Insulator Assy, Dash Panel[08.1995 - 08.1997] LXH12,22,RCH12..RHD |
55210-26020 |
US $115.02 |
||
|
55210
|
55210
55210-26070 Insulator Assy, Dash PanelDASH PANEL [08.1997 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
55210-26070 |
US $116.48 |
||
|
55219A
|
55219A
55219-26010 Packing, Dash Panel Hole Cover[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
55219-26010 |
US $11.21 |
||
|
55220
|
55220
55220-26020 Insulator Assy, Dash Panel, No.2[08.1995 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
55220-26020 |
US $116.48 |
||
|
55222
|
55222
55222-26010
Insulator, Dash Panel, Outer Center
[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
55222-26010 |
— | ||
|
55250B
|
55250B
55250-26020 Insulator Assy, Dush Panel, No.3[08.1995 - 08.1997] LXH12,22,RCH12..RHD |
55250-26020 |
US $190.74 |
||
|
55250B
|
55250B
55250-26090 Insulator Assy, Dush Panel, No.3DUSH PANEL, NO.3 [08.1997 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
55250-26090 |
US $195.10 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
7818326190
|
7818326190
78183-26190 Clamp, Accelerator Control Cable |
78183-26190 |
US $2.62 |
||
|
9010506241
|
9010506241
90105-06241 BOLT WASHER BASED |
90105-06241 |
US $1.75 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.07 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.21 |
||
|
9053030005
|
9053030005
90530-30005 New Genuine Part |
90530-30005 |
US $3.49 |
||
|
9090467033
|
9090467033
90904-67033 Clip(For Deck Board No.1) |
90904-67033 |
US $1.43 |
||
|
9095001181
|
9095001181
90950-01181 Plug, Hole(For Front Fender Apron) |
90950-01181 |
US $3.94 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $2.09 |
||
|
9095001824
|
9095001824
90950-01824 PLUG HOLE |
90950-01824 |
from US $1.97 |
||
|
9095001911
|
9095001911
90950-01911 New Genuine Part |
90950-01911 |
US $0.90 |
||
