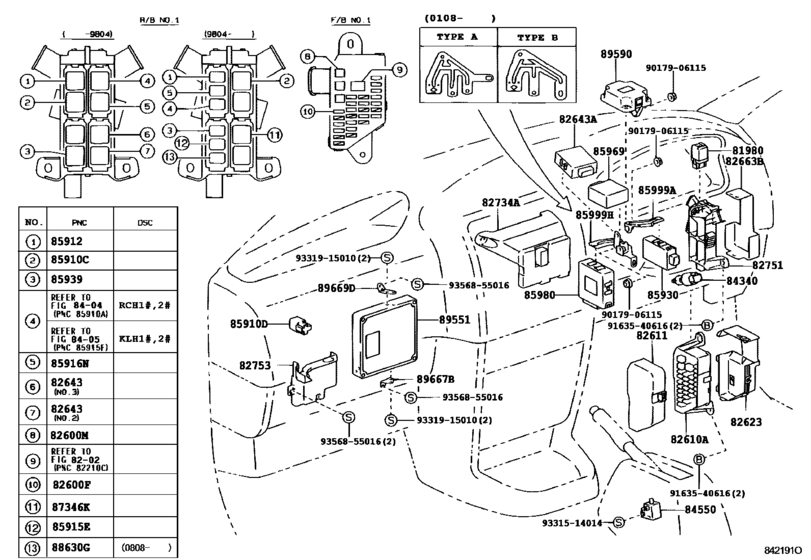

Switch & Relay & Computer ([08.1995 - ] COWL (9508- )RHD) Diagram Toyota HIACE
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.1995
- To
- 07.1999
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[08.1995 - 07.1999] LXH1#,2#,RCH1#,2# |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[08.1995 - 07.1999] LXH1#,2#,RCH1#,2# |
81980-32010 |
from US $53.92 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S 5A,MINI FUSE |
90982-09007 |
from US $0.55 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.1995 - 05.1998] LXH1#,2#,RCH1#,2# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.1995 - 05.1998] LXH1#,2#,RCH1#,2# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.1997 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[08.1995 - 08.1997] RCH12..ARL 30A |
90982-10001 |
from US $3.12 |
||
|
82600M
|
82600M
90982-10002 Fuse, Fuse Block[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S 40A |
90982-10002 |
US $5.02 |
||
|
82610A
|
82610A
82610-26060 Block Assy, Fuse[08.1995 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
82610-26060 |
US $85.90 |
||
|
82611
|
82611
82611-26220 Cover, Fuse BlockFUSE BLOCK [08.1995 - 08.1996] LXH12,RCH12 |
82611-26220 |
US $20.68 |
||
|
82611
|
82611
82611-26221 Cover, Fuse BlockFUSE BLOCK [08.1996 - 05.1997] LXH1#,2#,RCH1#,2# |
82611-26221 |
US $20.82 |
||
| replacement | |||||
|
82611
|
82611
82611-26222 Cover, Fuse BlockFUSE BLOCK [08.1996 - 05.1997] LXH1#,2#,RCH1#,2# |
82611-26222 |
US $20.97 |
||
|
82611
|
82611
82611-26222 Cover, Fuse BlockFUSE BLOCK [05.1997 - 04.1998] LXH1#,2#,RCH1#,2# |
82611-26222 |
US $20.97 |
||
|
82611
|
82611
82611-26310 Cover, Fuse BlockFUSE BLOCK [04.1998 - 07.1999] LXH1#,2#,RCH1#,2# |
82611-26310 |
US $20.68 |
||
|
82623
|
82623
82623-26010 Cover, Fusible Link, Lower[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
82623-26010 |
US $10.48 |
||
|
82663B
|
82663B
82663-26040 Cover, Relay Block, Lower, No.3[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
82663-26040 |
US $14.85 |
||
|
82734A
|
82734A
82734-26030 Block, Center Junction[08.1997 - 10.1999] LXH12,22,RCH12,13..RHD..03S |
82734-26030 |
US $57.08 |
||
|
82751
|
82751
82751-26010 Block, Driver Side Relay[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
82751-26010 |
US $35.67 |
||
|
84340
|
84340
84340-32090
Switch Assy, Stop Lamp
[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
84340-32090 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-42010 Switch Assy, Stop Lamp[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
84340-42010 |
from US $20.30 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
84550-16060 |
from US $19.32 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[08.1995 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
90987-04002 |
from US $24.32 |
||
|
85912
|
85912
90987-02009 Relay Assy[08.1995 - 04.1998] LXH1#,2#,RCH1#,2# |
90987-02009 |
from US $26.15 |
||
|
85912
|
85912
90987-02012 Relay, Ignition, No.1[04.1998 - 10.1999] LXH1#,2#,RCH1#,23,29..03S,05S,06S,09S |
90987-02012 |
from US $26.54 |
||
|
85916N
|
85916N
90987-02009 Relay Assy[08.1995 - 04.1998] LXH1#,2#,RCH1#,2# |
90987-02009 |
from US $26.15 |
||
|
85916N
|
85916N
90987-02012 Relay, Ignition, No.1[04.1998 - 10.1999] LXH1#,2#,RCH1#,23,29..03S,05S,06S,09S |
90987-02012 |
from US $26.54 |
||
|
85980
|
85980
85980-26030 Relay Assy, Door Control[08.1995 - 04.1998] LXH1#,2#,RCH1#,2# |
85980-26030 |
US $257.71 |
||
|
85980
|
85980
85980-26070 Relay Assy, Door Control[04.1998 - 10.1999] LXH1#,2#,RCH1#,23,29..03S,05S,06S,09S |
85980-26070 |
US $282.46 |
||
|
85999H
|
85999H
85999-26190 Bracket, Relay[08.1995 - 04.1996] LXH12,RCH12 |
85999-26190 |
US $7.13 |
||
| replacement | |||||
|
85999H
|
85999H
85999-26191 Bracket, Relay[08.1995 - 04.1996] LXH12,RCH12 |
85999-26191 |
US $7.57 |
||
|
85999H
|
85999H
85999-26191 Bracket, Relay[04.1996 - 10.1999] LXH1#,2#,RCH1#,2#..03S,05S,06S,09S |
85999-26191 |
US $7.57 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.25 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
