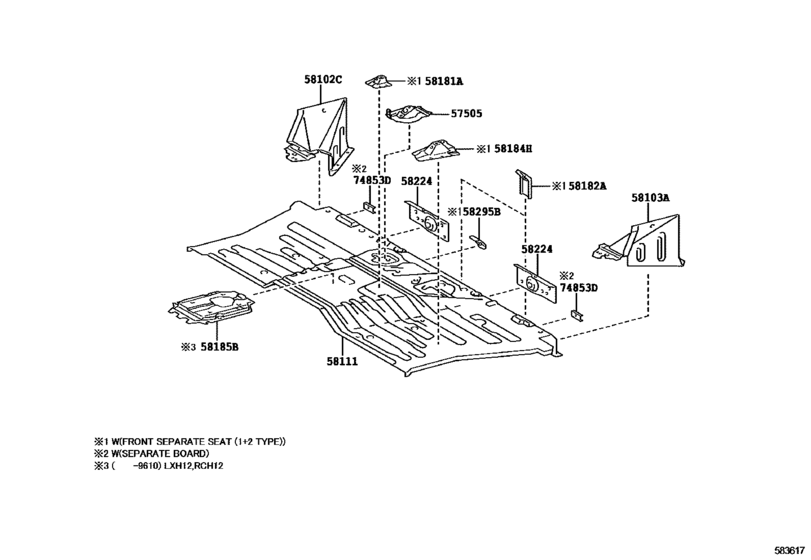

Front Floor Panel & Front Floor Member ([08.1995 - ] (9508- )RHD) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57505
|
57505
57515-26030
Bracket Sub-Assy, Parking Brake, No.1
[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)); RCH12,22 W(FRONT SEPARATE SEAT (1+1 TYPE)) |
57515-26030 |
— | ||
|
58102C
|
58102C
58102-26130
Reinforcement Sub-Assy, Front Floor Side, Rh
[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)); RCH12,22 W(FRONT SEPARATE SEAT (1+1 TYPE)) |
58102-26130 |
— | ||
|
58103A
|
58103A
58103-26060
Reinforcement Sub-Assy, Front Floor Side, Lh
[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)); RCH12,22 W(FRONT SEPARATE SEAT (1+1 TYPE)) |
58103-26060 |
— | ||
|
58111
|
58111
58111-2F561
Pan, Front Floor
[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+1 TYPE)) |
58111-2F561 |
— | ||
| replacements | |||||
|
58111
|
58111
58111-2N021
Pan, Front Floor
[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+1 TYPE)) |
58111-2N021 |
— | ||
|
58111
|
58111
90333-30002 Cover, Front Floor Hole[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+1 TYPE)) |
90333-30002 |
from US $0.83 |
||
|
58111
|
58111
58111-2F761
Pan, Front Floor
[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)) |
58111-2F761 |
— | ||
| replacements | |||||
|
58111
|
58111
58111-2N011
Pan, Front Floor
[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)) |
58111-2N011 |
— | ||
|
58111
|
58111
90333-30002 Cover, Front Floor Hole[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)) |
90333-30002 |
from US $0.83 |
||
|
58181A
|
58181A
58181-26030
Retainer, Seat Rail, Front
[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)) |
58181-26030 |
— | ||
|
58182A
|
58182A
58182-26020 Retainer, Seat Rail, No.2SEAT RAIL, NO.2 [07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)) |
58182-26020 |
US $10.05 |
||
|
58184H
|
58184H
58181-26050
Retainer, Seat Rail, Rear Lh
[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)) |
58181-26050 |
— | ||
|
58224
|
58224
58223-26040 Bracket, Header PanelHEADER PANEL [07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)),RH; RCH12,22 W(FRONT SEPARATE SEAT (1+1 TYPE)),RH |
58223-26040 |
US $39.60 |
||
|
58224
|
58224
58224-26070 Bracket, Header PanelHEADER PANEL [07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)),LH; RCH12,22 W(FRONT SEPARATE SEAT (1+1 TYPE)),LH |
58224-26070 |
US $39.60 |
||
|
58295B
|
58295B
58296-26020
Reinforcement, Seat Belt Anchor Floor
[07.1999 - 11.2003] RCH12,22 W(FRONT SEPARATE SEAT (1+2 TYPE)) |
58296-26020 |
— | ||
