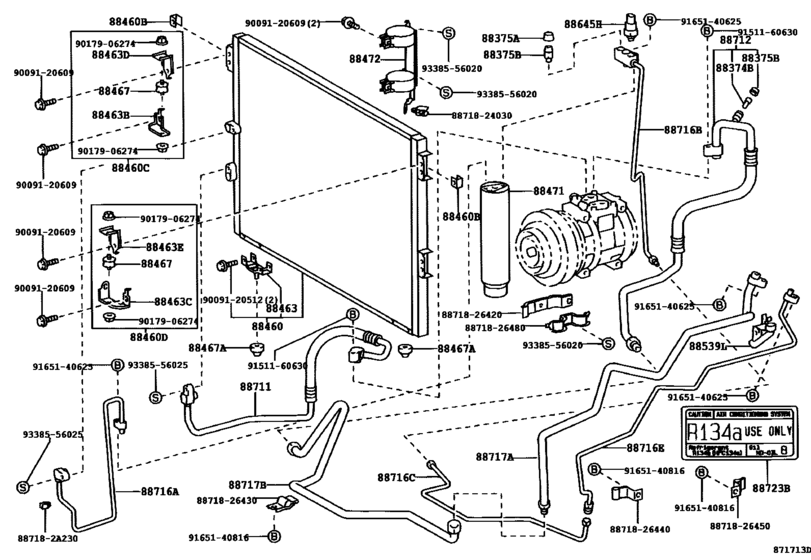

Heating & Air Conditioning - Cooler Piping ([08.1995 - 08.2006] (9508-0608)RCH12,13,22..RHD) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[07.1999 - 11.2003] RCH12,22 |
88374-30010 |
from US $3.12 |
||
|
88375A
|
88375A
88375-30280 Cap, Service Valve (For Cooler Pipe)[07.1999 - 11.2003] RCH12,22 |
88375-30280 |
from US $0.98 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[07.1999 - 11.2003] RCH12,22 |
88375-30290 |
from US $0.88 |
||
|
88460
|
88460
88460-26330 Condenser Assy, CoolerCOOLER [07.1999 - 11.2003] RCH12,22 |
88460-26330 |
US $663.94 |
||
|
88460B
|
88460B
88688-26470
Bracket, Cooler Condenser, No.1
[07.1999 - 11.2003] RCH12,22 |
88688-26470 |
— | ||
|
88460C
|
88460C
88688-26480
Bracket, Cooler Condenser, No.2
[07.1999 - 11.2003] RCH12,22 |
88688-26480 |
— | ||
|
88460D
|
88460D
88688-26490
Bracket, Cooler Condenser, No.3
[07.1999 - 11.2003] RCH12,22 |
88688-26490 |
— | ||
|
88463
|
88463
88463-26100
Bracket, Cooler Condenser, No.1
[07.1999 - 11.2003] RCH12,22 |
88463-26100 |
— | ||
|
88463B
|
88463B
88463-26160
Bracket, Cooler Condenser, No.3
[07.1999 - 11.2003] RCH12,22 |
88463-26160 |
— | ||
|
88463C
|
88463C
88463-26170
Bracket, Cooler Condenser, No.4
[07.1999 - 11.2003] RCH12,22 |
88463-26170 |
— | ||
|
88463D
|
88463D
88463-26180
Bracket, Cooler Condenser, No.5
[07.1999 - 11.2003] RCH12,22 |
88463-26180 |
— | ||
|
88463E
|
88463E
88463-26180
Bracket, Cooler Condenser, No.5
[07.1999 - 11.2003] RCH12,22 |
88463-26180 |
— | ||
|
88467
|
88467
88467-95704 Cushion, Cooler Condenser, No.1[07.1999 - 11.2003] RCH12,22 |
88467-95704 |
US $3.72 |
||
|
88467A
|
88467A
88467-95D01
Cushion, Cooler Condenser, No.1
[07.1999 - 11.2003] RCH12,22 |
88467-95D01 |
— | ||
|
88471
|
88471
88471-28100 Tank, Receiver Air Conditioner[07.1999 - 11.2003] RCH12,22 |
88471-28100 |
US $95.12 |
||
|
88472
|
88472
88472-26100
Bracket, Receiver Tank, No.1
[07.1999 - 11.2003] RCH12,22 |
88472-26100 |
— | ||
|
88539L
|
88539L
88539-26310
Hose, Drain Cooler
[07.1999 - 11.2003] RCH12,22 |
88539-26310 |
— | ||
|
88645H
|
88645H
88645-34010 Switch, Pressure[07.1999 - 11.2003] RCH12,22 |
88645-34010 |
from US $32.78 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[07.1999 - 11.2003] RCH12,22 |
88645-04040 |
US $120.41 |
||
|
88711
|
88711
88711-26710 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [07.1999 - 11.2003] RCH12,22 |
88711-26710 |
US $179.09 |
||
|
88712
|
88712
88712-26600 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [07.1999 - 11.2003] RCH12,22 |
88712-26600 |
US $214.03 |
||
|
88716A
|
88716A
88716-26670
Pipe, Cooler Refrigerant Liquid, A
[07.1999 - 11.2003] RCH12,22 |
88716-26670 |
— | ||
|
88716B
|
88716B
88716-2F100 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [07.1999 - 11.2003] RCH12,22 |
88716-2F100 |
US $74.26 |
||
|
88716C
|
88716C
88716-26680 Pipe, Cooler Refrigerant Liquid, C[07.1999 - 11.2003] RCH12,22 |
88716-26680 |
US $62.55 |
||
|
88716E
|
88716E
88716-26690 Pipe, Cooler Refrigerant Liquid, E[07.1999 - 11.2003] RCH12,22 |
88716-26690 |
US $80.08 |
||
|
88717A
|
88717A
88717-26500 Pipe, Cooler Refrigerant Suction, A[07.1999 - 11.2003] RCH12,22 |
88717-26500 |
US $164.53 |
||
|
88717B
|
88717B
88717-26490
Pipe, Cooler Refrigerant Suction, B
[07.1999 - 11.2003] RCH12,22 |
88717-26490 |
— | ||
|
88723B
|
88723B
88723-20040 Label, Cooler Service Caution[07.1999 - 11.2003] RCH12,22 |
88723-20040 |
from US $2.37 |
||
|
887182A230
|
887182A230
88718-2A230
Clamp(For Cooler Refrigerant Pipe), No.3
|
88718-2A230 |
— | ||
|
8871824030
|
8871824030
88718-24030
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-24030 |
— | ||
|
8871826420
|
8871826420
88718-26420
Pipe, Cooler Refrigerant Suction, No.2
|
88718-26420 |
— | ||
|
8871826430
|
8871826430
88718-26430
Pipe, Cooler Refrigerant Suction, No.2
|
88718-26430 |
— | ||
|
8871826440
|
8871826440
88718-26440
Pipe, Cooler Refrigerant Suction, No.2
|
88718-26440 |
— | ||
|
8871826450
|
8871826450
88718-26450
Pipe, Cooler Refrigerant Suction, No.2
|
88718-26450 |
— | ||
|
8871826480
|
8871826480
88718-26480
Pipe, Cooler Refrigerant Suction, No.2
|
88718-26480 |
— | ||
|
9009120512
|
9009120512
90091-20512 BOLT WWASHER |
90091-20512 |
US $0.28 |
||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9151160630
|
9151160630
91511-60630 BOLT |
91511-60630 |
US $2.15 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9338556020
|
9338556020
93385-56020
New Genuine Part
|
93385-56020 |
— | ||
| replacement | |||||
|
9338556020
|
9338556020
90091-20641
New Genuine Part
|
90091-20641 |
— | ||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
