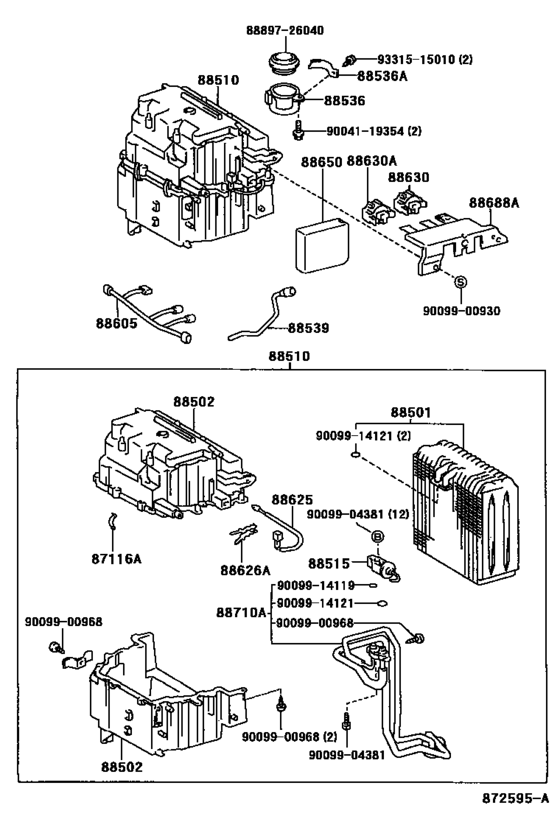

Heating & Air Conditioning - Cooler Unit ([08.1995 - 08.2006] (9508-0608)ARL) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[07.1999 - 11.2003] RCH12,22 |
87116-14010 |
— | ||
|
88501
|
88501
88501-26100
Evaporator Sub-Assy, Cooler, No.1
[07.1999 - 11.2003] RCH12,22 |
88501-26100 |
— | ||
|
88502
|
88502
88502-26010
Case Sub-Assy, Cooling Unit
[07.1999 - 11.2003] RCH12,22 UPPER |
88502-26010 |
— | ||
|
88502
|
88502
88502-26031
Case Sub-Assy, Cooling Unit
[07.1999 - 11.2003] RCH12,22 LOWER |
88502-26031 |
— | ||
|
88510
|
88510
88510-2F150
Unit Assy, Cooler
[07.1999 - 08.2006] KLH12,22,RCH12,22..RHD |
88510-2F150 |
— | ||
|
88515
|
88515
88515-20100
Valve, Cooler Expansion
[07.1999 - 11.2003] RCH12,22 |
88515-20100 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22240 Valve, Cooler Expansion[07.1999 - 11.2003] RCH12,22 |
88515-22240 |
from US $125.76 |
||
|
88536
|
88536
88688-26460
Bracket, Cooling Unit, No.1
[07.1999 - 11.2003] RCH12,22 |
88688-26460 |
— | ||
|
88536A
|
88536A
88688-26450
Bracket, Cooling Unit, No.2
[07.1999 - 11.2003] RCH12,22 |
88688-26450 |
— | ||
|
88539
|
88539
88539-26250
Hose, Cooler Unit Drain, No.1
[07.1999 - 11.2003] RCH12,22 |
88539-26250 |
— | ||
|
88605
|
88605
88605-26830
Harness Sub-Assy, Cooler Wiring, No.1
[07.1999 - 11.2003] RCH12,22 |
88605-26830 |
— | ||
|
88625
|
88625
88625-26060
Thermistor, Cooler No.2
[07.1999 - 11.2003] RCH12,22 |
88625-26060 |
— | ||
|
88626A
|
88626A
88626-28010
Holder, Thermistor
[07.1999 - 11.2003] RCH12,22 |
88626-28010 |
— | ||
|
88630
|
88630
88630-14030 Relay Assy, Cooler[07.1999 - 11.2003] RCH12,22 |
88630-14030 |
US $16.25 |
||
|
88630A
|
88630A
88630-95702
Relay, Heater Radiator
[07.1999 - 11.2003] RCH12,22 |
88630-95702 |
— | ||
|
88650
|
88650
88650-26220
Amplifier Assy, Cooler Stabilizer
[07.1999 - 11.2003] RCH12,22 |
88650-26220 |
— | ||
|
88688A
|
88688A
88688-26510
Bracket, Cooler Stabilizer Amplifier
[07.1999 - 11.2003] RCH12,22 |
88688-26510 |
— | ||
|
88710A
|
88710A
88710-26220 Tube Assy, Air Conditioner[07.1999 - 11.2003] RCH12,22 |
88710-26220 |
US $241.70 |
||
|
8889726040
|
8889726040
88897-26040
Valve, Cooler Magnet
|
88897-26040 |
— | ||
|
9004119354
|
9004119354
90041-19354
BOLT
|
90041-19354 |
— | ||
|
9009900930
|
9009900930
90099-00930
New Genuine Part
|
90099-00930 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
