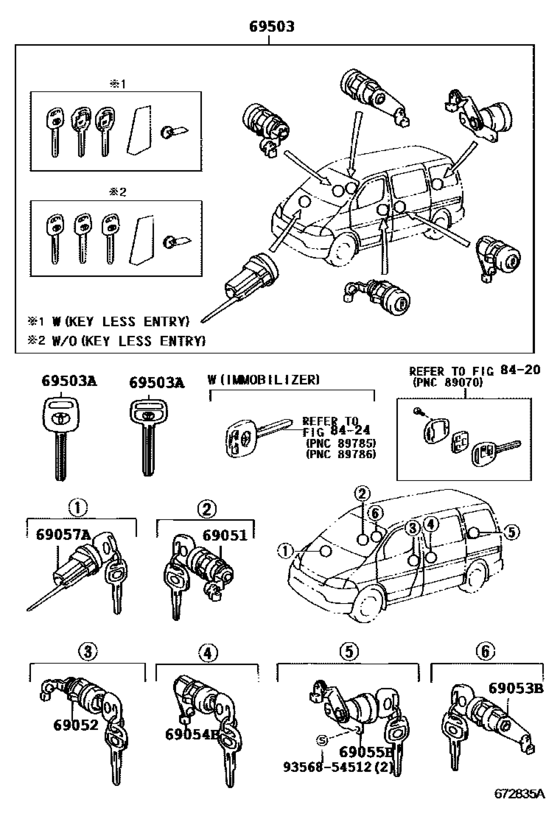

Lock Cylinder Set ([08.2001 - ] (0108- )) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-26030 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [07.1999 - 11.2003] RCH12,22 |
69051-26030 |
US $44.99 |
||
|
69052
|
69052
69052-26030 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [07.1999 - 11.2003] RCH12,22 |
69052-26030 |
US $44.99 |
||
|
69054B
|
69054B
69054-26050 Cylinder & Key Set, Slide Door Lock, LhSLIDE DOOR LOCK, LH [07.1999 - 11.2003] RCH12,22 |
69054-26050 |
US $44.99 |
||
|
69055B
|
69055B
69055-26050 Cylinder & Key Set, Back Door LockBACK DOOR LOCK [07.1999 - 11.2003] RCH12,22 |
69055-26050 |
US $44.99 |
||
| replacement | |||||
|
69055B
|
69055B
69055-38020 Cylinder & Key Set, Back Door LockBACK DOOR LOCK [07.1999 - 11.2003] RCH12,22 |
69055-38020 |
US $60.57 |
||
|
69055B
|
69055B
69055-26120 Cylinder & Key Set, Back Door LockBACK DOOR LOCK [07.1999 - 11.2003] RCH12,22 W(DOUBLE SWING BACK DOOR) |
69055-26120 |
from US $44.99 |
||
|
69057A
|
69057A
69057-26030 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [07.1999 - 11.2003] RCH12,22 |
69057-26030 |
US $78.62 |
||
|
69503
|
69503
69005-26210 Cylinder Set, LockLOCK [08.2001 - 11.2003] RCH12,22 W(KEY LESS ENTRY) |
69005-26210 |
US $264.99 |
||
|
69503
|
69503
69005-26270 Cylinder Set, LockLOCK [08.2001 - 11.2003] RCH12,22 W(DOUBLE SWING BACK DOOR & KEY LESS ENTRY) |
69005-26270 |
US $264.99 |
||
|
69503
|
69503
69503-26210 Cylinder Set, LockLOCK [07.1999 - 11.2003] RCH12,22 |
69503-26210 |
US $247.52 |
||
| replacement | |||||
|
69503
|
69503
69503-26240 Cylinder Set, LockLOCK [07.1999 - 11.2003] RCH12,22 |
69503-26240 |
US $279.55 |
||
|
69503
|
69503
69503-26640 Cylinder Set, LockLOCK [07.1999 - 11.2003] RCH12,22 W(DOUBLE SWING BACK DOOR) |
69503-26640 |
US $247.52 |
||
| replacement | |||||
|
69503
|
69503
69503-26610 Cylinder Set, LockLOCK [07.1999 - 11.2003] RCH12,22 W(DOUBLE SWING BACK DOOR) |
69503-26610 |
US $238.78 |
||
|
69503A
|
69503A
90999-00185 Key, Blank[07.1999 - 11.2003] RCH12,22 MASTER KEY,W(*68) |
90999-00185 |
from US $10.55 |
||
|
69503A
|
69503A
90999-00186 Key, Blank[08.2001 - 11.2003] RCH12,22 MASTER KEY,W(KEY LESS ENTRY) |
90999-00186 |
from US $6.30 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
