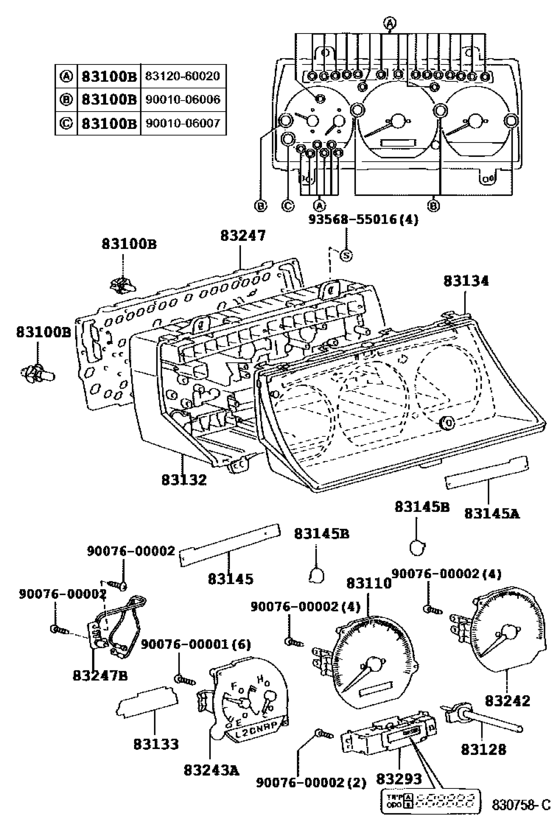

Meter ([08.2001 - 08.2008] W(TACHOMETER) (0108-0808)) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83120-60020 Bulb, Combination Meter, No.1[08.2001 - 11.2003] RCH12,22 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
83120-60020 |
from US $3.63 |
||
|
83100B
|
83100B
90010-06006 Bulb, Combination Meter, No.1[08.2001 - 11.2003] RCH12 12V 3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION; RCH22 12V 3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION, W(TACHO METER) |
90010-06006 |
from US $1.83 |
||
|
83100B
|
83100B
90010-06007 Bulb, Combination Meter, No.1[08.2001 - 11.2003] RCH12,22 12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
90010-06007 |
from US $1.77 |
||
|
83110
|
83110
83220-26060 Speedometer Assy[07.1999 - 08.2001] RCH12,22 |
83220-26060 |
US $384.38 |
||
|
83110
|
83110
83220-26061
Speedometer Assy
[08.2001 - 11.2003] RCH12,22 |
83220-26061 |
— | ||
|
83128
|
83128
83128-22480
Knob, Trip Counter
[07.1999 - 08.2001] LXH1#,2#,RCH1#,2# |
83128-22480 |
— | ||
|
83128
|
83128
83224-26380 Knob, Trip Counter[08.2001 - 11.2003] RCH12,22 |
83224-26380 |
US $5.82 |
||
|
83132
|
83132
83841-26010 Case, Combination MeterCOMBINATION METER [07.1999 - 08.2001] LXH1#,2#,RCH1#,2# |
83841-26010 |
US $28.25 |
||
|
83132
|
83132
83841-26600 Case, Combination Meter[08.2001 - 11.2003] RCH12,22 W(TACHOMETER) |
83841-26600 |
US $27.81 |
||
|
83134
|
83134
83821-26030 Cover, Combination Meter, No.1COMBINATION METER, NO.1 [07.1999 - 10.1999] LXH12,RCH1#,22..(02S,08S)..MTM; RCH13..LHD..MTM..(DX,STD);LXH1#,2#,RCH19,23,29..MTM..(DX,STD) W(TACHOMETER) |
83821-26030 |
US $74.26 |
||
|
83134
|
83134
83821-26850 Cover, Combination Meter, No.1COMBINATION METER, NO.1 [10.1999 - 12.1999] LXH1#,2#,RCH1#,2#..MTM W(TACHOMETER) |
83821-26850 |
US $74.26 |
||
| replacement | |||||
|
83134
|
83134
83821-26030 Cover, Combination Meter, No.1COMBINATION METER, NO.1 [10.1999 - 12.1999] LXH1#,2#,RCH1#,2#..MTM W(TACHOMETER) |
83821-26030 |
US $74.26 |
||
|
83134
|
83134
83822-26280 Cover, Combination Meter, No.1[08.2001 - 05.2006] RCH12,19,2#..DX,STD;RCH13..LHD..(DX,STD) |
83822-26280 |
US $46.16 |
||
|
83145
|
83145
83831-2F210 Lens, Meter, No.1METER, NO.1 [07.1999 - 08.2001] RCH12,22 |
83831-2F210 |
US $8.88 |
||
|
83145
|
83145
83831-2F211 Lens, Meter, No.1METER, NO.1 [08.2001 - 11.2003] RCH12,22 |
83831-2F211 |
US $7.43 |
||
|
83145A
|
83145A
83831-26090 Lens, Meter, No.2METER, NO.2 [07.1999 - 08.2001] RCH1#,2# |
83831-26090 |
US $7.57 |
||
|
83145A
|
83145A
83832-26010 Lens, Meter, No.2METER, NO.2 [08.2001 - 11.2003] RCH12,22 W(TACHOMETER) |
83832-26010 |
US $7.43 |
||
|
83145A
|
83145A
83832-2F340
Lens, Meter, No.2
[08.2001 - 11.2003] RCH12,22 |
83832-2F340 |
— | ||
|
83145B
|
83145B
83833-26010 Lens, Meter, No.1[08.2001 - 11.2003] RCH12,22 |
83833-26010 |
from US $2.87 |
||
|
83242
|
83242
83881-26100 Tachometer Assy, EngineENGINE [07.1999 - 08.2001] RCH12,22 |
83881-26100 |
US $484.85 |
||
|
83242
|
83242
83881-26410 Tachometer Assy, Engine[08.2001 - 11.2003] RCH12,22 W(TACHOMETER) |
83881-26410 |
US $496.50 |
||
|
83242
|
83242
83881-2F041
Tachometer Assy, Engine
[08.2001 - 11.2003] RCH12,22 |
83881-2F041 |
— | ||
|
83243A
|
83243A
83882-26010
Gauge Sub-Assy, Fuel Receiver
[07.1999 - 08.2001] LXH1#,2#,RCH1#,2#..MTM |
83882-26010 |
— | ||
|
83243A
|
83243A
83882-26530 Gauge Sub-Assy, Fuel Receiver[08.2001 - 11.2003] RCH12,22 |
83882-26530 |
from US $144.14 |
||
|
83247
|
83247
83861-26140 Plate, Meter CircuitMETER CIRCUIT [07.1999 - 08.2001] RCH12,22 |
83861-26140 |
US $57.95 |
||
|
83247
|
83247
83861-2F210
Plate, Meter Circuit
[08.2001 - 11.2003] RCH12,22 |
83861-2F210 |
— | ||
|
83247B
|
83247B
83149-2F070 Plate, Meter Circuit, No.2[07.1999 - 08.2001] LXH1#,2#,RCH1#,2# |
83149-2F070 |
US $58.24 |
||
|
83293
|
83293
83293-26130
Computer, Total Counter Module
[08.2001 - 11.2003] RCH12,22 |
83293-26130 |
— | ||
|
9007600001
|
9007600001
90076-00001 SCREW WITH WASHER |
90076-00001 |
US $3.06 |
||
|
9007600002
|
9007600002
90076-00002 SCREW TAPPING |
90076-00002 |
US $4.08 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
