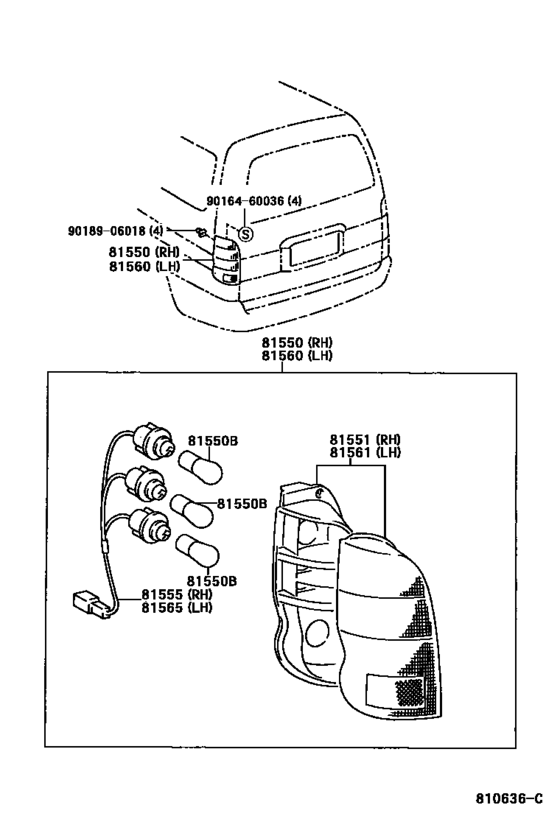

Rear Combination Lamp ([08.1995 - 08.2006] (9508-0608)ARL) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-26150 Lamp Assy, Rear Combination, Rh[07.1999 - 11.2003] RCH12,22 |
81550-26150 |
US $313.04 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[07.1999 - 11.2003] RCH12,22 12V 21W |
99132-11210 |
from US $2.81 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[07.1999 - 11.2003] RCH12,22 12V 21/5W |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-26150 Lens, Rear Combination Lamp, Rh[07.1999 - 11.2003] RCH12,22 |
81551-26150 |
from US $166.94 |
||
|
81555
|
81555
81555-26150 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[07.1999 - 11.2003] RCH12,22 |
81555-26150 |
US $33.20 |
||
|
81560
|
81560
81560-26150 Lamp Assy, Rear Combination, Lh[07.1999 - 11.2003] RCH12,22 |
81560-26150 |
US $313.04 |
||
|
81561
|
81561
81561-26150 Lens, Rear Combination Lamp, Lh[07.1999 - 11.2003] RCH12,22 |
81561-26150 |
US $267.90 |
||
|
81565
|
81565
81555-26150 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[07.1999 - 11.2003] RCH12,22 |
81555-26150 |
US $33.20 |
||
|
9016460036
|
9016460036
90164-60036 New Genuine Part |
90164-60036 |
US $1.38 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
