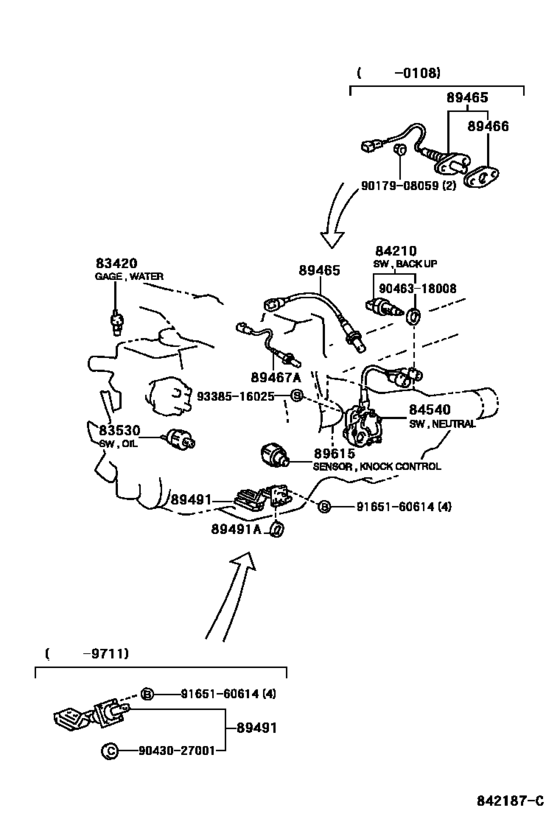

Switch & Relay & Computer ([08.1995 - 05.2006] ENGINE & TRANSMISSION (9508-0605)RCH1#,2#) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[07.1999 - 11.2003] RCH12,22 |
83420-16040 |
from US $28.76 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[07.1999 - 11.2003] RCH12,22 |
83530-28020 |
from US $24.41 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [07.1999 - 11.2003] RCH12,22 |
83530-60020 |
from US $24.16 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[07.1999 - 11.2003] RCH12,22 |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[07.1999 - 11.2003] RCH12,22 |
84210-52050 |
from US $22.85 |
||
|
89491
|
89491
89491-26141 Sensor, Engine Oil Level[07.1999 - 11.2003] RCH12,22 |
89491-26141 |
US $302.85 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[07.1999 - 11.2003] RCH12,22 |
89493-60010 |
from US $2.51 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.05 |
||
|
9046318008
|
9046318008
90463-18008
New Genuine Part
|
90463-18008 |
— | ||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
