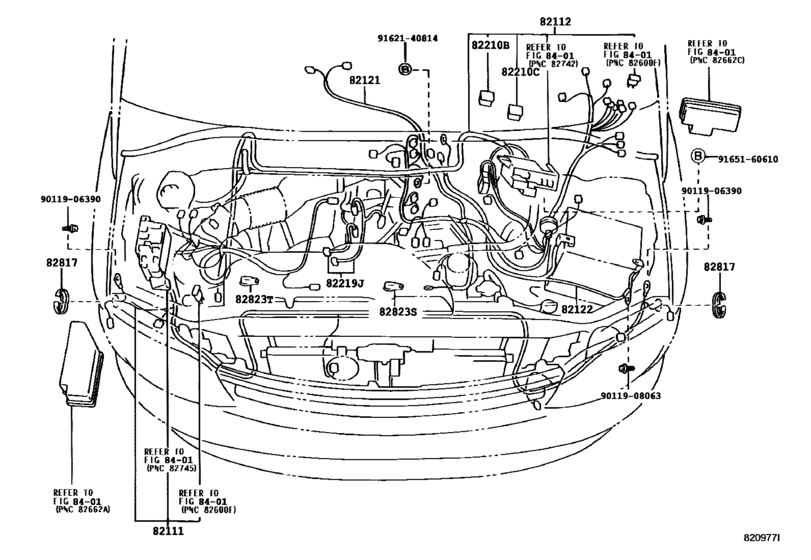

Wiring & Clamp ([08.1995 - 08.2006] ENGINE & ENGINE ROOM WIRE (9508-0608)RCH12,13,22..RHD) Diagram Toyota HIACE
- Year
- 1999 - 2003
- Sales region
- General
- Frame
- RCH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- HIACE/ HIACE S.B.V.
- From
- 07.1999
- To
- 11.2003
- Seating Capacity
- 02S
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-2N260 Wire, Engine Room Main[07.1999 - 11.2003] RCH12,22 |
82111-2N260 |
US $180.54 |
||
|
82112
|
82112
82112-26133 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [07.1999 - 11.2003] RCH12,22 |
82112-26133 |
US $200.93 |
||
|
82121
|
82121
82121-26091 Wire, EngineENGINE [07.1999 - 08.2001] RCH12,22 |
82121-26091 |
US $419.33 |
||
|
82121
|
82121
82121-26092 Wire, EngineENGINE [08.2001 - 11.2003] RCH12,22 |
82121-26092 |
US $642.10 |
||
|
82122
|
82122
82122-26250 Wire, Engine, No.2ENGINE, NO.2 [07.1999 - 11.2003] RCH12,22 |
82122-26250 |
US $219.86 |
||
|
82210C
|
82210C
90982-08190 Fusible Link[07.1999 - 11.2003] RCH12,22 60A,TERMINAL:FEMALE |
90982-08190 |
US $13.44 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[07.1999 - 11.2003] RCH12,22 100A,TERMINAL:MALE |
90982-08246 |
from US $7.29 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[07.1999 - 11.2003] RCH12,22 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.88 |
||
|
82817
|
82817
82817-2B730 Protector, Wiring Harness, No.1[07.1999 - 11.2003] RCH12,22 |
82817-2B730 |
US $7.28 |
||
|
82823T
|
82823T
82823-22050 Cap, Terminal, No.1[07.1999 - 08.2006] RCH13..ATM;KLH1#,2#,LXH1#,2#,RCH12,22 |
82823-22050 |
US $6.99 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
