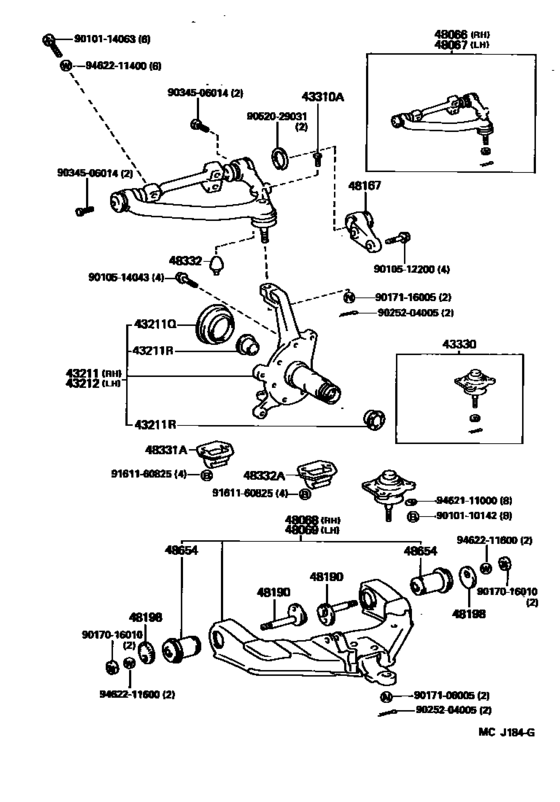

Front Axle Arm & Steering Knuckle ([08.1989 - ] (8908- )LH108,118,RZH109,119) Diagram Toyota HIACE
- Year
- 1993 - 1995
- Sales region
- Europe
- Frame
- RZH109
- grade
- DX
- body
- V
- ENGINE
- 2RZE
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1993
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43201-26030 Knuckle, Steering, Rh[08.1993 - 08.1995] LH108,118,RZH109,119 |
43201-26030 |
US $336.34 |
||
| replacements | |||||
|
43211
|
43211
43201-26031 Knuckle, Steering, Rh[08.1993 - 08.1995] LH108,118,RZH109,119 |
43201-26031 |
US $354.68 |
||
|
43211
|
43211
90304-76005 Seal, Dust(For Front Axle Outer Shaft)[08.1993 - 08.1995] LH108,118,RZH109,119 |
90304-76005 |
from US $18.14 |
||
|
43211Q
|
43211Q
90316-60002
Seal, Oil (For Steering Knuckle)
[08.1989 - 08.1995] LH108,118,RZH109,119 |
90316-60002 |
— | ||
| replacements | |||||
|
43211Q
|
43211Q
90304-76005 Seal, Dust(For Front Axle Outer Shaft)[08.1989 - 08.1995] LH108,118,RZH109,119 |
90304-76005 |
from US $18.14 |
||
|
43211Q
|
43211Q
90316-60004 Seal, Oil (For Steering Knuckle)[08.1989 - 08.1995] LH108,118,RZH109,119 |
90316-60004 |
from US $21.17 |
||
|
43211R
|
43211R
90381-30003 Bush (For Steering Knuckle)[08.1989 - 08.1995] LH108,118,RZH109,119 OUTER |
90381-30003 |
from US $25.92 |
||
|
43211R
|
43211R
90999-70069 Bush (For Steering Knuckle)[08.1989 - 08.1995] LH108,118,RZH109,119 INNER |
90999-70069 |
US $58.24 |
||
| replacement | |||||
|
43211R
|
43211R
90381-30006 Bush (For Steering Knuckle)[08.1989 - 08.1995] LH108,118,RZH109,119 INNER |
90381-30006 |
from US $14.98 |
||
|
43212
|
43212
43202-26030 Knuckle, Steering, Lh[08.1993 - 08.1995] LH108,118,RZH109,119 |
43202-26030 |
US $336.34 |
||
| replacements | |||||
|
43212
|
43212
43202-26031 Knuckle, Steering, Lh[08.1993 - 08.1995] LH108,118,RZH109,119 |
43202-26031 |
US $354.68 |
||
|
43212
|
43212
90304-76005 Seal, Dust(For Front Axle Outer Shaft)[08.1993 - 08.1995] LH108,118,RZH109,119 |
90304-76005 |
from US $18.14 |
||
|
43330
|
43330
43330-29305 Joint Assy, Lower Ball, Front[08.1993 - 08.1995] LH108,118,RZH109,119 |
43330-29305 |
US $96.76 |
||
|
48066
|
48066
48066-29045
Arm Sub-Assy, Front Suspension, Upper Rh
[08.1993 - 08.1995] LH108,118,RZH109,119 |
48066-29045 |
— | ||
| replacement | |||||
|
48066
|
48066
48066-29105 Arm Sub-Assy, Front Suspension, Upper Rh[08.1993 - 08.1995] LH108,118,RZH109,119 |
48066-29105 |
US $383.76 |
||
|
48067
|
48067
48067-29045
Arm Sub-Assy, Front Suspension, Upper Lh
[08.1993 - 08.1995] LH108,118,RZH109,119 |
48067-29045 |
— | ||
| replacement | |||||
|
48067
|
48067
48067-29105 Arm Sub-Assy, Front Suspension, Upper Lh[08.1993 - 08.1995] LH108,118,RZH109,119 |
48067-29105 |
US $383.76 |
||
|
48068
|
48068
48068-26061
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[08.1993 - 05.1995] LH108,118,RZH109,119 |
48068-26061 |
— | ||
| replacement | |||||
|
48068
|
48068
48068-26062
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[08.1993 - 05.1995] LH108,118,RZH109,119 |
48068-26062 |
— | ||
|
48068
|
48068
48068-26062
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[05.1995 - 08.1995] LH108,118,RZH109,119 |
48068-26062 |
— | ||
|
48069
|
48069
48069-26061
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[08.1993 - 05.1995] LH108,118,RZH109,119 |
48069-26061 |
— | ||
| replacement | |||||
|
48069
|
48069
48069-26062
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[08.1993 - 05.1995] LH108,118,RZH109,119 |
48069-26062 |
— | ||
|
48069
|
48069
48069-26062
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[05.1995 - 08.1995] LH108,118,RZH109,119 |
48069-26062 |
— | ||
|
48167
|
48167
48106-26020
Arm, Torque
[08.1989 - 08.1995] LH108,118,RZH109,119 |
48106-26020 |
— | ||
| replacement | |||||
|
48167
|
48167
48106-25020 Arm, Torque[08.1989 - 08.1995] LH108,118,RZH109,119 |
48106-25020 |
US $56.11 |
||
|
48190
|
48190
48190-26020 Cam Assy, Camber Adjust[08.1989 - 08.1995] LH108,118,RZH109,119 |
48190-26020 |
from US $13.16 |
||
|
48198
|
48198
48198-26010 Cam, Camber Adjust, No.2[08.1989 - 08.1995] LH108,118,RZH109,119 |
48198-26010 |
from US $2.91 |
||
|
48331A
|
48331A
48331-26051
Bumper, Front Spring, No.1
[08.1989 - 08.1995] LH108,118,RZH109,119 |
48331-26051 |
— | ||
|
48332
|
48332
48332-35020 Bumper, Front Spring, No.2[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
48332-35020 |
from US $3.23 |
||
|
48332A
|
48332A
48331-26061
Bumper, Front Spring, No.3
[08.1989 - 08.1995] LH108,118,RZH109,119 |
48331-26061 |
— | ||
|
48654
|
48654
48061-26040 Bush, Lower Arm[05.1995 - 08.1995] LH108,118,RZH109,119 |
48061-26040 |
from US $54.87 |
||
|
48654
|
48654
48061-35011 Bush, Lower Arm[08.1993 - 05.1995] LH108,118,RZH109,119 |
48061-35011 |
from US $56.59 |
||
|
9010110142
|
9010110142
90101-10142
New Genuine Part
|
90101-10142 |
— | ||
| replacement | |||||
|
9010110142
|
9010110142
90119-10832 Bolt |
90119-10832 |
US $2.33 |
||
|
9010114063
|
9010114063
90101-14063 New Genuine Part |
90101-14063 |
US $7.35 |
||
|
9010512200
|
9010512200
90105-12200 Bolt(For Torque Arm Setting) |
90105-12200 |
US $2.51 |
||
|
9010514043
|
9010514043
90105-14043 Bolt(For Steering Knuckle Arm Rh) |
90105-14043 |
US $6.99 |
||
|
9017016010
|
9017016010
90170-16010 NUT HEXAGON |
90170-16010 |
US $4.30 |
||
|
9017106005
|
9017106005
90171-06005
New Genuine Part
|
90171-06005 |
— | ||
|
9017116005
|
9017116005
90171-16005 Nut, Castle(For Tie Rod End) |
90171-16005 |
US $2.69 |
||
|
9025204005
|
9025204005
90252-04005 PIN COTTER |
90252-04005 |
from US $0.76 |
||
|
9034506014
|
9034506014
90345-06014 Plug (For Ball Joint) |
90345-06014 |
US $1.97 |
||
|
9052029031
|
9052029031
90520-29031
New Genuine Part
|
90520-29031 |
— | ||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9462111000
|
9462111000
94621-11000 Washer, Spring(For Steering Center Arm) |
94621-11000 |
from US $1.03 |
||
|
9462211400
|
9462211400
94622-11400 New Genuine Part |
94622-11400 |
US $4.30 |
||
|
9462211600
|
9462211600
94622-11600 WASHER |
94622-11600 |
from US $1.60 |
||
