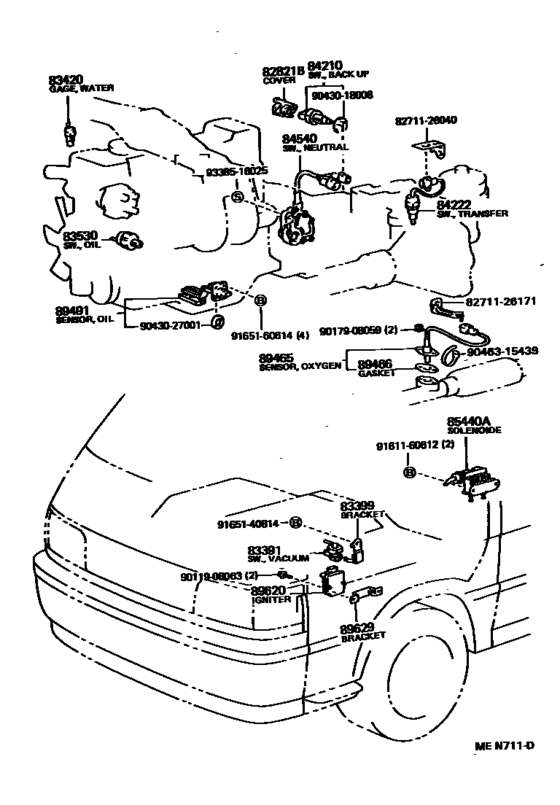

Switch & Relay & Computer ([08.1989 - ] (8908- )RZH10#,11#) Diagram Toyota HIACE
- Year
- 1993 - 1995
- Sales region
- Europe
- Frame
- RZH109
- grade
- DX
- body
- V
- ENGINE
- 2RZE
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1993
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82821B
|
82821B
82821-12251
Cover, Connector
[03.1992 - 12.1994] LH10#,11#,RZH10#,11#..5F |
82821-12251 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1993 - 08.1995] LH10#,11#,RZH10#,11# NIPPONDENSO |
83420-16040 |
from US $28.76 |
||
|
83420
|
83420
83420-20030
Gage Assy, Water Temperature Sender
[08.1993 - 05.1994] LH10#,11#,RZH10#,11# YAZAKI |
83420-20030 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1993 - 05.1994] LH10#,11#,RZH10#,11# YAZAKI |
83420-16040 |
from US $28.76 |
||
|
83530
|
83530
83530-14060
Switch Assy, Oil Pressure (For Engine)
[05.1992 - 11.1994] RZH10#,11# |
83530-14060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.1992 - 11.1994] RZH10#,11# |
83530-60020 |
from US $24.16 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[11.1994 - 08.1995] RZH10#,11# |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.1994 - 08.1995] RZH10#,11# |
83530-60020 |
from US $24.16 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..5F |
84210-52050 |
from US $22.85 |
||
|
84222
|
84222
84222-26010 Switch, Transfer Indicator, No.1[08.1989 - 08.1995] LH108,118,RZH109,119 |
84222-26010 |
US $58.82 |
||
|
85440A
|
85440A
85440-26010
Solenoid Assy, Four Wheel Drive Control
[08.1989 - 08.1995] LH108,118,RZH109,119 |
85440-26010 |
— | ||
|
89465
|
89465
89465-39445 Sensor, Oxygen[05.1992 - 08.1995] RZH103,109,113,119 |
89465-39445 |
US $144.14 |
||
| replacement | |||||
|
89465
|
89465
89465-39446
Sensor, Oxygen
[05.1992 - 08.1995] RZH103,109,113,119 |
89465-39446 |
— | ||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1989 - 08.1995] RZH103,109,113,115,119 |
89466-20020 |
from US $12.77 |
||
|
89491
|
89491
89491-26061 Sensor, Engine Oil Level[05.1992 - 08.1995] RZH10#,11# |
89491-26061 |
US $304.30 |
||
| replacement | |||||
|
89491
|
89491
89491-26062 Sensor, Engine Oil Level[05.1992 - 08.1995] RZH10#,11# |
89491-26062 |
US $305.76 |
||
|
89620
|
89620
89621-26010 Igniter Assy[08.1989 - 08.1995] RZH103,109,113,115,119 |
89621-26010 |
from US $510.12 |
||
|
89629
|
89629
89629-26010 Bracket, Igniter Assy[08.1989 - 08.1995] RZH103,109,113,115,119 |
89629-26010 |
US $12.38 |
||
|
8271126040
|
8271126040
82711-26040 Wire, Fuse To Fuse(for Combustion Heater) |
82711-26040 |
US $6.41 |
||
|
8271126171
|
8271126171
82711-26171 Wire, Fuse To Fuse(for Combustion Heater) |
82711-26171 |
US $7.72 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.05 |
||
|
9046315439
|
9046315439
90463-15439 New Genuine Part |
90463-15439 |
US $2.62 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
