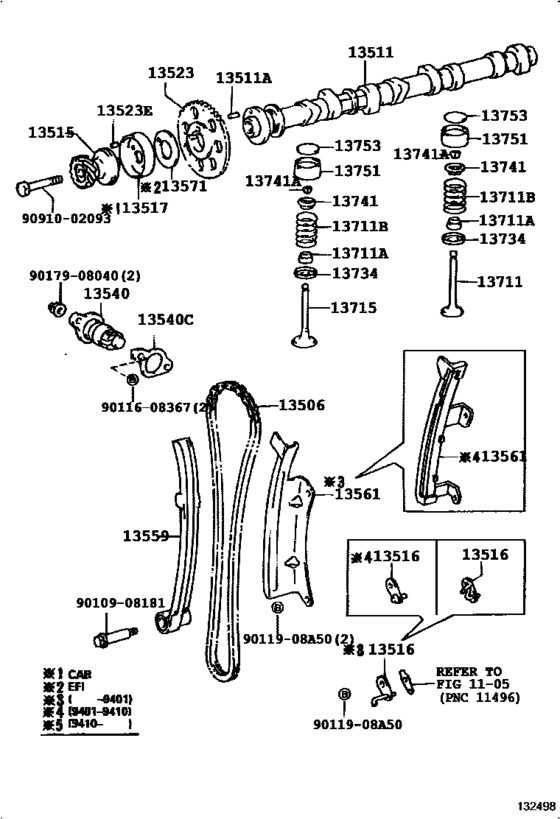

Camshaft & Valve ([08.1989 - ] (8908- )1RZ,2RZE) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- RZH113
- grade
- DX
- body
- V
- ENGINE
- 2RZE
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13506
|
13506
13506-75010 Chain Sub-Assy[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13506-75010 |
from US $102.84 |
||
|
13511
|
13511
13501-75010 Camshaft[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13501-75010 |
US $476.11 |
||
|
13511A
|
13511A
90250-06068 Pin, Straight[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# L=11,OD=6 |
90250-06068 |
from US $0.99 |
||
|
13515
|
13515
13515-75010 Gear, Distributor Drive[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13515-75010 |
US $37.39 |
||
|
13516
|
13516
13516-75010
Jet, Oil
[08.1989 - 01.1994] 1RZ,2RZE..RZH10#,11# |
13516-75010 |
— | ||
| replacement | |||||
|
13516
|
13516
13516-76010
Jet, Oil
[08.1989 - 01.1994] 1RZ,2RZE..RZH10#,11# |
13516-76010 |
— | ||
|
13516
|
13516
13516-75020 Jet, Oil[10.1994 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13516-75020 |
US $10.48 |
||
|
13516
|
13516
13516-76010
Jet, Oil
[01.1994 - 10.1994] 1RZ,2RZE..RZH10#,11# |
13516-76010 |
— | ||
|
13523
|
13523
13523-75010 Gear Or Sprocket, Camshaft Timing[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13523-75010 |
from US $25.56 |
||
|
13523E
|
13523E
90250-05021 Pin, Straight[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
90250-05021 |
from US $0.68 |
||
|
13540
|
13540
13540-75010 Tensioner Assy, Chain, No.1[08.1989 - 01.1994] 1RZ,2RZE..RZH10#,11# |
13540-75010 |
from US $26.68 |
||
|
13540
|
13540
13540-75020 Tensioner Assy, Chain, No.1[01.1994 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13540-75020 |
from US $28.94 |
||
|
13540C
|
13540C
13552-75010 Gasket(For Chain Tensioner)[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13552-75010 |
from US $2.44 |
||
|
13559
|
13559
13559-75010
Slipper, Chain Tensioner
[08.1989 - 12.1991] 1RZ,2RZE..RZH10#,11# |
13559-75010 |
— | ||
| replacement | |||||
|
13559
|
13559
13559-75011 Slipper, Chain Tensioner[08.1989 - 12.1991] 1RZ,2RZE..RZH10#,11# |
13559-75011 |
US $50.42 |
||
|
13559
|
13559
13559-75011 Slipper, Chain Tensioner[12.1991 - 01.1994] 1RZ,2RZE..RZH10#,11# |
13559-75011 |
US $50.42 |
||
|
13559
|
13559
13559-76010 Slipper, Chain Tensioner[01.1994 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13559-76010 |
from US $30.26 |
||
|
13561
|
13561
13561-75010 Damper, Chain Vibration, No.1[08.1989 - 12.1989] 1RZ,2RZE..RZH10#,11# |
13561-75010 |
US $38.44 |
||
| replacements | |||||
|
13561
|
13561
91651-B0820 Bolt, Radiator Side Support Plate[08.1989 - 12.1989] 1RZ,2RZE..RZH10#,11# |
91651-B0820 |
from US $0.99 |
||
|
13561
|
13561
13561-76010 Damper, Chain Vibration, No.1[08.1989 - 12.1989] 1RZ,2RZE..RZH10#,11# |
13561-76010 |
US $71.72 |
||
|
13561
|
13561
13561-76010 Damper, Chain Vibration, No.1[12.1989 - 01.1994] 1RZ,2RZE..RZH10#,11# |
13561-76010 |
US $71.72 |
||
|
13561
|
13561
13561-76020 Damper, Chain Vibration, No.1[01.1994 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13561-76020 |
from US $44.03 |
||
|
13571
|
13571
13571-35010
Plate, Camshaft Thrust
[08.1989 - 08.1995] 2RZE..RZH103,109,113,115,119 |
13571-35010 |
— | ||
|
13711
|
13711
13711-75030
Valve, Intake
[08.1989 - 08.1995] 2RZE..RZH103,109,113,115,119 |
13711-75030 |
— | ||
| replacement | |||||
|
13711
|
13711
13711-75040 Valve, Intake[08.1989 - 08.1995] 2RZE..RZH103,109,113,115,119 |
13711-75040 |
from US $35.37 |
||
|
13711A
|
13711A
90913-02053
Seal Or Ring, O(For Valve Stem Oil)
[08.1989 - 08.1995] 2L..LH10#,11#; 1RZ,2RZE..RZH10#,11# |
90913-02053 |
— | ||
| replacement | |||||
|
13711A
|
13711A
90913-02110 Seal Or Ring, O(For Valve Stem Oil)[08.1989 - 08.1995] 2L..LH10#,11#; 1RZ,2RZE..RZH10#,11# |
90913-02110 |
from US $4.84 |
||
|
13711B
|
13711B
90501-45033 Spring, Compression(For Inner)[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
90501-45033 |
US $8.74 |
||
|
13715
|
13715
13715-75030 Valve, Exhaust[08.1989 - 08.1995] 2RZE..RZH103,109,113,115,119 |
13715-75030 |
from US $42.26 |
||
|
13734
|
13734
13734-75010 Seat, Valve Spring[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13734-75010 |
US $5.77 |
||
|
13741
|
13741
13741-43010 Retainer, Valve Spring[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13741-43010 |
US $4.72 |
||
|
13741A
|
13741A
90913-03014 Lock, Valve Spring Retainer[08.1989 - 08.1995] 2L..LH10#,11#; 1RZ,2RZE..RZH10#,11# |
90913-03014 |
from US $1.40 |
||
|
13751
|
13751
13751-64011 Lifter, Valve[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
13751-64011 |
from US $16.44 |
||
|
13753
|
13753
13753-65600 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.25 |
13753-65600 |
US $8.91 |
||
|
13753
|
13753
13753-65620 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.30 |
13753-65620 |
US $8.44 |
||
|
13753
|
13753
13753-65640 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.35 |
13753-65640 |
US $8.44 |
||
|
13753
|
13753
13753-65660 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.40 |
13753-65660 |
US $8.44 |
||
|
13753
|
13753
13753-65680 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.45 |
13753-65680 |
US $8.44 |
||
|
13753
|
13753
13753-65700 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.50 |
13753-65700 |
US $8.44 |
||
|
13753
|
13753
13753-65720 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.55 |
13753-65720 |
US $8.44 |
||
|
13753
|
13753
13753-65740 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.60 |
13753-65740 |
US $8.44 |
||
|
13753
|
13753
13753-65760 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.65 |
13753-65760 |
US $8.21 |
||
|
13753
|
13753
13753-65780 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.70 |
13753-65780 |
US $8.21 |
||
|
13753
|
13753
13753-65800 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.75 |
13753-65800 |
US $8.21 |
||
|
13753
|
13753
13753-65820 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.80 |
13753-65820 |
US $8.21 |
||
|
13753
|
13753
13753-65840 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.85 |
13753-65840 |
US $8.21 |
||
|
13753
|
13753
13753-65860 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.90 |
13753-65860 |
US $8.21 |
||
|
13753
|
13753
13753-65880 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=2.95 |
13753-65880 |
US $8.21 |
||
|
13753
|
13753
13753-6B010 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=3.00 |
13753-6B010 |
US $8.21 |
||
|
13753
|
13753
13753-6B030 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=3.05 |
13753-6B030 |
US $8.44 |
||
|
13753
|
13753
13753-6B050 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=3.10 |
13753-6B050 |
US $8.44 |
||
|
13753
|
13753
13753-6B070 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=3.15 |
13753-6B070 |
US $8.44 |
||
|
13753
|
13753
13753-6B090 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=3.20 |
13753-6B090 |
US $8.44 |
||
|
13753
|
13753
13753-6B110 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=3.25 |
13753-6B110 |
US $8.44 |
||
|
13753
|
13753
13753-6B130 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=3.30 |
13753-6B130 |
US $8.44 |
||
|
13753
|
13753
13753-6B150 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=3.35 |
13753-6B150 |
US $8.44 |
||
|
13753
|
13753
13753-6B170 Shim, Valve Adjusting[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# T=3.40 |
13753-6B170 |
US $8.44 |
||
|
9011908A50
|
9011908A50
90119-08A50 New Genuine Part |
90119-08A50 |
US $1.75 |
||
| replacement | |||||
|
9011908A50
|
9011908A50
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.78 |
||
|
9010908181
|
9010908181
90109-08181 BOLT |
90109-08181 |
from US $6.20 |
||
|
9011608367
|
9011608367
90116-08367 New Genuine Part |
90116-08367 |
US $2.04 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9091002093
|
9091002093
90910-02093 Bolt |
90910-02093 |
US $3.85 |
||
