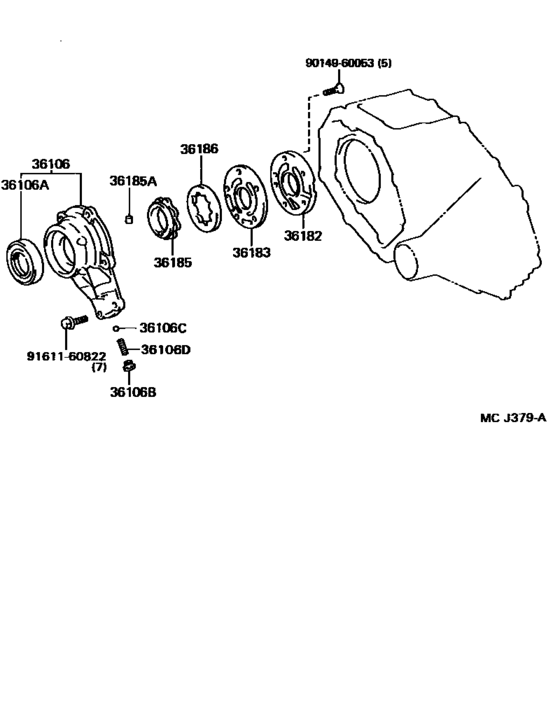

Transfer Oil Pump ([08.1989 - ] (8908- )) Diagram Toyota HIACE
- Year
- 1993 - 1995
- Sales region
- Europe
- Frame
- RZH113
- grade
- STD
- body
- V
- ENGINE
- 2RZE
- DESTINATION
- SDN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1993
- To
- 08.1995
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9014960053
|
9014960053
90149-60053 Screw(For Transmission Oil Pump Cover) |
90149-60053 |
US $0.61 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
