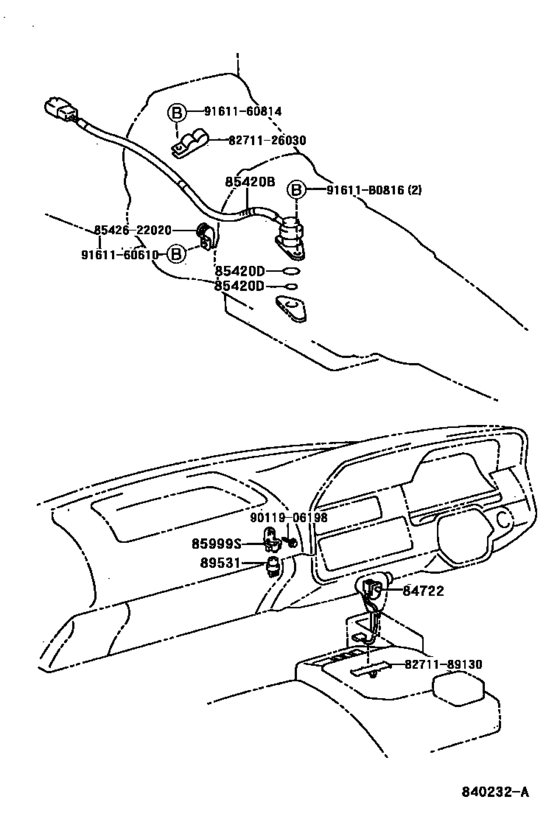

Overdrive & Electronic Controlled Transmission ([08.1989 - ] (8908- )RZH103,113,114,125..4FC) Diagram Toyota HIACE
- Year
- 1989 - 1998
- Sales region
- General
- Frame
- RZH113
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2RZ
- DESTINATION
- ARL
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1998
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84722
|
84722
84722-20060-23 Switch, Transmission ControlTRANSMISSION CONTROL [02.1990 - 08.1993] LH103,113,RZH103,113,114..4FC GRAY,TRIM1# |
84722-20060-23 |
US $74.26 |
||
| replacement | |||||
|
84722
|
84722
84722-26080-B1
Switch, Transmission Control
[02.1990 - 08.1993] LH103,113,RZH103,113,114..4FC GRAY,TRIM1# |
84722-26080-B1 |
— | ||
|
84722
|
84722
84722-26050-03 Switch, Transmission Control[08.1989 - 02.1990] LH103,113,RZH103,113,114..4FC GRAY,TRIM1# |
84722-26050-03 |
US $41.93 |
||
| replacement | |||||
|
84722
|
84722
84722-26080-B1
Switch, Transmission Control
[08.1989 - 02.1990] LH103,113,RZH103,113,114..4FC GRAY,TRIM1# |
84722-26080-B1 |
— | ||
|
84722
|
84722
84722-26100-B0 Switch, Transmission ControlTRANSMISSION CONTROL [08.1993 - 07.1999] LH103,113,125,RZH103,113,125..4FC BLUISH GRAY,TRIM1# |
84722-26100-B0 |
US $41.93 |
||
| replacement | |||||
|
84722
|
84722
84722-26080-B1
Switch, Transmission Control
[08.1993 - 07.1999] LH103,113,125,RZH103,113,125..4FC BLUISH GRAY,TRIM1# |
84722-26080-B1 |
— | ||
|
85420B
|
85420B
85420-26030
Solenoid Assy, Transmission
[08.1989 - 08.1993] RZH103,113,114..4FC |
85420-26030 |
— | ||
|
85420B
|
85420B
85420-30160 Solenoid Assy, Transmission[08.1993 - 07.1999] LH103,113,125,RZH103,113..4FC..(CBR,DSL) |
85420-30160 |
US $204.42 |
||
|
85420D
|
85420D
90301-11001 Ring, O (For Transmission Oil Filler Plug)[08.1989 - 07.1999] LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) INNER |
90301-11001 |
US $1.93 |
||
|
85420D
|
85420D
90301-23001 Ring, O (For Transmission Solenoid)[08.1989 - 07.1999] LH103,113,125,RZH103,113,114..4FC..(CBR,DSL) OUTER |
90301-23001 |
US $4.68 |
||
|
85999S
|
85999S
85999-12050
Bracket, Main Relay
[08.1989 - 08.1993] RZH103,113,114..4FC |
85999-12050 |
— | ||
|
89531
|
89531
90987-03001 Relay, Lpg Preheater Cut[08.1989 - 08.1993] RZH103,113,114..4FC |
90987-03001 |
from US $26.14 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $0.95 |
||
|
8271126030
|
8271126030
82711-26030 Wire, Fuse To Fuse(for Combustion Heater) |
82711-26030 |
US $8.30 |
||
|
8271189130
|
8271189130
82711-89130 Wire, Fuse To Fuse(for Combustion Heater) |
82711-89130 |
US $3.64 |
||
|
8542622020
|
8542622020
85426-22020 Clamp(For Clutch Tube) |
85426-22020 |
US $9.32 |
||
|
9011906198
|
9011906198
90119-06198 New Genuine Part |
90119-06198 |
US $0.79 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $0.83 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.72 |
||
