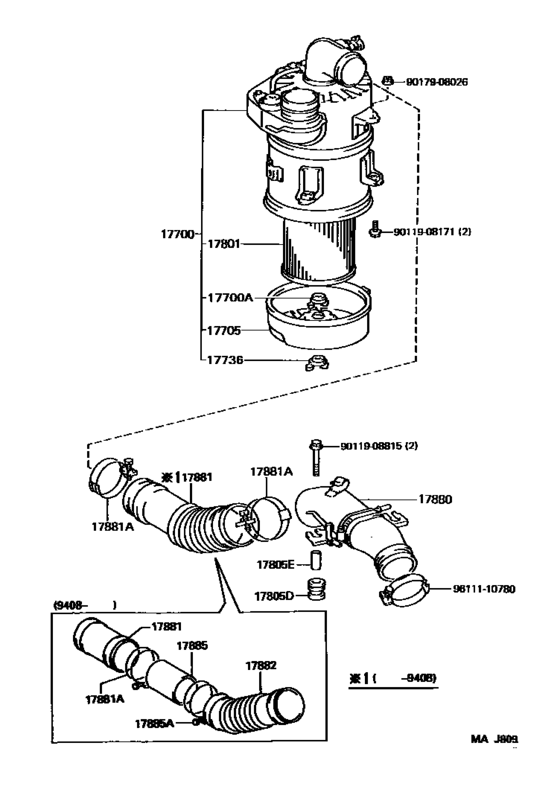

Air Cleaner ([08.1989 - ] (8908- )2RZE) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- RZH119
- grade
- DX
- body
- V
- ENGINE
- 2RZE
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-75030 Cleaner Assy, Air[08.1989 - 02.1992] 2RZE..RZH103,109,113,115,119 |
17700-75030 |
US $334.88 |
||
| replacement | |||||
|
17700
|
17700
17700-75031 Cleaner Assy, Air[08.1989 - 02.1992] 2RZE..RZH103,109,113,115,119 |
17700-75031 |
US $336.34 |
||
|
17700
|
17700
17700-75031 Cleaner Assy, Air[02.1992 - 08.1995] 2RZE..RZH103,109,113,115,119 |
17700-75031 |
US $336.34 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[08.1989 - 08.1995] 2L..LH10#,11#; 1RZ,2RZE..RZH10#,11# |
90175-08008 |
from US $2.52 |
||
|
17705
|
17705
17705-75010
Cap Sub-Assy, Air Cleaner
[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
17705-75010 |
— | ||
|
17736
|
17736
90175-06003 Nut, Wing(For Air Cleaner)[08.1989 - 08.1995] 2L..LH10#,11#; 1RZ,2RZE..RZH10#,11# |
90175-06003 |
from US $1.21 |
||
|
17801
|
17801
17801-54100 Element Sub-Assy, Air Cleaner Filter[08.1989 - 08.1995] 2L..LH10#,11#; 1RZ,2RZE..RZH10#,11# |
17801-54100 |
from US $39.13 |
||
|
17805D
|
17805D
90540-12009 Grommet(For Intake Air Connector)[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
90540-12009 |
US $7.35 |
||
|
17805E
|
17805E
90389-09016 Collar(For Intake Air Connector)[08.1989 - 08.1995] 1RZ,2RZE..RZH10#,11# |
90389-09016 |
US $4.66 |
||
|
17880
|
17880
17880-75010 Hose Assy, Air Cleaner[08.1989 - 07.1990] 2RZE..RZH103,109,113,115,119 |
17880-75010 |
US $72.65 |
||
| replacements | |||||
|
17880
|
17880
17341-75030 Hose, No.1(For Idle-Up)[08.1989 - 07.1990] 2RZE..RZH103,109,113,115,119 |
17341-75030 |
US $17.56 |
||
|
17880
|
17880
17880-75011 Hose Assy, Air Cleaner[08.1989 - 07.1990] 2RZE..RZH103,109,113,115,119 |
17880-75011 |
US $64.41 |
||
|
17880
|
17880
90339-09003 Plug(For Vacuum Hose Union)[08.1989 - 07.1990] 2RZE..RZH103,109,113,115,119 |
90339-09003 |
US $3.76 |
||
|
17880
|
17880
17880-75011 Hose Assy, Air Cleaner[07.1990 - 08.1995] 2RZE..RZH103,109,113,115,119 |
17880-75011 |
US $64.41 |
||
|
17881
|
17881
17881-75010 Hose, Air Cleaner, No.1[08.1989 - 08.1994] 1RZ,2RZE..RZH10#,11# |
17881-75010 |
US $48.57 |
||
|
17881
|
17881
17881-75020 Hose, Air Cleaner, No.1[08.1994 - 08.1995] 1RZ,2RZE..RZH10#,11# |
17881-75020 |
US $33.49 |
||
|
17881A
|
17881A
90460-80001
Clamp, Hose
[08.1994 - 08.1995] 1RZ,2RZE..RZH10#,11# PIPE SIDE |
90460-80001 |
— | ||
| replacement | |||||
|
17881A
|
17881A
90460-80006 Clamp, Hose[08.1994 - 08.1995] 1RZ,2RZE..RZH10#,11# PIPE SIDE |
90460-80006 |
from US $8.33 |
||
|
17881A
|
17881A
96111-10850 Clamp, Hose(For Air Connector)[05.1995 - 08.1995] 1RZ,2RZE..RZH10#,11# AIR CLEANER SIDE |
96111-10850 |
from US $4.10 |
||
|
17881A
|
17881A
96111-10880 Clamp(For Air Intake Rubber Seal)[08.1989 - 02.1993] 1RZ,2RZE..RZH10#,11# CONNECTOR SIDE |
96111-10880 |
from US $8.79 |
||
|
17881A
|
17881A
96111-10900 Clamp, Hose[08.1989 - 08.1993] 1RZ,2RZE..RZH10#,11# AIR CLEANER SIDE |
96111-10900 |
from US $1.19 |
||
|
17882
|
17882
17882-75021 Hose, Air Cleaner, No.2[08.1994 - 08.1995] 1RZ..RZH102 CONNECTOR SIDE; 2RZE..RZH103,109,11# |
17882-75021 |
US $55.47 |
||
|
17885
|
17885
17885-75020 Pipe, Air Cleaner[08.1994 - 08.1995] 1RZ,2RZE..RZH10#,11# |
17885-75020 |
US $38.44 |
||
|
17885A
|
17885A
96111-10850 Clamp, Hose(For Air Connector)[08.1994 - 05.1995] 1RZ,2RZE..RZH10#,11# |
96111-10850 |
from US $4.10 |
||
|
9011908171
|
9011908171
90119-08171
New Genuine Part
|
90119-08171 |
— | ||
| replacement | |||||
|
9011908171
|
9011908171
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9011908815
|
9011908815
90119-08815 Bolt |
90119-08815 |
US $2.69 |
||
|
9017908026
|
9017908026
90179-08026 Nut (For Front Wiper Arm Setting) |
90179-08026 |
US $1.43 |
||
|
9611110780
|
9611110780
96111-10780 Clamp, Hose(For Air Connector) |
96111-10780 |
from US $3.53 |
||
