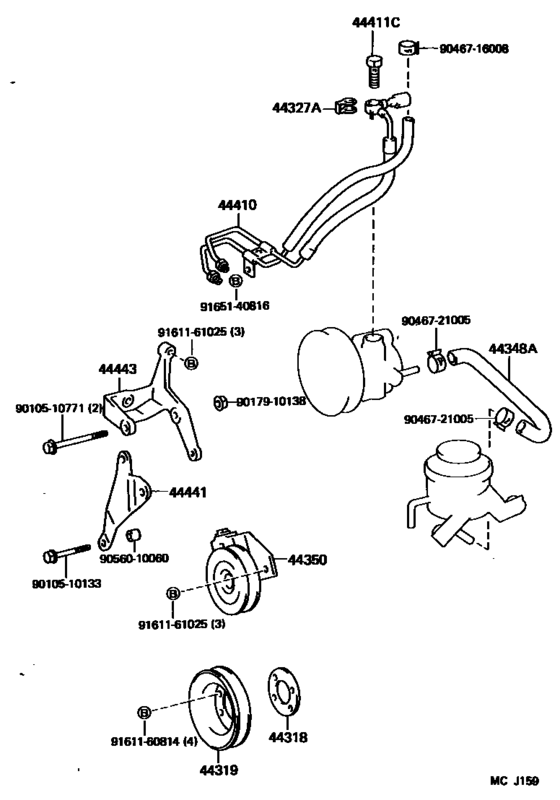

Power Steering Tube ([08.1989 - ] (8908- )RZH109,119) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- RZH119
- grade
- DX
- body
- V
- ENGINE
- 2RZE
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44318
|
44318
44318-26020 Spacer, Vane Pump Drive Pulley[08.1989 - 08.1995] RZH10#,11# |
44318-26020 |
US $6.99 |
||
|
44319
|
44319
44319-26020 Pulley, Vane Pump Drive[08.1989 - 08.1995] RZH10#,11# |
44319-26020 |
US $38.36 |
||
|
44327A
|
44327A
44327-26020 Gasket, Pressure Port, No.1[08.1989 - 02.1990] RZH10#,11# |
44327-26020 |
from US $2.46 |
||
|
44348A
|
44348A
44348-26080 Hose, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [08.1989 - 08.1995] RZH109,119 |
44348-26080 |
US $36.84 |
||
|
44350
|
44350
44350-26010 Pulley Assy, Power Steering Idle[08.1989 - 08.1995] RZH10#,11# |
44350-26010 |
from US $262.57 |
||
|
44410
|
44410
44410-26230
Tube Assy, Pressure Feed
[08.1989 - 08.1993] RZH109,119 |
44410-26230 |
— | ||
|
44410
|
44410
44410-26231
Tube Assy, Pressure Feed
[08.1993 - 08.1995] RZH109,119 |
44410-26231 |
— | ||
|
44411C
|
44411C
90401-16014 Bolt, Union(For Pressure Feed Tube)[08.1989 - 02.1990] RZH10#,11# *16-1.5PX31-15 |
90401-16014 |
from US $12.01 |
||
|
44441
|
44441
44441-26010 Bracket, Pump, Front[08.1989 - 08.1995] RZH10#,11# |
44441-26010 |
US $26.79 |
||
|
44443
|
44443
44443-26030 Bracket, Pump[08.1989 - 10.1989] RZH10#,11# |
44443-26030 |
US $84.45 |
||
| replacements | |||||
|
44443
|
44443
44443-26031 Bracket, Pump[08.1989 - 10.1989] RZH10#,11# |
44443-26031 |
US $63.48 |
||
|
44443
|
44443
90105-10133 Bolt(For Alternator)[08.1989 - 10.1989] RZH10#,11# |
90105-10133 |
US $5.53 |
||
|
44443
|
44443
44443-26031 Bracket, Pump[10.1989 - 08.1995] RZH10#,11# |
44443-26031 |
US $63.48 |
||
|
9010510133
|
9010510133
90105-10133 Bolt(For Alternator) |
90105-10133 |
US $5.53 |
||
|
9010510771
|
9010510771
90105-10771
New Genuine Part
|
90105-10771 |
— | ||
|
9017910138
|
9017910138
90179-10138 New Genuine Part |
90179-10138 |
US $2.04 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046721005
|
9046721005
90467-21005
Clip(For Suction Hose No.1)
|
90467-21005 |
— | ||
| replacement | |||||
|
9046721005
|
9046721005
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9056010060
|
9056010060
90560-10060 New Genuine Part |
90560-10060 |
US $9.17 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
